Product Details
Product Name Brass Wire Mesh Material Brass Wire
Standard ASTM Hole Shape Square, Rectangle.
Mesh Counts 2 To 200mesh Weaving Type Plain Weave, Twill Weave, Dutch Weave.
Width 0.5-2 M Length 10-50 M
Properties Have Better Abrasion And Corrosion Resistance, Better Tensile Strength, Lower Electricity And Heat Conductivity Compared With Copper Mesh Cloth Usages Widely Used In Sieving And Filtering Granule, Powder, Porcelain Clay And Glass, Chinaware Printing, Grain, Filtering Liquid And Gas, Also Used As Decorative Mesh.
Highlight

abrasion corrosion resistance woven brass mesh

,

filtering liquid woven brass mesh

,

square hole metal woven wire mesh
Leave a Message
Product Description

Brass Mesh Cloth For Filtering Liquid And Gas Square Hole Good Abrasion Corrosion Resistance



Brass Woven Wire Mesh Introduction:



Brass mesh cloth is made of brass wire. The material of brass wire could be divided into 65 brass, 70 brass and 80 brass. Warp and weft wires normally have the same diameter. Brass mesh and brass wire cloth have better abrasion and corrosion resistance, better tensile strength, lower electricity and heat conductivity compared with copper mesh cloth. They are widely used in sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas, also used as decorative mesh.



Specifications

Material:
65 brass (65% copper and 35% zinc).
70 brass (70% copper and 30% zinc).
80 brass (80% copper and 20% zinc).
Weaving type: plain weave, twill weave, dutch weave.
Width of brass mesh/cloth: 0.5-2 m (can be customized).
Length of brass mesh/cloth: 10-50 m (can be customized).
Hole shape: square, rectangle.
Color: golden.



Brass mesh and brass wire cloth specification
Mesh/inch Wire diameter Opening Open area
mm inch mm
2 2.03 0.8 10.67 70
2 1.8 0.072 10.9 73
2 1.6 0.063 11.1 76
3 1.6 0.063 6.87 65
4 1.194 0.047 5.16 66
5 0.91 0.035 4.17 67
8 0.711 0.028 2.46 60
6 0.8 0.032 3.43 66
6 0.711 0.028 3.52 69
8 0.61 0.024 2.57 65
8 0.559 0.022 2.62 68
10 0.635 0.025 1.9 56
10 0.559 0.022 1.98 61
10 0.508 0.02 2.03 64
12 0.584 0.023 1.47 52
12 0.457 0.018 1.66 61
14 0.5 0.02 1.31 52
14 0.457 0.018 1.36 56
14 0.417 0.016 1.4 59
16 0.457 0.018 1.12 50
16 0.345 0.014 1.24 61
16 0.315 0.012 1.27 64
18 0.45 0.018 0.96 46
18 0.432 0.017 0.97 48
18 0.315 0.012 1.1 60
20 0.315 0.012 0.96 56
20 0.247 0.011 0.88 61
22 0.315 0.012 0.84 53
24 0.315 0.012 0.74 49
26 0.295 0.012 0.68 49
28 0.295 0.012 0.61 45
20 0.407 0.016 0.86 46
30 0.305 0.012 0.53 40
30 0.247 0.011 0.57 49
30 0.234 0.009 0.61 52
32 0.254 0.01 0.54 46
34 0.234 0.009 0.51 47
36 0.234 0.009 0.47 45
38 0.213 0.008 0.46 46
40 0.254 0.01 0.38 36
40 0.193 0.008 0.44 48
40 0.152 0.006 0.46 58
42 0.193 0.008 0.41 46
44 0.173 0.007 0.4 49
46 0.173 0.007 0.38 47
48 0.173 0.007 0.38 47
50 0.23 0.009 0.28 30
50 0.173 0.007 0.34 43
50 0.132 0.005 0.38 55
60 × 50 0.193 0.008 - -
60 × 50 0.173 0.007 - -
60 0.19 0.008 0.23 30
60 0.173 0.007 0.25 35
60 0.122 0.005 1.3 83
70 0.132 0.005 0.23 40
70 0.112 0.004 0.25 48
80 0.14 0.006 0.18 31
80 0.122 0.005 0.2 38
80 0.102 0.004 0.22 46
90 0.112 0.004 0.17 36
90 0.091 0.004 0.19 46
100 0.114 0.005 0.14 30
100 0.102 0.004 0.15 36
100 0.091 0.004 0.16 41
120 × 108 0.091 0.004 - -
120 0.081 0.003 0.13 38
120 0.071 0.003 0.14 44
140 0.071 0.003 0.11 37
140 0.061 0.002 0.12 44
150 0.061 0.002 0.11 41
160 0.061 0.002 0.1 38
180 0.061 0.002 0.08 32
180 0.051 0.002 0.09 41
200 0.051 0.002 0.08 36
Mesh size and wire diameter can be customized according to special needs.


Other specifications according to your requirements.

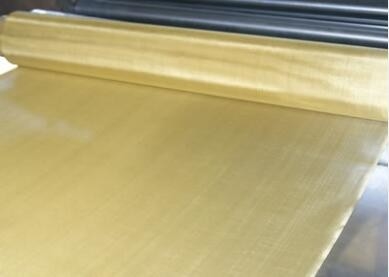

Filtering Liquid And Gas Woven Brass Mesh Square Hole Abrasion Corrosion Resistance 0

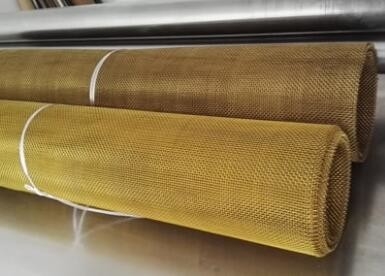

Filtering Liquid And Gas Woven Brass Mesh Square Hole Abrasion Corrosion Resistance 1





Features of Brass Wire Mesh:

Abrasion, corrosion, high temperature and spark resistance.
Acid, alkali resistance.
Durable, good ductility, tensile strength.
Allowing light, air, liquid to pass.
Discolor due to atmospheric condition.
Not suitable for salt water application.
Clean and install easily.
Brass mesh has lower electricity and heat conductivity but better abrasion and corrosion resistance, better tensile strength compared with copper mesh cloth.


Application of brass mesh:


Decorative mesh for lamps, cabinets and entertainment centers.
Plumbing screen, filter discs, fireplace screen, window and porch screen.
Sculpture, craft, BBQ grill.
Filter in food, mine, paper making, machine, pharmaceutical, chemical, metallurgy, industry, electricity, commercial and so on.
Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.



Packing:



Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Filtering Liquid And Gas Woven Brass Mesh Square Hole Abrasion Corrosion Resistance 2
