3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative

  • 3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative
  • 3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative
  • 3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Ratio Reasonable, Flat Surface, Strong Wear Resistance And Firm Structure. Product Name Single Intermediate Crimped Wire Mesh
Standard AISI, ASTM, DIN Material Stainless Steel Wire, Carbon Iron Wire, Etc
Type Single Intermediate Crimped Hole Sapes Square, Rectangular
Technique Weaving After Crimping Width 1m, 1.2m, 2m Or Customized
Length 30m Or Customized Application Vibrating Architecture Decorative
High Light

ss306 crimped mesh

,

single intermediate crimped mesh

,

vibrating architecture decorative crimped wire mesh
Leave a Message
Product Description

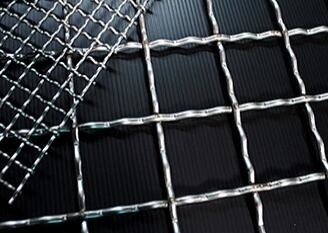

3Mesh Single Intermediate Crimped Wire Mesh for Vibrating Architecture Decorative



Intermediate Crimped Wire Mesh



Crimped wire mesh, which we manufacture and supply, is worldwide used for their quality, performance and durability. Hence, we are one of the leading Crimped Wire Mesh Manufacturers in India. Crimped wire mesh is made in a variety of material that includes low and high carbon steel, galvanized steel, spring steel, mild steel, stainless steel, copper, brass and other non ferrous metals, through crimping mesh machine, a kind of universal wire product with accurate & consistent Square & Rectangular openings.



The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven. 3×3 mesh single intermediate crimped wire mesh including 3 openings per inch. Using 0.8-3.0mm diameter wire, by single intermediate crimped weaving, woven 3 mesh opening for 5-7mm solid particles. This wire diameter and mesh with ratio reasonable, flat surface, strong wear resistance and firm structure.



Crimped wire mesh,is made of carbon iron wire,galvanized wire,stainless steel wire or copper wires. All the wires are crimped prior by mold,then weave them together. The variety of materials,wire diameters and weave patterns make this kind wire mesh products can be used in many industries.





Specifications:



Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.



3Mesh Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
3.0 0.1181 5.466 0.2152 41.68
2.6 0.1023 5.866 0.2309 48.01
2.3 0.0905 6.166 0.2427 53.04
2.0 0.0787 6.466 0.2545 58.33
1.8 0.0708 6.666 0.2624 62.00
1.6 0.0629 6.866 0.2703 65.77
1.4 0.0551 7.066 0.2782 69.66
1.2 0.0472 7.266 0.2860 73.66
1.0 0.0393 7.466 0.2939 77.77
0.8 0.0314 7.666 0.3018 81.99



Other Specifications according to your requirements.



Weave Patterns:

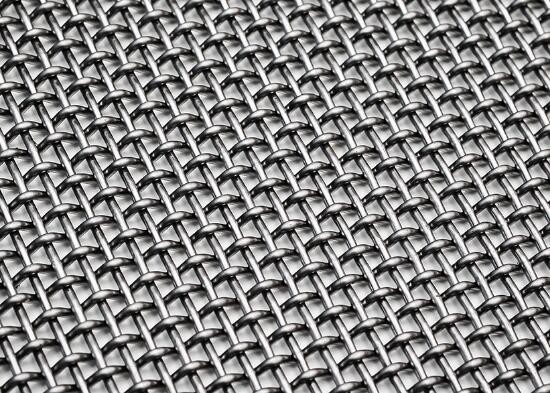

3Mesh Single Intermediate Crimped Wire Mesh for Vibrating, Architecture, Decorative



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



3Mesh Single Intermediate Crimped Wire Mesh for Vibrating, Architecture, Decorative

3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative 2



Features:


Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.



Usage:



Vibrating Screens
Architecture
Decorative grill
Cabinetry/mill work
Windows



Packing: Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



3 Mesh Single Intermediate Crimped Mesh For Vibrating Architecture Decorative 3

Tags:

SS304 Stainless Steel Crimped Wire Mesh

1m Stainless Steel Crimped Wire Mesh

Plain crimped woven wire mesh
