Double 1mm Stainless Steel Crimped Wire Mesh Square Opening Screen

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features The Diameter And Mesh With Ratio Reasonable, Flat Surface, Strong Wear Resistance And Firm Structure Product Name Square Opening Screen Stainless Steel Crimped Wire Mesh
Material Stainless Steel Wire, Carbon Iron Wire, Etc Type Pre Crimped Lock Crimped Double Crimped
Hole Sapes Square, Rectangular Wire 1mm To 6mm
Hole 3 To 50mm Width 1 To 4m
Length 30m Or Customized Application Construction Industries, Cement Industry, Petroleum, Minerals, Pharmaceuticals, Chemical Industries, Rubber Industries, Etc
High Light

1mm stainless steel crimped wire mesh

,

double stainless steel crimped wire mesh

,

1mm double crimped wire mesh

Leave a Message
Product Description

Pre Crimped Lock Crimped Double Crimped Square Opening Screen Stainless Steel Crimped Wire Mesh



Crimped wire mesh



Crimped wire mesh, which we manufacture and supply, is worldwide used for their quality, performance and durability. Hence, we are one of the leading Crimped Wire Mesh Manufacturers in India. Crimped wire mesh is made in a variety of material that includes low and high carbon steel, galvanized steel, spring steel, mild steel, stainless steel, copper, brass and other non ferrous metals, through crimping mesh machine, a kind of universal wire product with accurate & consistent Square & Rectangular openings.



1) Pre Crimped Wire Mesh

Wire mesh made with pre-crimped wire can be made with extra roll length for special uses. This kind of extra wide crimped mesh is mostly woven of stainless steel wire materials. Our range of pre-crimped wire cloth is consisted of accurate openings and is woven much tighter than the normal weave. It is usually ideal for vibrating screens and many other applications where sizing becomes significant. Crimped mesh is made in the opening forms of square mesh or rectangular mesh. Rectangular opening crimped mesh refers normally to heavy type crimped mesh for mining, coal plant or pig breeding which require big loading capacity.



2) Lock Crimped Wire Mesh

It is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings. Our crimped wire mesh products are made of galvanized wire mesh and stainless steel wire mesh. According to loading capacity and wire used, it can be separated into heavy type and light type. Screening in mine and coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food.





3) Double Crimped Wire Mesh

Double Crimped Wire Mesh is made by carbon iron wire, galvanized steel wire or stainless steel wire. Weaving Patterns: Weaving after crimping General Use: Screening in mine, coal factory, construction and other industries. Used for floor gratings, poultry protection, green houses, concrete reinforcement, building construction, paving, concrete pipes, pre cast components.



Specifications:


Opening Sizes: from 5mm to 100mm.

Wire Diameters: from 0.5mm to 8.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.



Wire Diameter/Opening Φ Φ Φ Φ Φ Φ Φ Φ
1.2 1.5 1.9 2.5 3 4 5 6
10 mm openings
12 mm openings
15 mm openings
18 mm openings
20 mm openings
25 mm openings
30 mm openings
40 mm openings
50 mm openings


Other Specifications according to your requirements.

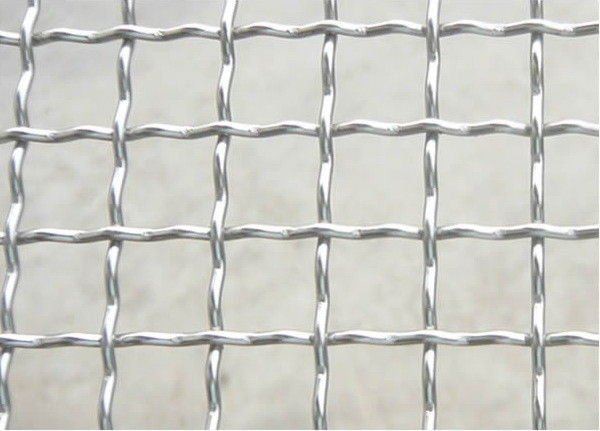

Double 1mm Stainless Steel Crimped Wire Mesh Square Opening Screen 0



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Features:

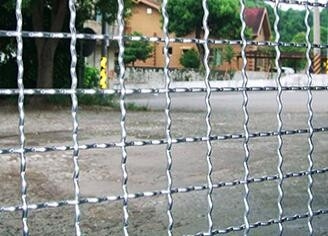

This wire mesh is similar to normal wire mesh but they have an additional feature of high rigidity, which makes it different and more usable. It can be used as a fence to partition specific area. It can also be used a guards for trees, machines and electrical equipments.



Usage:



Heavy Duty crimped wire mesh are mostly used in construction industries, cement industry, petroleum, minerals, pharmaceuticals, chemical industries, rubber industries, automobile industries, Industrial uses – filtering, sizing, grading, separating, shifting, Domestic uses- grid window, verandas, partitions, counter shelves, rack, lift, cages, guards, trays, and many more. Of all the Crimped Wire Mesh Manufacturers in India, we are the most sought after in the domain.



Packing:

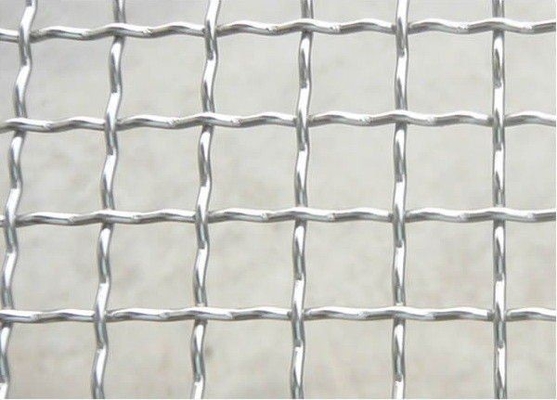

Double 1mm Stainless Steel Crimped Wire Mesh Square Opening Screen 1

Double 1mm Stainless Steel Crimped Wire Mesh Square Opening Screen 2
