High Carbon Steel Crimped Wire Mesh Quarry Screen 1.37mm To 12.7mm Diameter

  • High Carbon Steel Crimped Wire Mesh Quarry Screen 1.37mm To 12.7mm Diameter
  • High Carbon Steel Crimped Wire Mesh Quarry Screen 1.37mm To 12.7mm Diameter
  • High Carbon Steel Crimped Wire Mesh Quarry Screen 1.37mm To 12.7mm Diameter
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100Pcs
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 3 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Excellent Wear Resistance, Sturdy Mesh Construction, Longer Functional Life Product Name Quarry Screen Crimped Wire Mesh
Material High Carbon Steel Processing Method Locked Weave, Bi-directional Plain Weave, Single Wave Weave, Two-way Wave Weaving, Rectangular Opening Weaving
Weaving Patterns Weaving After Crimping Opening 2mm To 100mm
Wire Diameter 1.37mm-12.7mm Width 1m To 4m
Length 15m To 60m Applications Most Used For Mining Screen Mesh, Quarry Mesh Screen, Vibrating Screen
Highlight

high carbon steel crimped wire mesh

,

quarry screen steel crimped wire mesh

,

12.7mm diameter crimped wire cloth
Leave a Message
Product Description

High Carbon Steel Quarry Screen 1.37mm To 12.7mm Diameter Wire Crimped Wire Mesh



Quarry crimped wire mesh


Crimped Wire Mesh is most used for mining screen mesh, quarry mesh screen, vibrating Screen. And 65Mn wire mesh is the best material.

Material: High carbon steel 65Mn,45#,50#,55#,60#,70#,72A
Wire diameter: 1.37mm-12.7mm
Aperture/Opening: 2mm to 100mm,tolerance +-3%



Our products perfectly matched with various kinds of vibrating screens including international brands. More precise, More service life, More rust proof are our quality standards.



SS304, SS316 stainless steel crimped mesh has the feature of high temperature resisting, acid resisting, alkali resisting, corrosion resisting, etc. It is widely used for mining, coal plants, construction, petrochemical industry, machinery, etc.



Crimped Wire Mesh is made by galvanized steel wire ,high carbon steel, 65Mn wires, galvanized steel wire , stainless steel wire, copper steel wires and other metal wires.

Weaving Patterns: weaving after crimping.

Processing method: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.

General Use: Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.



Specifications:



Wire Gauge (SWG) Wire Diameter (mm) Mesh/ Inch Aperture (mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5
18 1.2 5 4 3.6
19 1 6 3.2 3
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2


Other Specifications according to your requirements.





Weave Patterns: Locked weave, Bi-directional plain weave, single wave weave, two-way wave weaving, rectangular opening weaving.

SS, Al, Cu, Ni Intermediate Crimped Wire Mesh, 5-100mm Opening, 0.6-5.8mm Wire



Material: High carbon steel 65Mn,45#,50#,55#,60#,70#,72A



NO Grade Chemical Composition%
C Si Mn
1 45# 0.42-0.50 0.17-0.37 0.50-0.80
2 50# 0.47-0.55
3 55# 0.52-0.60
4 60# 0.57-0.65
5 65# 0.62-0.70
6 70# 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60



Features:


Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.



Usage:



Heavy Screening & Sieving Of Coal Mines.
Stone Quarry Works
Wire Mesh For Pig Breeding
Coal Mine
Cement Plant
The Cement Factory Petroleum
Glass Factory
Hardware Products.

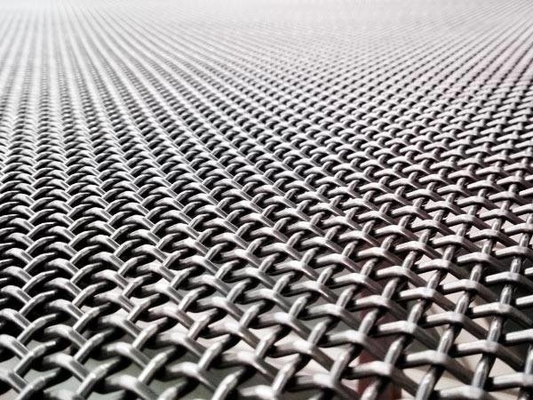

Quarry crimped wire mesh

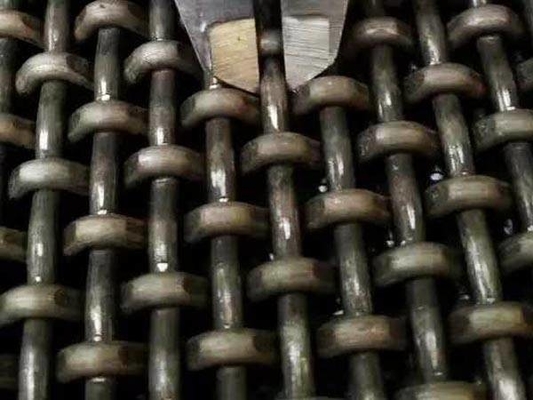

Mining crimped wire mesh

Packing:



Crimped wire mesh is packed in rolls, wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
