10% Zinc 0.17mm Copper Insect Screen For Windows And Doors

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Features Fit Salt Water Environments. Product Name Copper Insect Screen
Material Copper Wire Brass Material 90% Copper And 10% Zinc Wire.
Hole Shape Square Wire Diameter 0.17mm - 0.4mm
Mesh Counts 14, 16, 18, 22, Etc Width 24", 30", 36", 48", 60", 72", Etc.
Length 25', 50', 100', Etc. Application Window Screens, Door Screens
High Light

0.17mm copper insect screen


windows square hole copper insect screen


10% zinc copper fly screen mesh

Leave a Message
Product Description

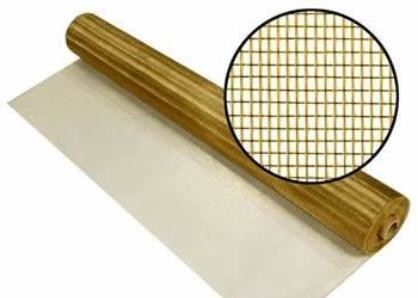

Copper Insect Screen For Windows and Doors Metal Woven Wire Mesh


Copper Insect Screen


Commercial pure copper screening can resist atmospheric corrosion, salt and brine. In many situations, copper will slowly darken along with time variation. Screens exposed to salt sprays often turn green, which may effect the overall aesthetics.


Copper insect screen also called bronze insect screen is made of 90% copper and 10% zinc wire. With great strength and durability, copper insect screen is stronger than the pure copper, and the element of zinc can resist abrasion. This copper window screen weathers to a beautiful dark bronze finish. It has high resistance to acids, corrosion and also to insects, so it is widely used in the doors or windows against insects, and in the costal areas and inland areas.Copper insect screen will give your home a aesthetic appearance.

Weaving methods: plain weave, twill weave



Material: 90% copper and 10% zinc wire.
Wire Diameter: 0.17mm-0.4mm.
Weaving: Plain weaving.
Mesh size: 14 mesh × 14 mesh, 16 mesh × 16 mesh, 16 mesh × 14 mesh, 18 mesh × 18 mesh, 18 mesh × 14 mesh, 20 mesh × 20 mesh, 22 mesh × 22 mesh, etc.
Width: 24", 30", 36", 48", 60", 72", etc.
Length: 25', 50', 100', etc.


Mesh Wire Dia. Opening(mm)
SWG mm inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 30 0.315 0.0124 0.743

Other specifications according to your requirements.




Light weight.
Easy to clean and wash.
Copper has high resistance to acid and corrosion.
Zinc can resist abrasion.
Stronger than pure copper, making the screen with great strength and durability.
Fit salt water environments.
Tarnish but not corrode.

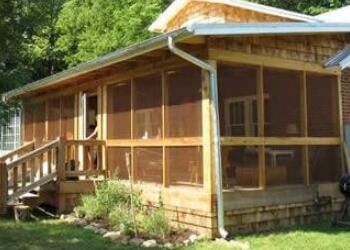

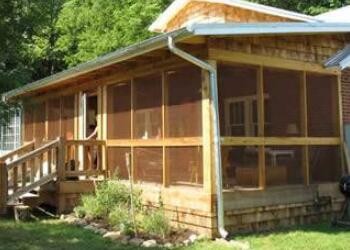

Copper insect screen can resist the insects, so it is widely used as window screens, door screens, screen porches and enclosures in the residences, hotels, villas and other places. Benefit from the anti-corrosion and salt air, copper insect screen can be used in the costal areas or inland areas.


10% Zinc 0.17mm Copper Insect Screen For Windows And Doors 0
10% Zinc 0.17mm Copper Insect Screen For Windows And Doors 1



Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.


10% Zinc 0.17mm Copper Insect Screen For Windows And Doors 2


Please look at following drawing, we need material, wire diameter(D), opening(L), width x length and quantity to offer an exact quote.
