1 Mesh 1m To 4.8mm Stainless Steel Crimped Wire Mesh

  • 1 Mesh 1m To 4.8mm Stainless Steel Crimped Wire Mesh
  • 1 Mesh 1m To 4.8mm Stainless Steel Crimped Wire Mesh
  • 1 Mesh 1m To 4.8mm Stainless Steel Crimped Wire Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2 rolls
Price According to order quantity can be negotiable
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Nmae Crimped Wire Mesh Material Stainless Steel
Standard ASTM Technique Pre-Crimped Then Woven
Mesh Count 1 Mesh Per Inch Wire Diameter 1mm To 4.8mm
Width To 4.0m Length 15m, 20m, 30m, 60m, 90m, Etc
Advantage Strong Wear Resistance And Firm Structure Application Ety Screen, Etc
Highlight

1m Stainless Steel Crimped Wire Mesh

,

4.8mm Stainless Steel Crimped Wire Mesh

,

1 Mesh
Leave a Message
Product Description

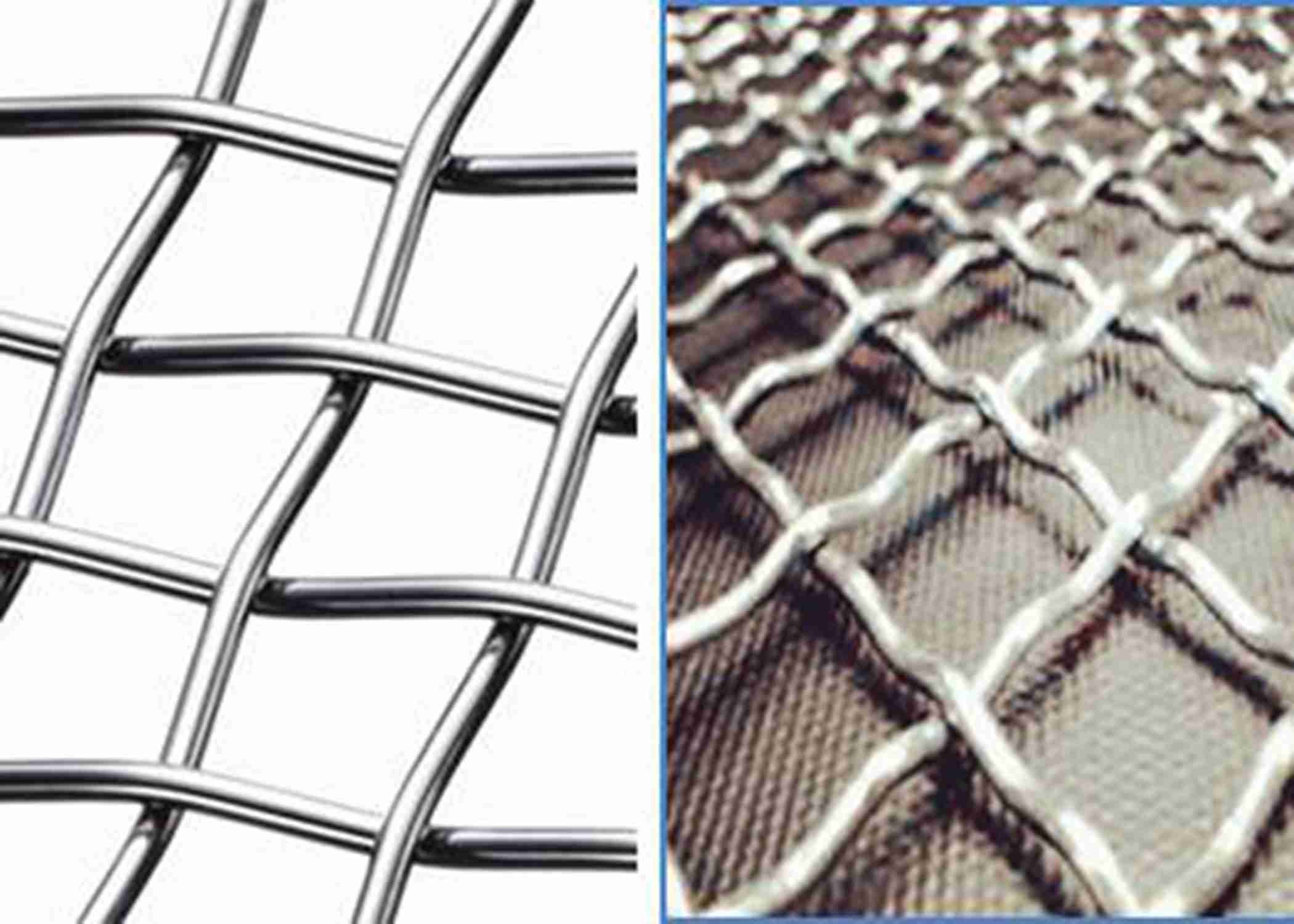

1 Mesh Crimped 1m To 4.8mm Wire Square Hole Stainless Steel Crimped Wire Mesh



1 mesh Crimped Wire Mesh Introduction:



Intermediate crimped can be divided into single intermediate crimped and double intermediate crimped. It provides stability of weave when larger openings and lighter wire are used. Helps maintain opening sizes. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven.



1 mesh crimped wire mesh including 1 wires and openings of 1 inch Using 1.6 to 4.8mm diameter wire, by plain crimped weaving, woven 1 mesh opening for 20-23mm solid particles. This wire diameter and mesh with ratio reasonable,flat surface, strong wear resistance and firm structure.





Specifications:



Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.



1Mesh Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
4.8 0.1889 20.6 0.8110 65.77
4.5 0.1771 20.9 0.8228 67.70
4.0 0.1574 21.4 0.8425 70.98
3.7 0.1456 21.7 0.8543 72.98
3.4 0.1338 22.0 0.8661 75.02
3.0 0.1181 22.4 0.8818 77.77
2.6 0.1023 22.8 0.8976 80.57
2.3 0.0905 23.1 0.9094 82.70
2.0 0.0787 23.4 0.9212 84.87
1.8 0.0708 23.6 0.9291 86.32
1.6 0.0629 23.8 0.9370 87.79



Other Specifications according to your requirements.



1 Mesh Single Intermediate Crimped Wire Mesh, 1.6-4.8mm Wire, SS, Au, Al

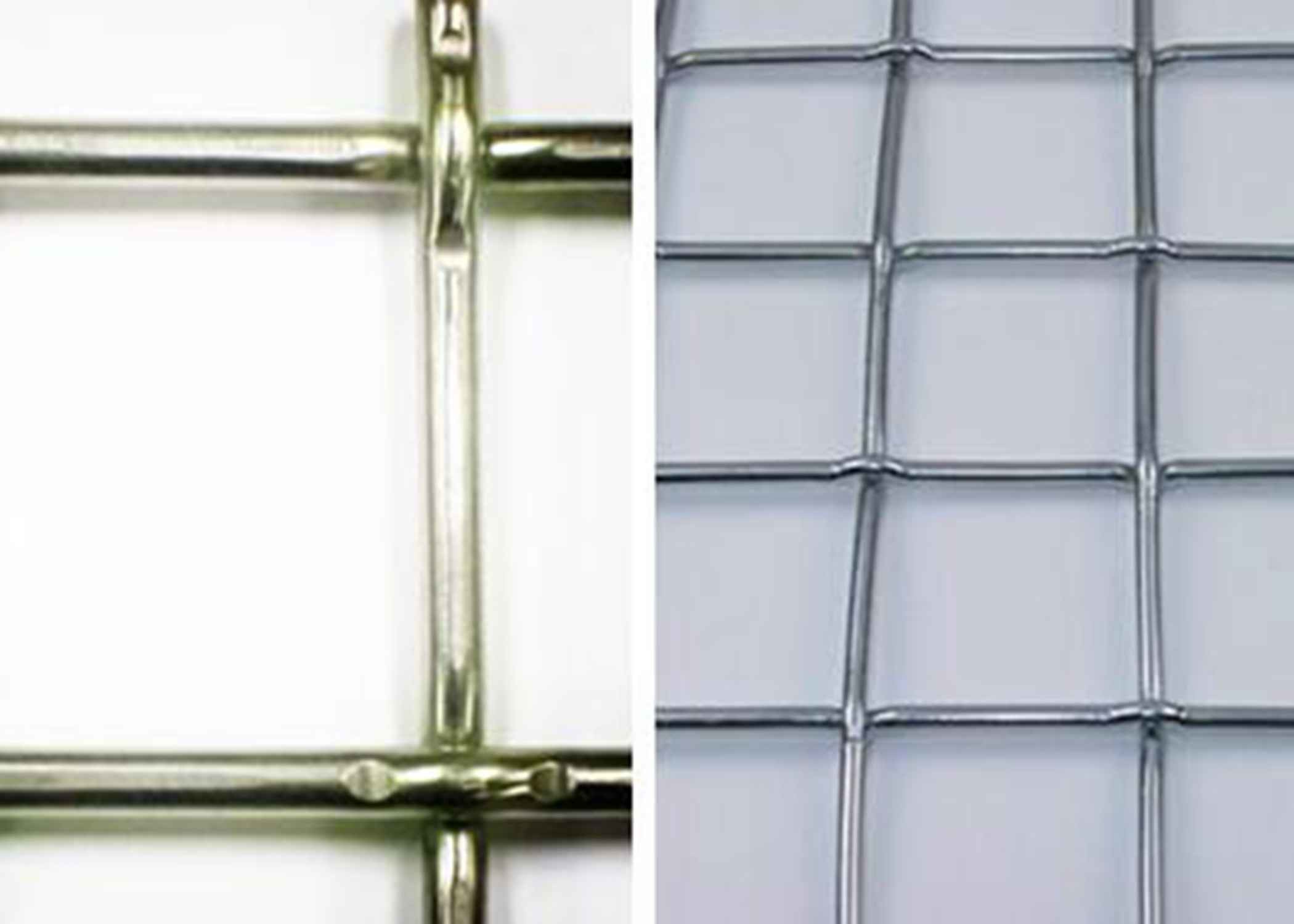

Weave Patterns:



1 Mesh Single Intermediate Crimped Wire Mesh, 1.6-4.8mm Wire, SS, Au, Al



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Features:


Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.



Usage:



Machine guards
Vibrating Screens
Architecture
Decorative grill
ety screen



Packing:



1 Mesh 1m To 4.8mm Stainless Steel Crimped Wire Mesh 2
