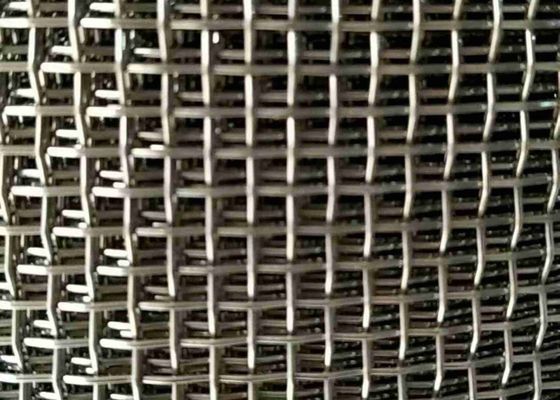

0.5 To 8mm Stainless Steel Crimped Wire Mesh 1 To 20 Mesh Bright Silver

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features The Diameter And Mesh With Ratio Reasonable, Flat Surface, Strong Wear Resistance And Firm Structure Product Name Metal Crimped Wire Mesh
Material Stainless Steel Wire, Carbon Iron Wire, Etc Type Plain Crimped Weave
Hole Sapes Square, Rectangular Technique Weaving After Crimping
Mesh Counts 1 To 20 Width 1 To 4m
Length 30m Or Customized Application Machine Guards, Vibrating Screens, Architecture, Decorative Grill, Safety Screen, Etc
High Light

8mm Stainless Steel Crimped Wire Mesh

,

0.5mm Stainless Steel Crimped Wire Mesh

,

20 Mesh metal mesh screen

Leave a Message
Product Description

Plain Crimped Type Bright Silver Stainless Steel Crimped Wire Mesh



Plain Crimped Wire Mesh Introduction



Plain crimped wire mesh/screen is produced in plain crimped weave, opening is square or rectangular hole. The wire mesh is manufactured by weaving machines, both of the warp wire and weft wire are mildly crimped by weaving process before the wire mesh is woven.



Plain crimped weave is the most commonly type of pre-crimped weave, it is a simple style of crimping in which warp wire and weft wire intersect at every crimps or corrugations. This type of crimped weave is mainly with lighter wires to ensure tension in a light screen.





Specifications:


Opening Sizes: from 5mm to 100mm.

Wire Diameters: from 0.5mm to 8.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.



Nearest Former Current Metric Approx Open Area
Imperial Specification Mesh Available
Mesh SWG Nominal Wire Dia.
Aperture mm mm %
1 10 22.25 3.15 77
3/4 12 16.5 2.5 75
1.6 10 12.88 3 66
2 16 11.1 1.6 76
2 14 10.7 2 71
2 12 10.2 2.5 65
3 16 6.87 1.6 66
3 14 6.47 2 58
4 18 5.15 1.2 66
4 16 4.75 1.6 56
5 16 3.48 1.6 47
6 20 3.33 0.9 60
6 18 3.03 1.2 51
6 16 2.63 1.6 39

Other Specifications according to your requirements.

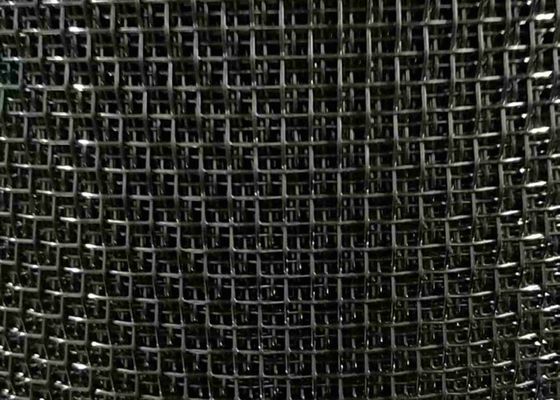

0.5 To 8mm Stainless Steel Crimped Wire Mesh 1 To 20 Mesh Bright Silver 0



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Plain Crimped Techniques:



Stainless Steel Plain Crimped Wire Mesh/Screen 5mm to 100mm Hole



Features:


Pre-crimped wire mesh has high rigidity and strength;
More accurate and consistent opening sizes;
Strong wear resistance and firm structure.



Usage:


Architectural & decorative industries, for the screen of cupboard, fireplace, fence and ceiling.
Agricultural & food industries, for barbecue grills and pig raising screens.
Mining & aggregate industries, for vibrating machine
Automobile industries, for car grilles.
Petrochemical & chemical industries, for test sieve.



Packing:



0.5 To 8mm Stainless Steel Crimped Wire Mesh 1 To 20 Mesh Bright Silver 2
