AISI Stainless Steel Crimped Wire Mesh 1.5mm To 6mm , ASTM Galvanized Steel Mesh Screen

Place of Origin Hengshui,China
Brand Name QIANPU
Minimum Order Quantity 10roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden cases or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wide Variety Of Type For Your Choice Product Name Metal Crimped Wire Mesh
Standard AISI, ASTM, DIN Material Stainless Steel Wire, Carbon Iron Wire, Etc
Type Plain Crimped Weave Hole Sapes Square, Rectangular
Technique Weaving After Crimping Width 1m, 1.2m, 2m Or Customized
Length 30m Or Customized Application Screening In Mine, Coal Factory, Construction And Other Industries.
High Light

AISI Stainless Steel Crimped Wire Mesh

,

1.5mm Stainless Steel Crimped Wire Mesh

,

ASTM Galvanized Steel Mesh Screen

Leave a Message
Product Description

Crimped Wire Mesh Made By Carbon Iron Wire Galvanized Steel Wire Stainless Steel Wire

Introduction:



Pre-crimped wire mesh is made of wire diameters ranging from 1.5mm to 6 mm. It can be used for windows, partitions, roasting of meat and flour sieving or mine screens.



In the pre-crimping process, the wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires. This insures that the wires are locked firmly together at the intersections. The pre-crimped wires are then assembled in custom designed screen assembly machines (looms).



When the open area is important, extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.



Due to the crimping process, the mesh have very accurate and consistent openings and are woven after crimping. It is typically preferred for vibrating screens and many other applications where sizing is critical.



Weaving Patterns: Weaving after crimping.



Common Crimped Mesh Specifications:



Wire Gauge (SWG ) Wire diameter (mm) Mesh holes / inch Aperture (mm) Weight(kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5

2



Some crimped with detailed specs:



*Stainless Steel 304 Crimped Wire Mesh
Material: Stainless Steel 304
Processing: Pre-crimped weave
Application: Screening mesh rolls
Mesh: 1inch x 1 inch, 50x50mmx3.5mm
Roll size: 1x30m



*Crimped Stainless Steel Mesh Grill for Barbecue

Woven crimped grilles mesh
Material: SS 430 grade
Framed size: 300mm
Appliction: Food / BBQ grills



*Wire Mesh SS304, Heavy Crimped
Stainless steel wire mesh with heavy crimp
Material: 304 stainless steel
Mesh: 30mmx30mmx3mm
Roll size: 2m x 25m L



*Stainless Steel Crimped Mesh Wire for Baking
Crimped mesh wire:
Material: Stainless steel
Mesh 30x15 x 1mm
Mesh 30x15x 1.5mm
Hole: Rectangular
Application: For baking, barbecure, etc.



*Black Iron Crimped Wire Mesh
Material: Black iron wire, non galvanized
Processing: Weaving
Application: Mining screen panels

Black wire mesh 24x24mm, woven of iron wire 4mm: square hole screen cloth for coal mine screen.
Other popular sizes:
Mesh: 30x30mm
Wire dia.:4mm
Hole type: Square mesh
Mesh: 40x40mm
Wire dia.:5mm
Hole type: Square mesh
Mesh size range: from 2x2 mm to 100x100 mm
Wire diameter range: from 2 mm to 12 mm
Wire mesh panel width: 2000 mm



*Pre-Crimped Monel Screen Mesh
Made of high tensile steel wire for vibrating crimped wire mesh production
Used in Mining & Crusher Plant Screen.
Material: Wire mesh, monel
Mesh per inch: 5 mesh
Wire diameter: 18 BWG
Type: Netting
Hole shape: square
Roll size: 3 feet x 100feet



*Quarry Screen Wire Mesh, 304 SS
304 grade stainless woven wire mesh with crimp
Mesh per inch: 10x10
Wire diameter: 0.0236 inch / 0.6 mm
Type: Crimped and woven netting
Hole shape: square
Finish: Bright steel
Roll size: 3 ft wide x 10 ft
Other sizes: Thickness 1.6mm with 11.2 mm aperture

Crimped Wire Mesh, 304 and 316 Grade, in Gauge 19, 20, 22, 30BWG
Crimped wire mesh, wire diameter 0.30mm (30 BWG), square opening 0.50mm (30 Mesh).
Crimped wire mesh, wire diameter 0.70mm (22 BWG), square opening 1.60 mm (11 Mesh).
Crimped wire mesh, wire diameter 0.90mm (20 BWG), square opening 4.20mm (5 Mesh).
Crimped wire mesh, wire diameter 0.10mm (19 BWG), square opening 3.20mm (6 Mesh).



*Manganese Steel Crimped Mesh

Material: Manganese steel
Processing: Pre-crimp weave
Application: Vibrating mine screen panels
Mesh: 2inch x 2inch



*Electro Galvanised Steel Crimped Wire Mesh
Pre-crimped mesh
Material: Galvanised steel
Mesh: 20mm x 20mm x 1mm
Sheets size 280mm x 560mm
Processing: Galvanised after weave



Pre- crimped woven wire mesh is available in:


Intercrimp
Lock crimp
Plain weave
Flat top woven styles



Materials:



Carbon steel
Galvanized steel
Stainless wire mesh
Aluminum
Copper
Brass



Stainless wire mesh is especially useful because it is extremely chemical resistant, works with hot or cold liquids, and is easily cleaned. Aluminum mesh is lightweight, strong, has a high electrical conductivity, and a low melting point. Aluminum mesh also significantly resists atmospheric corrosion. Carbon steel and galvanized wire mesh are strong, economical, and readily available. Other exotic materials such as copper and nickel can also be woven into wire mesh.

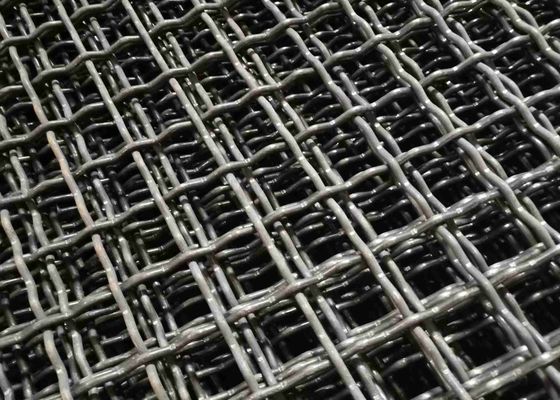

AISI Stainless Steel Crimped Wire Mesh 1.5mm To 6mm , ASTM Galvanized Steel Mesh Screen 0

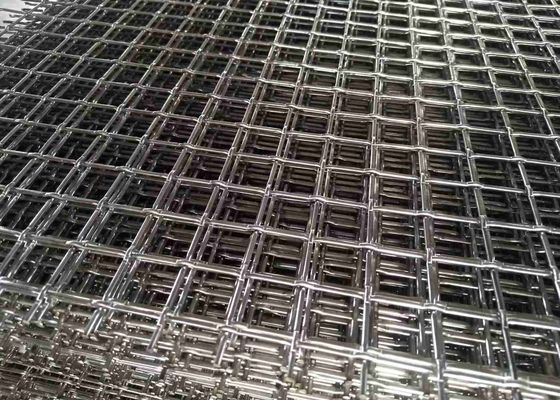

AISI Stainless Steel Crimped Wire Mesh 1.5mm To 6mm , ASTM Galvanized Steel Mesh Screen 1


Applications:



Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications. From fencing to machine guarding, Direct Metals has the woven wire mesh for your application. Examples of common applications include:

  • Woven wire mesh baskets
  • Woven wire mesh architectural grilles
  • Woven wire mesh display shelves and stands
  • Woven wire mesh racks
  • Woven wire mesh liquid filtration
  • Woven wire mesh air filtration
  • Woven wire mesh wall reinforcement
  • Woven wire mesh handrail panel inserts

Heavier woven wires must be pre-crimped. The material remains stable and rigid after the crimping process. Pre-crimped woven wire mesh is ideal for both industrial & architectural applications.





Packing:



AISI Stainless Steel Crimped Wire Mesh 1.5mm To 6mm , ASTM Galvanized Steel Mesh Screen 2
