1.8mm 304 Stainless Steel Mesh 5mm To 30mm Machine Guards

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2 rolls
Price Negotiable
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Payment Terms T/T, Western Union, L/C
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainess Steel Crimped Wire Mesh Material Stainless Steel
Standard ISO9001: 2015 Technique Crimped
Color Bright Silver Woven Type Plain Weave
Wire Diameter 1.8mm, 2.0mm, 2.5mm, 3.0mm, 3.2mm, 3.5mm Opening Size 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
Advantage Rust Resistance, Etc Application Machine Guards, Security Guards
High Light

1.8mm 304 Stainless Steel Mesh

,

5mm 304 stainless steel mesh

,

30mm metal mesh net

Leave a Message
Product Description

5mm to 30mm Aperture Used as Machine Guards Stainless Steel Crimped Wire Mesh



Stainless Steel Crimped Wire Mesh for Guarding



There's a lot dangers on any industrial or construction work site. With so many workers moving around the various machines and tools, it can be difficult to remain careful at all times. But it's important to maintain a safe work site and ensure the protection of your machines.



Crimped mesh play a important role in machine guards or heavy equipment protection by keeping people safe from moving parts or flying debris. It is the foundation of the machines guards. If an accident were to happen, you should know that the crimped mesh panels are strong enough to keep both people and machinery safe.



Woven Wire Machine Guard Panels are a simple, effective way to protect employees and equipment from the dangers of automated equipment and running conveyors; to create barriers in plants and warehouses to control traffic; to segment off security areas, and a variety of other applications. The Physical Barrier is always on duty, unaffected by power outages or electrical problems.



Wire Materials:



stainless steel wire, brass wire, high carbon steel wire, galvanized iron wire, galvanized steel wire, non-ferrous metal wire, etc.



Specifications:



Wire Diameter Aperture Open Area Rate
mm Inch mm Inch %
2.3 0.091 8.0 0.315 60.33
2.0 0.079 8.0 0.315 64.00
1.8 0.071 10.0 0.394 71.82
1.6 0.063 10.0 0.394 74.32
2.0 0.079 20.0 0.787 82.64
1.8 0.071 20.0 0.787 84.17
2.6 0.102 25.40 1.000 82.29
2.3 0.091 25.40 1.000 84.08

Othere Specifications according to your requirements.

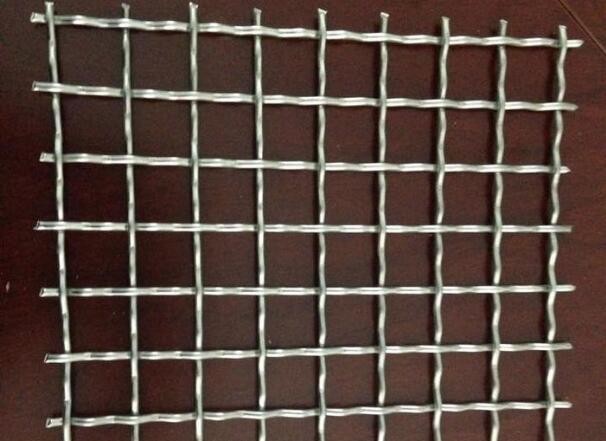

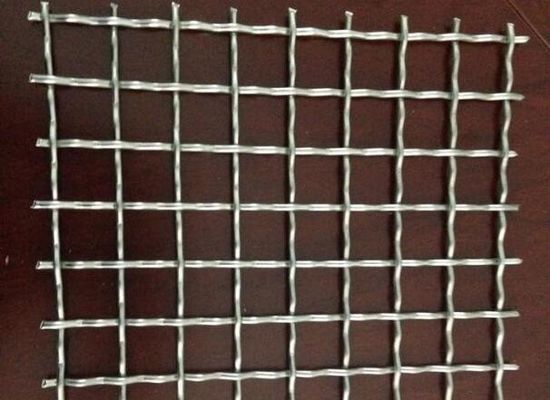

2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards



Weaving Patterns: Plain Weave, Plain Crimped



2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards 2.0-3.5mm Wire 5-30mm Aperture, Crimped Wire Mesh Used as Machine Guards



Features:



Provide maximum protection;
Be a permanent part of the machine without weakening the structure;
Be strong enough to withstand normal wear and tear;
Be easily repairable;
Be fire and corrosion resistant.



Application:



Machine guards, separated for protecting.

They are typically used for areas where machine visibility is required. Where the crimped mesh is protecting machinery which can become hot, the mesh also have the advantage of not restricting air movement and therefore allowing for full ventilation.



1.8mm 304 Stainless Steel Mesh 5mm To 30mm Machine Guards 3





Packing:



1.8mm 304 Stainless Steel Mesh 5mm To 30mm Machine Guards 4
