3mm To 6mm Stainless Steel Wire Screen Single Intermediate SS316

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 3 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Intercrimped Assure The Proper Locking Of The Warp And Weft Wires Product Name Single Intermediate Crimped Wire Mesh
Material Stainless Steel Crimped Type Single Intermediate Crimped
Surface Bright Silver Opening 3mm To 6mm
Wire Diameter 0.6mm To 3.0mm Width 1m, 1.22m, 1.5m To 4m.
Length 15m, 30m, 60m To 90m. Applications Vibrating Screens, Etc
High Light

6mm Stainless Steel Wire Screen

,

3mm stainless steel wire screen

,

SS316 stainless wire mesh screen

Leave a Message
Product Description

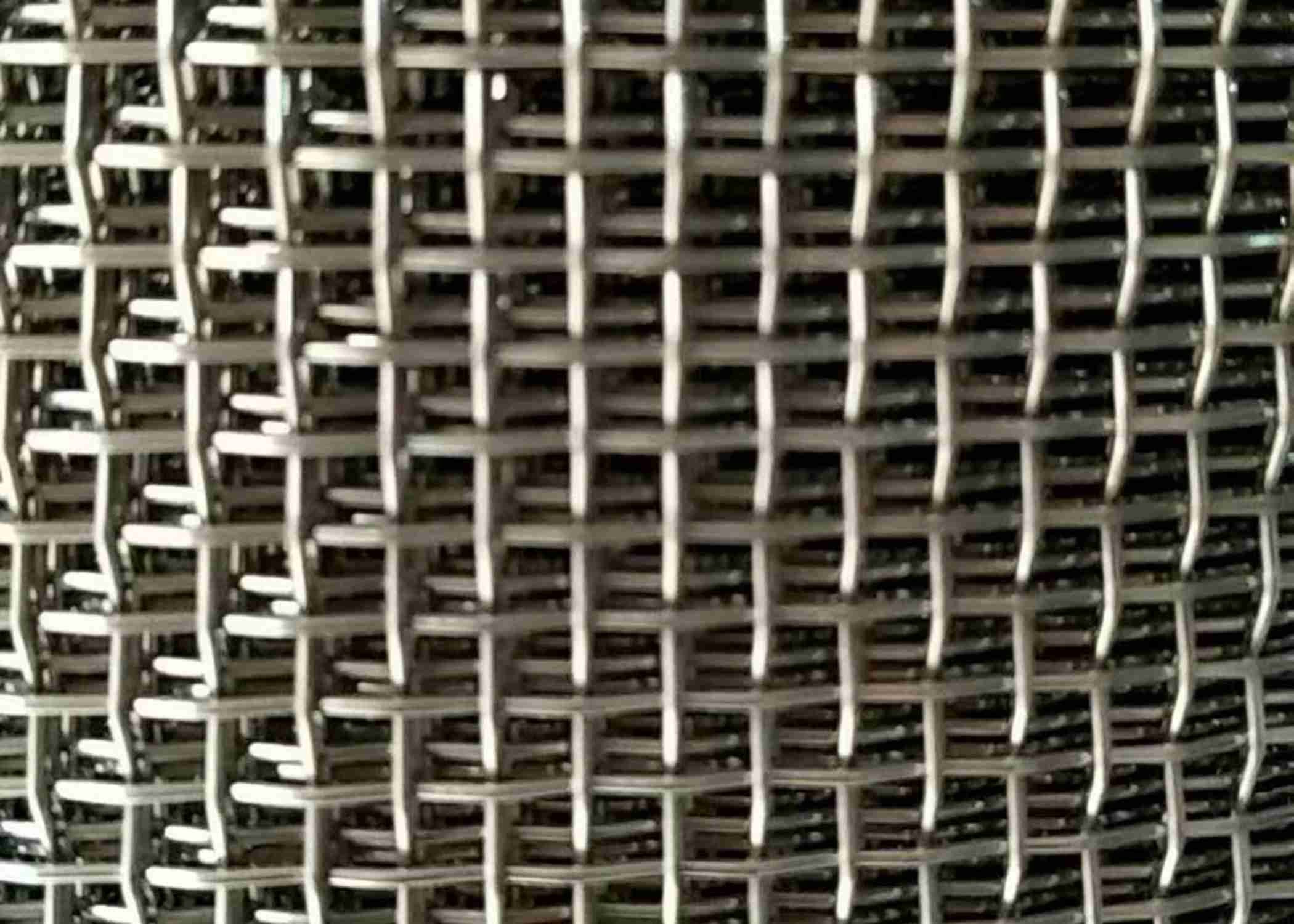

Single Intermediate Crimped Bright Silver SS Stainless Steel Crimped Wire Mesh



Intermediate Crimped Wire Mesh



“Intermediate crimp” or simply “intercrimp” describes the popular crimp type that is used when woven wire mesh is manufactured. With intercrimp, both the warp wires (the wires that run the length of the roll) and shute wires (wires that run the width of the roll) are pre-crimped before the mesh is woven. Intermediate crimp is usually employed in coarser meshes to obtain large openings with relatively light wires. The hallmark of an intermediate crimp is the corrugations in the wire, which adds to the stability of the mesh. As a rule, the larger the opening size, the more number of crimps. The single intermediate crimped means the weft wire is pre-crimped and the warp wire is directly woven.



Specifications:



Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m, 60m to 90m.



Single Intermediate Crimped Mesh
Wire Diameter Opening Open Area Rate
mm Inch mm Inch %
3.0 0.1181 3.35 0.1318 27.83
2.6 0.1023 3.75 0.1476 34.87
2.3 0.0905 4.05 0.1594 40.67
2.0 0.0787 4.35 0.1712 46.92
1.8 0.0708 4.55 0.1791 51.34
1.6 0.0629 4.75 0.1870 55.95
1.4 0.0551 4.95 0.1948 60.76
1.2 0.0472 5.15 0.2027 65.77
1.0 0.0393 5.35 0.2106 70.98
0.8 0.0314 5.55 0.2185 76.39
0.7 0.0275 5.65 0.2224 79.16
0.6 0.0236 5.75 0.2263 81.99



Other Specifications according to your requirements.



SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire



Weave Patterns:



SS, Cu, Al Material Single Intermediate Crimped Wire Mesh, 4Mesh 0.6-3mm Wire



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



3mm To 6mm Stainless Steel Wire Screen Single Intermediate SS316 2

Features:


Intercrimped assure the proper locking of the warp and weft wires;
Superior rigidity and greater stability;
Strong wear resistance and firm structure.



Usage:



Vibrating Screens
Architecture
Decorative grill
Cabinetry/mill work
Drainage





Packing:

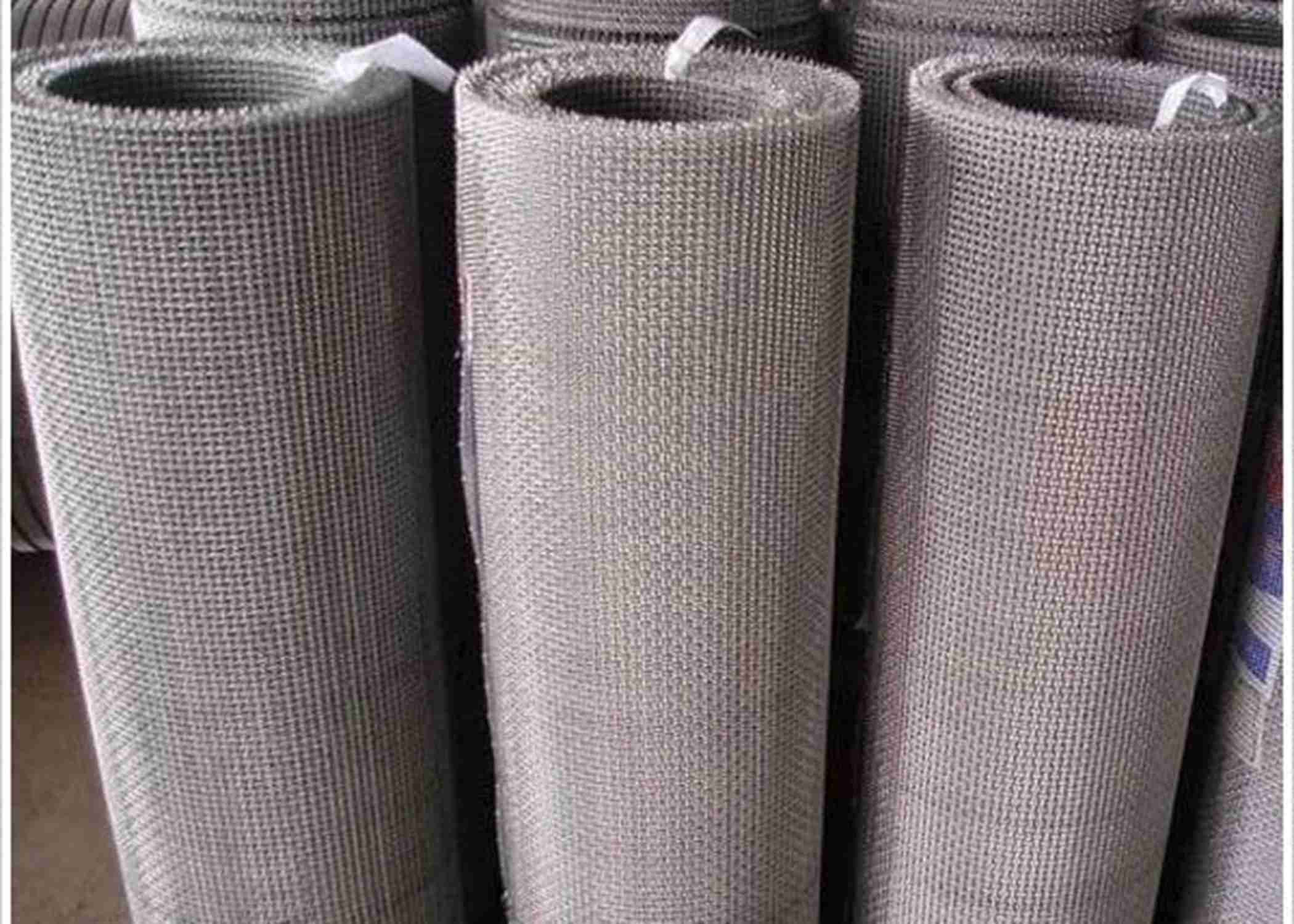

Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



3mm To 6mm Stainless Steel Wire Screen Single Intermediate SS316 3
