4-60mm Opening 1.6-5mm Stainless Steel Crimped Wire Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100Pcs
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 3 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flat Surface, Accurate Openings, High Rigidity And Strength, Strong Wear Resistance, Firm Structure Product Name Flat Top Crimped Wire Mesh
Material Stainless Steel Crimped Type Flat Top Crimped
Surface Bright Silver Opening 4mm, 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm
Wire Diameter 4mm, 6mm, 8mm, 10mm, 12mm, 15mm, 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm Width 0.5m To 4m
Length 1m To 60m Applications Architectural, Decorative, Food, Mining & Aggregate Industries
High Light

5mm Stainless Steel Crimped Wire Mesh

,

1.6mm Stainless Steel Crimped Wire Mesh

,

Ss306 Steel Crimped Wire Mesh

Leave a Message
Product Description

Flat Top Crimped 4-60mm Opening 1.6-5mm Wire Stainless Steel Crimped Wire Mesh



Flat Top Crimped Wire Mesh Introduction:



Flat top crimped wire mesh, smooth top wire screen, previously crimped wire screen panels, vibrating screen mesh sheets.



Flat top crimped, also called pressed crimped, is made from round and profiled plain weave wire. All the mesh knuckles is being on the underside. The structure is very heavy and durable. The smooth surface is the characteristic of the weaving method. This structure can allow the materials to move more freely over the screen.



Flat top crimped wire mesh is also know as smooth top wire screen. The wire mesh is produced on looms as screen panels, both of the warp wire and weft wire are previously crimped before weaving. Flat top crimped wire mesh is commonly used in the architectural and mining industries.



The flat top crimped weave is a improved crimp style, its wire is same to lock crimped weave, the difference is all of its crimps or corrugations is offset to the bottom side of screen, producing a smooth and flat top surface, there is no projections on top to avoid wearing.



It is widely used in the architectural & decorative industries, for the screen of fence, facade and ceiling; In the agricultural & food industries, for pig raising screens; In the mining & aggregate industries,vibrating machine.



Specifications:


Opening Sizes: from 4mm to 60mm.

Wire Diameters: from 1.6mm to 5.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.



Flat Top Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
4.0 0.157 1.6 0.063 51.02
6.0 0.236 2.0 0.079 56.25
8.0 0.315 2.0 0.079 64.00
10.0 0.394 2.0 0.079 69.44
1.6 0.063 74.32
12.0 0.472 5.0 0.197 49.83
3.0 0.118 64.00
2.0 0.079 73.47
15.0 0.591 2.5 0.098 73.47
2.0 0.079 77.85
16.0 0.630 4.0 0.157 64.00
3.0 0.118 70.91
20.0 0.787 3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.0 0.157 74.32
3.0 0.118 79.72
30.0 1.181 3.0 0.118 82.64
40.0 1.575 5.0 0.197 79.01
4.0 0.157 82.64
3.0 0.118 86.53
50.0 1.969 5.0 0.197 82.64
4.0 0.157 85.73
3.0 0.118 89.00
60.0 2.362 5.0 0.197 85.21

Other Specifications according to your requirements.



Stainless Steel Flat Top Crimped Wire Mesh, 4-60mm Opening, 1.6-5mm Wire

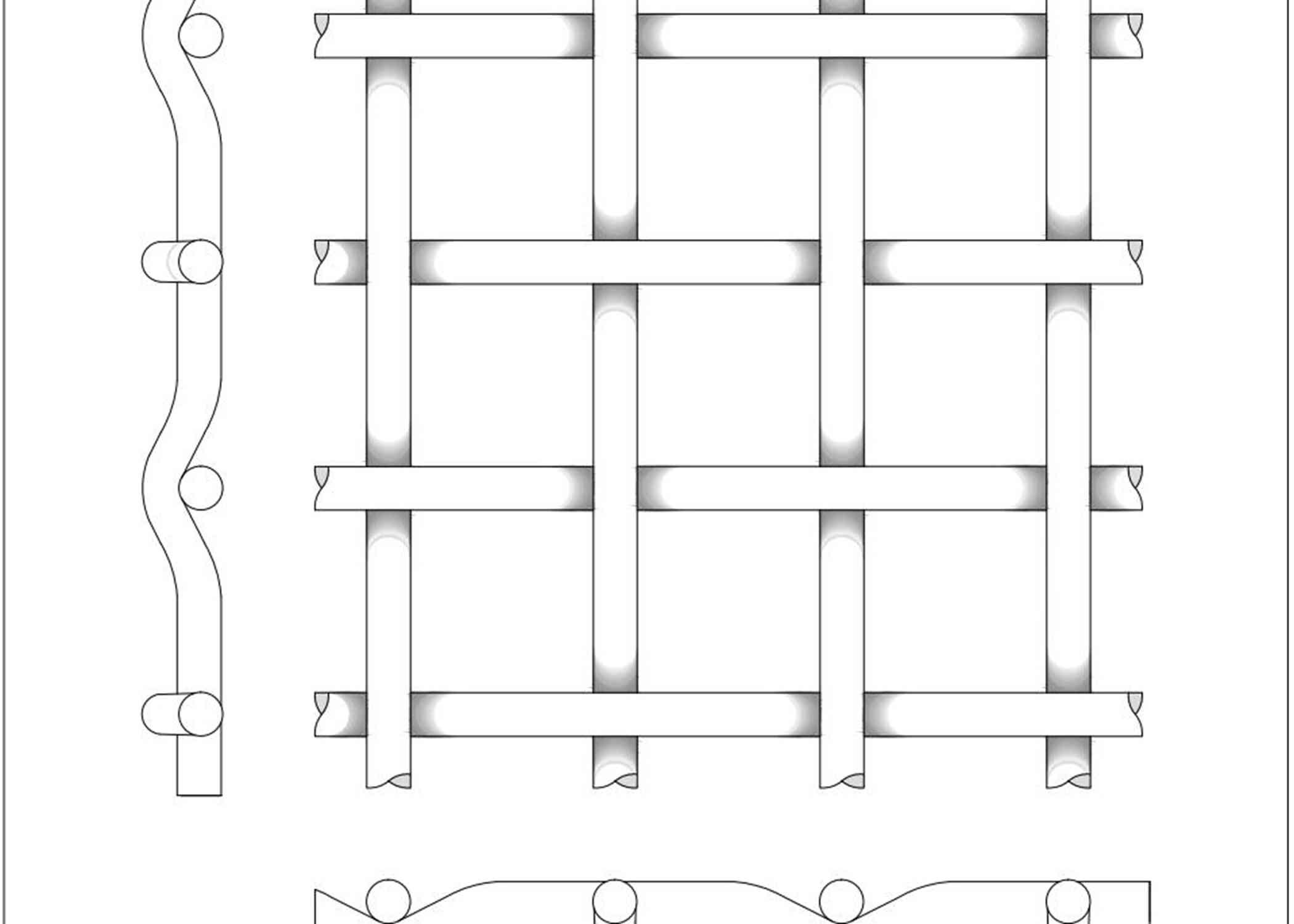

Weave Pattern: Flat-top Curved

4-60mm Opening 1.6-5mm Stainless Steel Crimped Wire Mesh 1



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Features:


Stainless Steel Wire mesh can resist severe circumstances like low/high temperatures, high pressures, acids, alkaline solutions, easily be fabricated with various weaving types in the weaving loom, and also have hygienic characteristics, easily clean ability, can withstand various weather conditions and have a highly aesthetic appeal, highly durable and can withstand severe circumstances over a longer period of time.



Usage:


Fine stainless steel flat top crimped mesh is widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making and so on.

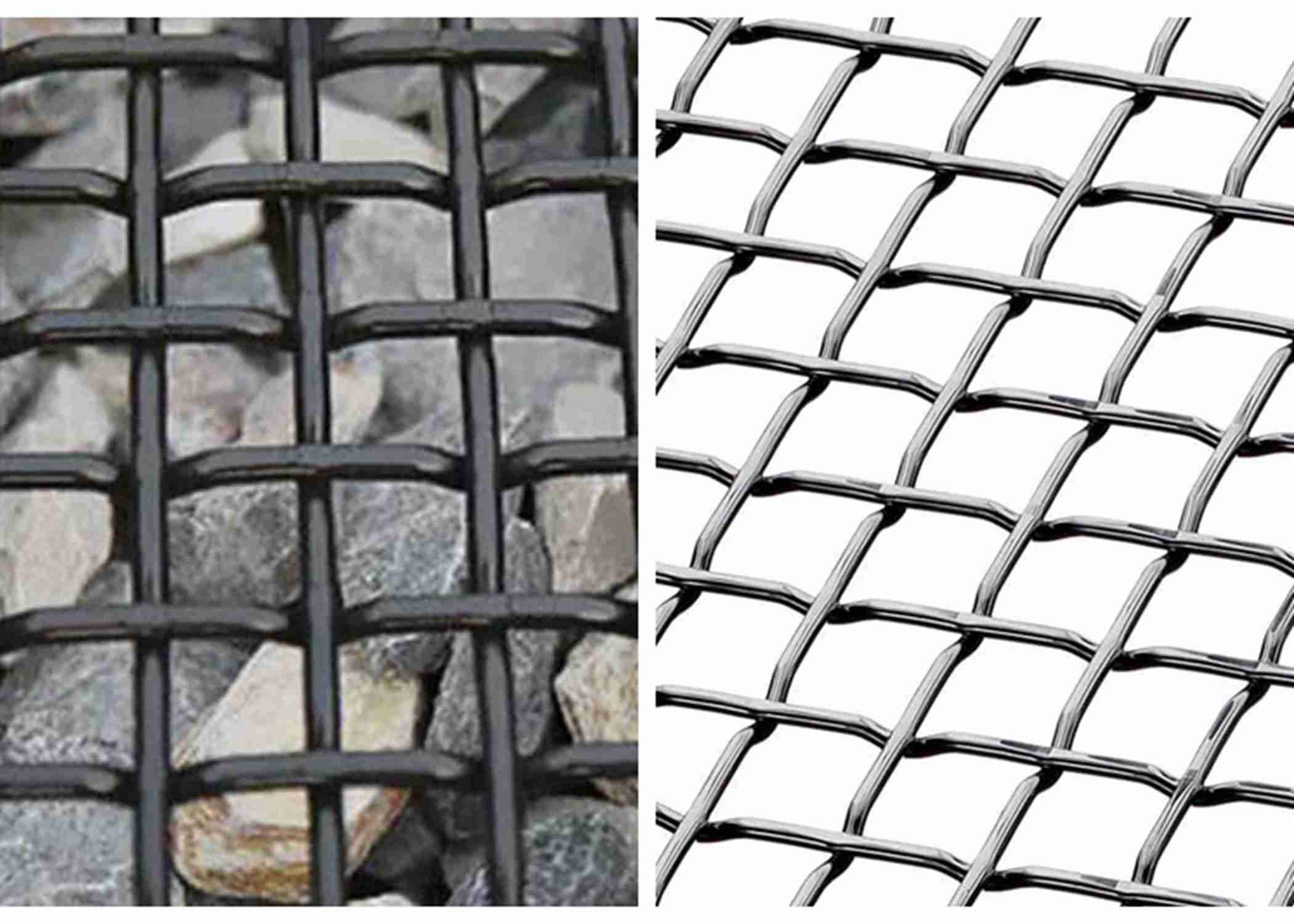

Coarse stainless steel mesh can be widely used in sand, rock, coal, gavel, metal material screening, quarry aggregate, mining industries, road construction industries, asphalt mixing plant and so on.



Packing:



Crimped wire mesh is packed in rolls,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



4-60mm Opening 1.6-5mm Stainless Steel Crimped Wire Mesh 2
