Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Dutch Wire Mesh Material Stainless Steel 304 316
Woven Type Plain Dutch, Twill Dutch, Reverse Dutch Mesh Counts 12 X 64 To 325 X 2300
Width 0.1 To 2m Length 10m 15m 30m Etc
Technique Woven Color Silver
Feature Alkali Resistance Application Filtration Industry
High Light

dutch weave screen mesh

,

plain dutch weave mesh

Leave a Message
Product Description

Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength



1. The mesh size ranges from 12x64 mesh to 325x2300 mesh.



2. Size and shape: roll shape (width 0.9m / 1m / 1,22m / 1.5m / 1.8m / 2m or at you reques), and can be made into square, round and other shapes.



3. Length:10m / 30m or at you request.



4.Packing: waterproof paper inside, plywood case outside.



5. Properties: acid and alkali resistance, high temperature resistance, tensile resistance, wear resistance.



6. Features: Precision mesh structure, uniform corrosion resistance, good durability, no deformation, smooth surface, high temperature resistance, low temperature resistance, high load strength



7. Purpose: Used for sieving and filtering in acid and alkali enviorment





Stainless Steel Dutch Weave Wire Mesh



Weave type
Mesh count
Warp wire in Inches
Shute wire in Inches
Absolute Micron Rating
Nominal Micron Rating
PDW
8X20
0.014
330-350
280
49
PDW
12X64
0.024
270-290
200
84
PDW
14X88
0.02
220-240
150
75
PDW
16X80
0.0196
225-235
140
79
PDW
24X110
0.015
115-125
80
55
PDW
24X128
2X0.010
110-120
75
34
PDW
30X150
0.009
110-112
63
33
PDW
30X150
2X0.009
95-113
60
33
PDW
40X200
0.007
70-75
55
27
PDW
50X250
0.0055
58-63
40
22
PDW
80X400
0.005
40-45
35
17
TDW
30X250
0.01
110-120
53
66
TDW
80X700
0.004
35-40
25
25
TDW
120X400
0.004
50-55
40
15
TDW
165X800
0.0028
25-28
15
14
TDW
200X600
0.0024
30
20
10
TDW
165X1400
0.0028
16-20
10
14
TDW
200X1400
0.0028
12-14
5
15
TDW
325X2300
0.0014
8-9
2
10
TDW
400X2800
0.0008
6-7
1
8

PDW: Plain dutch weave TDW: Twill dutch weave









Stainless Steel Reverse Dutch Weave Mesh



Mesh / Inch
Wire Dia. (mm)
Width (mm)
Length / Roll (m)
72/15
0.45/0.55
97-400
10-20
120/15
0.35/0.45
97-400
10-20
132/17
0.32/0.45
97-400
10-20
150/17
0.3/0.45
97-400
10-20
152/24
0.27/0.4
97-400
10-20
152/30
0.27/0.4
97-400
10-20
170/10
0.27/0.45
97-400
10-20
180/18
0.27/0.45
97-400
10-20
200/40
0.17/0.27
97-400
10-20
260/40
0.15/0.25
97-400
10-20



Application:



It is suitable for filtering of wire drawing machine, film casting machine and film coating machine in Austria, Germany and Japan.

Weaving Method



Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 0



Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 1

Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 2

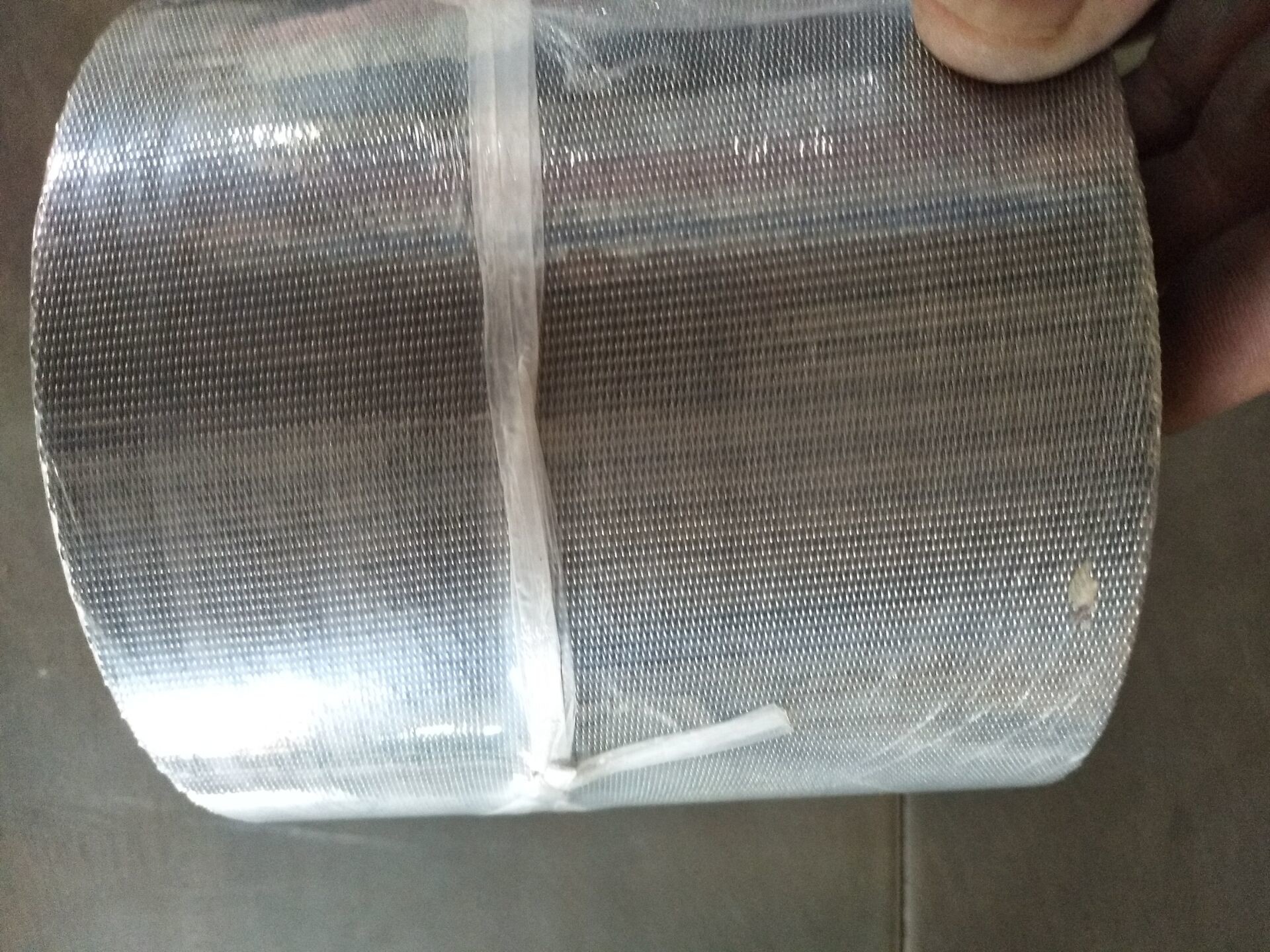

Packing


stainless steel mesh made in small rolls,outside wooden cases.
Corrosion resistance.Main Features

Anti-acid and alkali.
Anti-high temperature.
Good filter performance.
Long using life

Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 3



Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 4

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

Alkali Resistance Reverse Dutch Weave Wire Mesh Stainless Steel Twilled High Load Strength 5

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
