121mm 320×280 Dutch Weave Wire Cloth high level requirement of filtration industrial
Place of Origin | Hengshui,China |
---|---|
Brand Name | QIANPU |
Minimum Order Quantity | 1 roll |
Price | Negotiable according to quantity of order |
Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Good Corrosion Resistance | Product Name | Stainless Steel Dutch Wire Mesh |
---|---|---|---|
Material | Stainless Steel | Mesh Counts | 320 X 280 |
Width | 1.2m,1.5m Or Customized | Length | 30m Or Customized |
Technique | Woven | Color | Bright Silver |
Wire Diameter | 0.0183mm-2.03mm | Application | Filtration |
High Light | dutch weave wire mesh,plain dutch weave mesh |

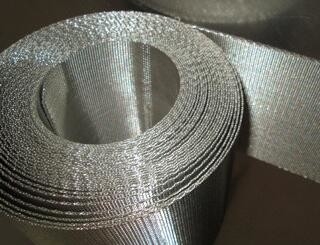

121mm 320×280 Dutch Weave Wire Cloth high level requirement of filtration industrial
Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.
There are two Weave types of reverse dutch weave mesh :
reverse Plain dutch weave mesh it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance
reverse Dutch Weave but Twilled Weave mesh: each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.
Feature of Reverse Dutch Weave Wire Mesh:
Resistant to abrasion
Durability
Sturdiness
Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
High strength, good tensiontoughness and abrasion performance in use.
Application of Reverse Dutch Weave Wire Mesh:
used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.
Woven type | Mesh size | Wire diameter | Opening size |
Plain dutch | 7X40mesh | 0.90X0.71mm | 347μm |
7X44mesh | 0.71X0.63mm | 319μm | |
8X45mesh | 0.80X0.60mm | 310μm | |
8X85mesh | 0.45X0.315mm | 275μm | |
8.5X60mesh | 0.63X0.45mm | 296μm | |
10X76mesh | 0.50X0.355mm | 248μm | |
10X90mesh | 0.45X0.28mm | 275μm | |
12X64mesh | 0.56X0.40mm | 210μm | |
12X86mesh | 0.45X0.315mm | 211μm | |
12.5X76mesh | 0.45X0.355mm | 192μm | |
14X76mesh | 0.45X0.355mm | 173μm | |
14X100mesh | 0.40X0.28mm | 182μm | |
14X110mesh | 0.355X0.25mm | 177μm | |
16X100mesh | 0.40X0.28mm | 160μm | |
16X120mesh | 0.28X0.224mm | 145μm | |
17X120mesh | 0.355X0.224mm | 155μm | |
20X110mesh | 0.355X0.25mm | 126μm | |
20X140mesh | 0.315X0.20mm | 133μm | |
20X170 mesh | 0.25X0.16mm | 130μm | |
22X120 mesh | 0.315X0.224mm | 115μm | |
24X110mesh | 0.355X0.25mm | 97μm | |
25X140 mesh | 0.28X0.20mm | 100μm | |
28X150mesh | 0.28X0.18mm | 92μm | |
30X140 mesh | 0.315X0.20mm | 77μm | |
30X150mesh | 0.25X0.18mm | 82μm | |
35X170mesh | 0.224X0.16mm | 69μm | |
35X190mesh | 0.224X0.14mm | 74μm | |
40X200mesh | 0.18X0.135mm | 63μm | |
45X250mesh | 0.16X0.11mm | 56μm | |
50X250mesh | 0.14X0.112mm | 53μm | |
50X270mesh | 0.14X0.10mm | 50μm | |
50X300mesh | 0.16X0.09mm | 55μm | |
60X270mesh | 0.14X0.10mm | 39μm | |
60X300mesh | 0.14X0.09mm | 41μm | |
60X500mesh | 0.14X0.055mm | 51μm | |
65X390mesh | 0.125X0.071mm | 42μm | |
65X750mesh | 0.10X0.036mm | 36μm | |
70X340mesh | 0.125X0.08mm | 35μm | |
70X350mesh | 0.12X0.08mm | 35μm | |
70X390mesh | 0.112X0.071mm | ||
70X400mesh | 0.12X0.07mm | ||
70X930mesh | 0.10X0.03mm | 30μm | |
77X560mesh | 0.14X0.05mm | 38μm | |
80X350mesh | 0.10X0.086mm | ||
80X400mesh | 0.10X0.07mm | 40μm | |
80X430mesh | 0.125X0.063mm | 32μm | |
80X600mesh | 0.10X0.07mm | 40μm | |
80X700mesh | 0.125X0.04mm | 40μm | |
100X600mesh | 0.10X0.045mm | ||
100X800mesh | 0.10X0.035mm | ||
100X1200mesh | 0.063X0.023mm | 23μm | |
Twill dutch wire mesh | 20X150mesh | 0.45X0.355mm | 101μm |
20X200mesh | 0.355X0.28mm | 118μm | |
20X270mesh | 0.25X0.20mm | 119μm | |
24X300mesh | 0.28X0.18mm | 110μm | |
30X270mesh | 0.28X0.20mm | 77μm | |
30X340mesh | 0.28X0.16mm | 89μm | |
40X430mesh | 0.18X0.125mm | 63μm | |
40X540mesh | 0.18X0.10mm | 70μm | |
50X500mesh | 0.14X0.11mm | 47μm | |
50X600mesh | 0.125X0.09mm | 51μm | |
65X600mesh | 0.14X0.09mm | 36μm | |
70X600mesh | 0.14X0.09mm | 31μm | |
78X680mesh | 0.112X0.08mm | 29μm | |
78X760mesh | 0.112X0.071mm | ||
80X680mesh | 0.112X0.08mm | 28μm | |
90X760mesh | 0.10X0.071mm | 24μm | |
90X850mesh | 0.10X0.063mm | 26μm | |
100X760mesh | 0.10X0.071mm | 20μm | |
100X850mesh | 0.10X0.063mm | 22μm | |
130X1100 mesh | 0.071X0.05mm | 17μm | |
130X1200mesh | 0.071X0.045mm | 18μm | |
130X1500mesh | 0.063X0.036mm | 21μm | |
150X1400mesh | 0.063X0.04mm | 15μm | |
160X1500mesh | 0.063X0.036mm | ||
165X1400mesh | 0.063X0.04mm | ||
165X1500mesh | 0.063X0.036mm | 14μm | |
174X1400mesh | 0.063X0.04mm | 11μm | |
174X1700mesh | 0.063X0.032mm | 13μm | |
203X1500 mesh | 0.056X0.036mm | 9μm | |
203X1600mesh | 0.05X0.032mm | 10μm | |
216X1800mesh | 0.045X0.03mm | ||
250X1600 mesh | 0.05X0.032mm | ||
250X1900mesh | 0.04X0.028mm | 8μm | |
285X2100mesh | 0.05X0.032mm | ||
300X2100mesh | 0.036X0.025mm | 6μm | |
317X2100mesh | 0.036X0.025mm | 5μm | |
325X2300mesh | 0.036X0.024mm | 4μm | |
363X2300mesh | 0.032X0.022mm | ||
400X2700mesh | 0.028X0.02mm | ||
500X3500mesh | 0.025X0.015mm | 3μm |
Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
