End Finish Type Crimped Wire Cloth Galvanized Sleeve Edges Crimped Wire Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2 rolls
Price According to order quantity can be negotiable
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name End Finish Type Crimped Wire Cloth Material Galvanized Steel Wire, Galvanized Stainless
Technique Woven, Crimped Weave Style Plain Crimped, Single Intermediate, Double Intermediate, Lock Crimped, Flat Top Crimped, Slot Hole Crimped
Hole Shape Square Wire Gauge 1-10mm
Width 1.0-4.0m Length 15.0m, 30.0m, 60.0m, 90.0m, Or Customized
Sample Available Mesh Size Range 20
High Light

crimped woven wire mesh

,

crimped wire cloth

Leave a Message
Product Description

End Finish Type Crimped Wire Cloth Galvanized Sleeve Edges Crimped Wire Mesh





1. Materil of crimp wire mesh:



Stinless steel wire(201,202,302,304,304L,310,316,316L)

High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire,black wire.

Galvanized iron wire,galvanized steel wire

Aluminum wire,copper wire,non-ferrous metal wire,Other materials are available on request.



2. Wire Diameter of crimp wire mesh: 0.5mm-20mm, etc.



3. Widths of crimp wire mesh: 0.5m-2.8m, etc.



4. mesh size: 1mm to 10cm



5. Woven Patterns of crimp wire mesh:



crimped before weave

double-direction separate,

ripples flections,

tight lock flections,

flattop flections,

double-direction flections,

list-direction separate ripples flection



Stainless Steel Wire Mesh

Mesh/inch

Wire Diameter
(mm)

Aperture
(mm)



Mesh/inch

Wire diameter
(mm)

Aperture
(mm)

2mesh

1.80

10.90



60mesh

0.15

0.273

3mesh

1.60

6.866



70mesh

0.14

0.223

4mesh

1.20

5.15



80mesh

0.12

0.198

5mesh

0.91

4.17



90mesh

0.11

0.172

6mesh

0.80

3.433



100mesh

0.10

0.154

8mesh

0.60

2.575



120mesh

0.08

0.132

10mesh

0.55

1.990



140mesh

0.07

0.111

12mesh

0.50

1.616



150mesh

0.065

0.104

14mesh

0.45

1.362



160mesh

0.065

0.094

16mesh

0.40

1.188



180mesh

0.053

0.088

18mesh

0.35

1.060



200mesh

0.053

0.074

20mesh

0.30

0.970



250mesh

0.04

0.061

26mesh

0.28

0.696



300mesh

0.035

0.049

30mesh

0.25

0.596



325mesh

0.03

0.048

40mesh

0.21

0.425



350mesh

0.03

0.042

50mesh

0.19

0.318



400mesh

0.025

0.0385

Width of Stainless Steel Wire Mesh: 0.6m-1.5m

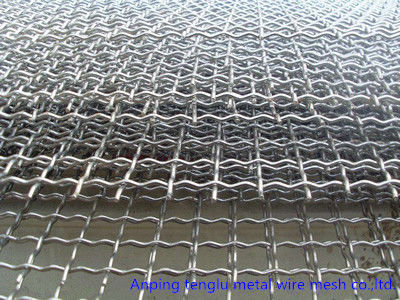

End Finish Type Crimped Wire Cloth Galvanized Sleeve Edges Crimped Wire Mesh 0

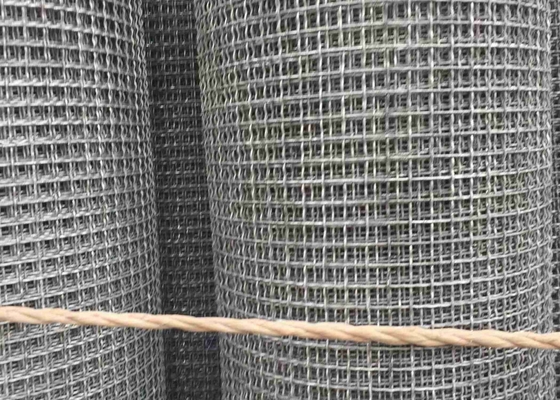

End Finish Type Crimped Wire Cloth Galvanized Sleeve Edges Crimped Wire Mesh 1



About our company





Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.



End Finish Type Crimped Wire Cloth Galvanized Sleeve Edges Crimped Wire Mesh 2



We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
