Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt

  • Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt
  • Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt
  • Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2 rolls
Price According to order quantity can be negotiable
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Supply Ability 2300 Meter/Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Corrosion Resistance In Marine Atmospheres Name Square Hole Crimped Woven Wire Mesh
Material Galvanized Steel Wire, Galvanized Stainless Technique Woven, Crimped
Weave Style Plain Crimped, Flat Top Crimped, Plain Crimped, Flat Top Crimped Wire Gauge 1-10mm
Roll Size 1mx30m, 1.22mx30m, 1.5mx30m Hole Shape Square
Sample Available Usages Filtering Salt
Highlight

ss306 crimped woven wire mesh

,

ss304 crimped woven wire mesh

,

ss306 stainless steel crimped mesh
Leave a Message
Product Description

Stainless Steel Crimped Wire Mesh For Filtering Salt,304 316L stainless steel Crimped Wire Mesh

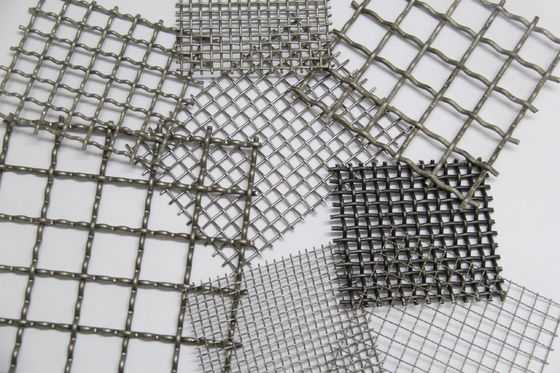

Stainless steel crimped wire mesh


1. Material of stainless steel crimped wire mesh : SS304,SS304L,SS316,SS316L etc.

2. Weaving: Weaving after, double crimped, locked bending, flat-top bending, two-way bending, bending wave one-way compartment

3. Application: stainless steel crimped wire mesh could be used in many fields, such as in mine, coal factory, construction and other industries. Some of the stainless steel crimped wire mesh could also be used for roasting flour food and meat.

4. Specification of stainless steel crimped wire mesh:

Wire thickness: 0.4-6mm

Mesh: 1-24

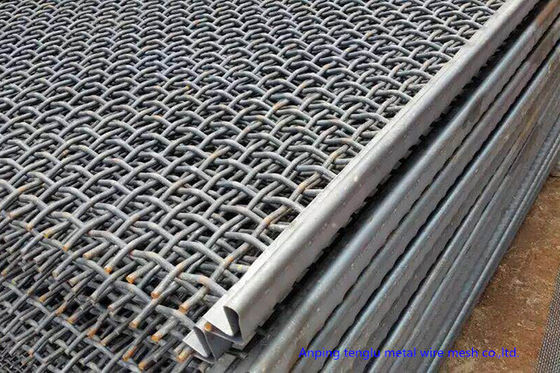

The Vibrating screen mesh can be produced with raw edge or hooked edge, hooked edge types as below:




Stainless Steel Wire Mesh
Mesh/inch Wire Diameter
(mm)		 Aperture
(mm)		   Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90   60mesh 0.15 0.273
3mesh 1.60 6.866   70mesh 0.14 0.223
4mesh 1.20 5.15   80mesh 0.12 0.198
5mesh 0.91 4.17   90mesh 0.11 0.172
6mesh 0.80 3.433   100mesh 0.10 0.154
8mesh 0.60 2.575   120mesh 0.08 0.132
10mesh 0.55 1.990   140mesh 0.07 0.111
12mesh 0.50 1.616   150mesh 0.065 0.104
14mesh 0.45 1.362   160mesh 0.065 0.094
16mesh 0.40 1.188   180mesh 0.053 0.088
18mesh 0.35 1.060   200mesh 0.053 0.074
20mesh 0.30 0.970   250mesh 0.04 0.061
26mesh 0.28 0.696   300mesh 0.035 0.049
30mesh 0.25 0.596   325mesh 0.03 0.048
40mesh 0.21 0.425   350mesh 0.03 0.042
50mesh 0.19 0.318   400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-1.5m



Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt 0



About our company





Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.



Square Hole Crimped Wire Mesh Stainless Steel 304 316L For Filtering Salt 1



We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
