Hooked Vibrating Sieve Screen Mesh SUS304 Crimped For Mining Quarry Crimped Wire Mesh
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Good Corrosion Resistance | Product Name | Hooked Vibrating Sieve Screen Mesh |
|---|---|---|---|
| Material | Galvanized Steel Wire | Technique | Woven, Crimped |
| Weave Style | Plain Crimped, Flat Top Crimped, Plain Crimped/flat Top Crimped | Wire Gauge | 1-10mm |
| Length | 30m Or Customized | Width | 1m, 1.2m, 2m Or Customized |
| Hole | Square | Application | Mining |
| Highlight | crimped woven wire mesh,crimped wire cloth |
||
Product Description

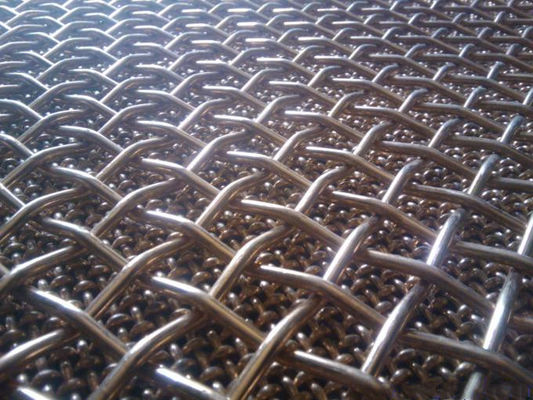

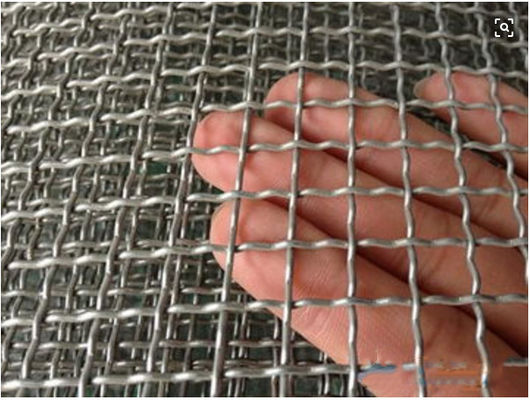

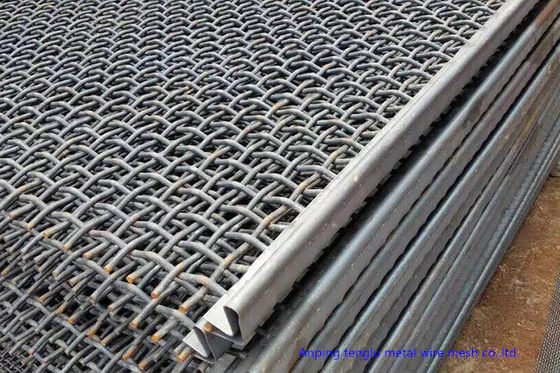

Hooked Vibrating Sieve Screen Mesh SUS304 Crimped For Mining Quarry Crimped Wire Mesh
Vibrating screen mesh material:
Manganese stee(65Mn,30Mn)l,high carbon steel(72a,82b,60,55,45),spring steel,stainless steel(316,304,202).
Specification Of vibrating Screen Mesh
Wire Diameter: 0.5mm to 15mm;
Mesh size: 1mm to 100mm;
Length & width: can be required;
Vibrating screen mesh advantage:
The manganese steel is very abrasive and corrosive. And the stainless steel material is very corrosive.According to the different application, also choose different materials.Crimped wire offers stable structure and good strength
Specifications:
|
Stainless Steel Wire Mesh |
||||||
|
Mesh/inch |
Wire Diameter |
Aperture |
|
Mesh/inch |
Wire diameter |
Aperture |
|
2mesh |
1.80 |
10.90 |
|
60mesh |
0.15 |
0.273 |
|
3mesh |
1.60 |
6.866 |
|
70mesh |
0.14 |
0.223 |
|
4mesh |
1.20 |
5.15 |
|
80mesh |
0.12 |
0.198 |
|
5mesh |
0.91 |
4.17 |
|
90mesh |
0.11 |
0.172 |
|
6mesh |
0.80 |
3.433 |
|
100mesh |
0.10 |
0.154 |
|
8mesh |
0.60 |
2.575 |
|
120mesh |
0.08 |
0.132 |
|
10mesh |
0.55 |
1.990 |
|
140mesh |
0.07 |
0.111 |
|
12mesh |
0.50 |
1.616 |
|
150mesh |
0.065 |
0.104 |
|
14mesh |
0.45 |
1.362 |
|
160mesh |
0.065 |
0.094 |
|
16mesh |
0.40 |
1.188 |
|
180mesh |
0.053 |
0.088 |
|
18mesh |
0.35 |
1.060 |
|
200mesh |
0.053 |
0.074 |
|
20mesh |
0.30 |
0.970 |
|
250mesh |
0.04 |
0.061 |
|
26mesh |
0.28 |
0.696 |
|
300mesh |
0.035 |
0.049 |
|
30mesh |
0.25 |
0.596 |
|
325mesh |
0.03 |
0.048 |
|
40mesh |
0.21 |
0.425 |
|
350mesh |
0.03 |
0.042 |
|
50mesh |
0.19 |
0.318 |
|
400mesh |
0.025 |
0.0385 |
|
Width of Stainless Steel Wire Mesh: 0.6m-1.5m |
||||||
About our company
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
We are specialized in manufacture and export of stainless steel wire mesh product,if you have request please contact us.We will provide professional service and guarantee on time delivery.
