Inconel 600 601 625 718 X750 Metal Woven Wire Mesh

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Inconel Wire Mesh | Material | Inconel 600, 601, 625, 718, X750, Etc |
---|---|---|---|
Hole Shapes | Square | Woven Type | Plain Weave, Twill Weave |
Mesh Counts | 4 To 200 Mesh | Roll Width | 0.1m To 1.5m |
Roll Length | 10m To 100m | Feature | Good Cold- Formed Function |
Application | Petrochemical, Aerospace Industry, Etc | STANDARD | ASTM |
Highlight | X750 Metal Woven Wire Mesh,Inconel 601 Metal Woven Wire Mesh,inconel 600 wire mesh |

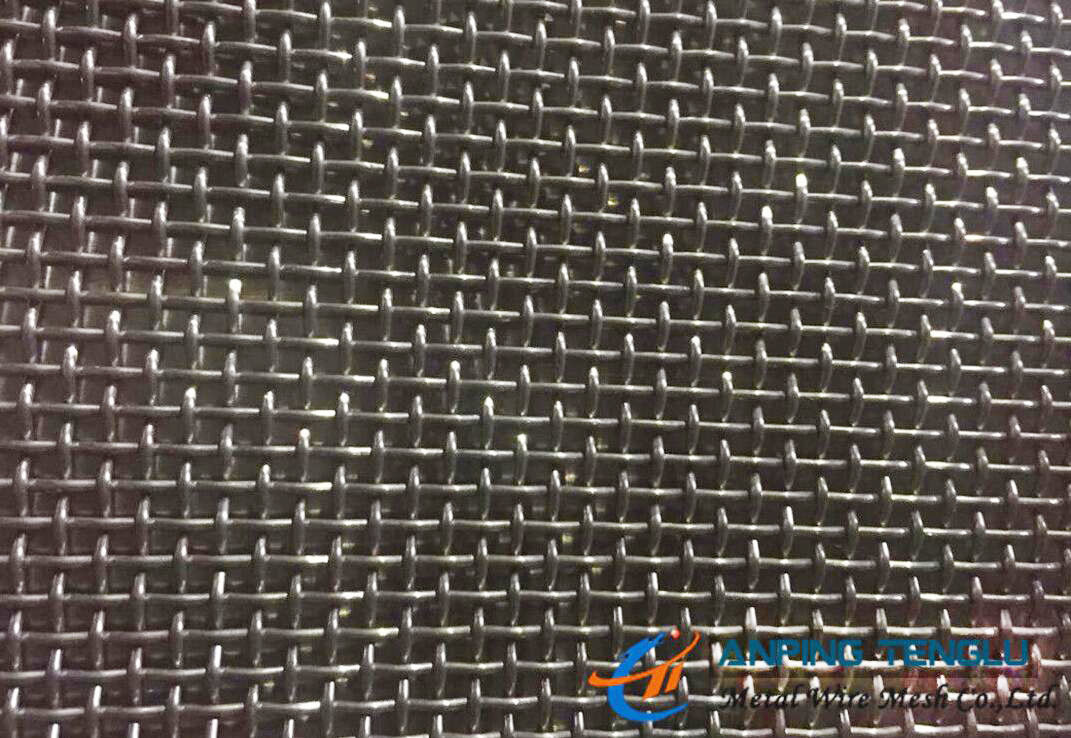

Inconel Wire Mesh With Mesh Wire Inconel 600 601 625 718 X750 etc
Inconel Woven Wire Mesh Introduction:
Inconel woven wire mesh is made of inconel wires. The inconel wire is made with nickel-chromium-iron base alloy material. According to the chemical composition, the inconel can be divided into inconel 600, inconel 601, inconel 625, inconel 718 and inconel X750. This special wire mesh offers good heat resistance, excellent corrosion resistance, oxygen resistance, good cold and heat processing and welding property. Without magnetism, inconel woven wire mesh can be used in a temperature range from below zero to 1093 degree. It is widely used in the petrochemical, aerospace industry and other fields.
Weave Pattern: plain weave, twill weave.
Major Material: Inconel 600, Inconel 601, Inconel 625, Inconel 718 (N07718), Inconel X-750
Chemical Composition of Inconel 600 (%) | |||||||
C | Cr | Cu | Fe | Mn | Ni | S | Si |
0.15 | 14 - 17 | 0.5 | 6-10 | 1 | 72 | 0.015 | 0.5 |
Chemical Composition of Inconel 601 (%) | ||||||||
C | Cr | Cu | Fe | Mn | Ni | S | Si | Al |
0.1 | 21 - 25 | 1 | Rem | 1 | 58 - 63 | 0.015 | 0.5 | 1.0 - 1.7 |
Chemical Composition of Inconel 625 (%) | |||||||||||
C | Cr | Fe | Mn | Ni | S | Si | Al | Cb | Mo | P | Ti |
0.1 | 20 - 23 | 5 | 0.5 | Rem | 0.15 | 0.5 | 0.4 | 3.15 - 4.15 | 8 - 10 | 0.015 | 0.4 |
Chemical Composition of Inconel 718 (%) | |||||||||||||||
C | Cr | Cu | Fe | Mn | Ni | S | Si | Al | Cb | Mo | P | Ti | B | C | Co |
0.08 | 17-21 | 0.3 | Rem | 0.035 | 50 - 55 | 0.015 | 0.35 | 0.2 - 0.8 | 4.75- 5.50 | 2.8 - 3.3 | 0.015 | 0.65- 1.15 | 0.006 | 0.08 | 1 |
Chemical Composition of Inconel X750 (%) | ||||||||||
C | Cr | Cu | Fe | Mn | Ni | S | Si | Al | Cb | Ti |
0.08 | 14 –17 | 0.5 | 5 – 9 | 1 | 70 | 0.01 | 0.5 | 0.4 – 1 | 0.7 – 1.2 | 2.0 – 2.6 |
Feature:
Non-magnetic.
High temperature resistance.
Good cold-formed function.
Good weld ability.
Excellent corrosion resistance.
Oxidation resistance.
Applications:
In the chloride ion and the alkaline salt solution, no corrosion happen. Inconel wire mesh is widely used in Petrochemical, aerospace industry, hydropower, nuclear power, oil refining and shipbuilding, onshore and offshore oil and gas, pulp and paper, chemical fiber, machinery equipment manufacturing industry and the change of heat exchangers and other products, highly recognized by customers.
Commonen Specifications:
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
4 × 4 | 0.12 | 0.13 | 27 |
4 × 4 | 0.08 | 0.17 | 46.2 |
4 × 4 | 0.063 | 0.187 | 56 |
5 × 5 | 0.04 | 0.16 | 64 |
6 × 6 | 0.041 | 0.0126 | 57.2 |
8 ×8 | 0.047 | 0.078 | 38.9 |
8 × 8 | 0.041 | 0.084 | 45.2 |
8 × 8 | 0.03 | 0.095 | 57.8 |
8 × 8 | 0.028 | 0.097 | 60.2 |
10 × 10 | 0.0225 | 0.075 | 56.3 |
10 × 10 | 0.015 | 0.085 | 72.3 |
12 × 12 | 0.041 | 0.042 | 25.4 |
12 × 12 | 0.025 | 0.058 | 48.4 |
16 × 16 | 0.036 | 0.0275 | 19.4 |
16 × 16 | 0.028 | 0.035 | 30.5 |
16 × 16 | 0.025 | 0.038 | 36 |
16 × 16 | 0.023 | 0.04 | 39.9 |
16 × 16 | 0.018 | 0.045 | 50.7 |
18 × 18 | 0.028 | 0.028 | 24.7 |
20 × 20 | 0.016 | 0.034 | 46.2 |
22 × 22 | 0.015 | 0.031 | 45 |
24 × 24 | 0.014 | 0.028 | 44.2 |
24 × 24 | 0.012 | 0.03 | 50.8 |
28 × 28 | 0.013 | 0.023 | 40.4 |
30 × 30 | 0.015 | 0.018 | 30.1 |
30 × 30 | 0.01 | 0.0233 | 48.9 |
35 × 35 | 0.0055 | 0.0236 | 68.1 |
40 × 40 | 0.01 | 0.015 | 36 |
50 × 50 | 0.009 | 0.011 | 30.2 |
60 × 60 | 0.0075 | 0.0092 | 30.5 |
80 × 80 | 0.0055 | 0.007 | 31.4 |
100 × 100 | 0.004 | 0.006 | 36 |
100 × 100 | 0.0045 | 0.0055 | 30.2 |
120 × 120 | 0.0038 | 0.0046 | 30.7 |
120 × 120 | 0.002 | 0.0063 | 57.8 |
200 × 200 | 0.0021 | 0.0029 | 33.6 |
200 × 200 | 0.002 | 0.003 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
2 × 2 | 0.072 | 0.428 | 73.3 |
5 × 5 | 0.041 | 0.159 | 63.2 |
6 × 6 | 0.047 | 0.12 | 51.8 |
10 × 10 | 0.047 | 0.053 | 28.1 |
10 × 10 | 0.0225 | 0.075 | 56.3 |
10 × 10 | 0.015 | 0.085 | 72.3 |
12 × 12 | 0.025 | 0.058 | 48.4 |
18 × 18 | 0.017 | 0.039 | 48.3 |
24 × 24 | 0.014 | 0.028 | 44.2 |
30 × 30 | 0.017 | 0.0163 | 23.9 |
30 × 30 | 0.016 | 0.017 | 26.9 |
30 × 30 | 0.015 | 0.018 | 30.1 |
35 × 35 | 0.01 | 0.019 | 42.4 |
35 × 35 | 0.014 | 0.015 | 26.1 |
40 × 40 | 0.01 | 0.015 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
4 × 4 | 0.047 | 0.203 | 65.9 |
6 × 6 | 0.041 | 0.0126 | 57.2 |
8 ×8 | 0.035 | 0.09 | 51.8 |
8 × 8 | 0.032 | 0.093 | 55.4 |
8 × 8 | 0.024 | 0.101 | 65.29 |
20 × 20 | 0.0115 | 0.039 | 60.8 |
26 × 26 | 0.013 | 0.026 | 44 |
30 × 30 | 0.012 | 0.021 | 40.8 |
32 × 32 | 0.014 | 0.017 | 30.6 |
32 × 32 | 0.013 | 0.018 | 34.3 |
32 × 32 | 0.01 | 0.021 | 46.5 |
35 × 35 | 0.014 | 0.015 | 26.1 |
35 × 35 | 0.0135 | 0.015 | 27.9 |
35 × 35 | 0.01 | 0.019 | 42.4 |
40 × 40 | 0.0105 | 0.0145 | 33.65 |
40 × 40 | 0.0085 | 0.017 | 43.6 |
50 × 50 | 0.009 | 0.011 | 30.3 |
60 × 60 | 0.0075 | 0.009 | 30.5 |
100 × 100 | 0.004 | 0.006 | 36 |
100 × 100 | 0.0045 | 0.006 | 30.3 |
100 × 100 | 0.004 | 0.006 | 36 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
10 × 10 | 0.02 | 0.08 | 64 |
26 × 26 | 0.013 | 0.026 | 44 |
30 × 30 | 0.008 | 0.025 | 57.6 |
45 × 45 | 0.003 | 0.0192 | 74.8 |
Mesh (Wires/ Inch) |
Wire Diameter (Inch) |
Width of Opening (Inch) |
Open Area (%) |
80 × 80 | 0.0055 | 0.007 | 31.4 |

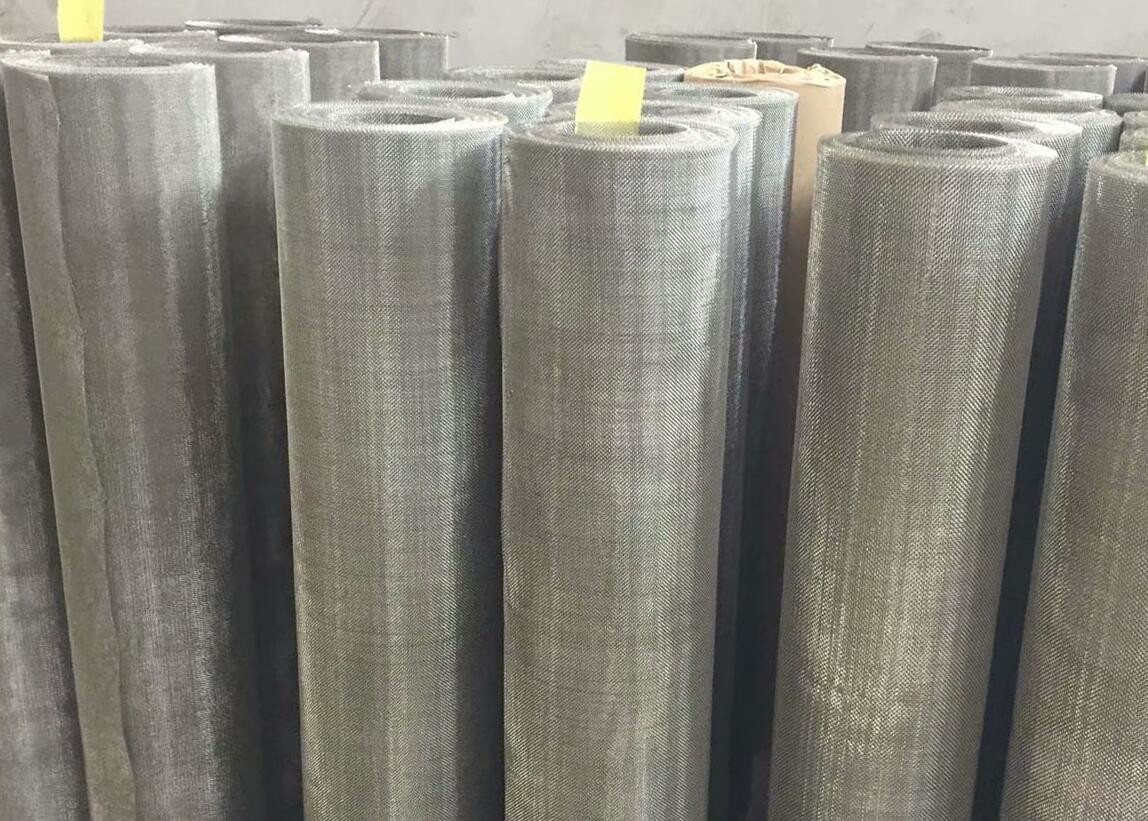

Packing:
1. waterproof paper inside, plastic bags then load in woodencase.
2. warweproof paper inside plastic bags then load in pallet.
3. as customers' requirement.
