ASTM 400 Monel Woven Wire Mesh 8 To 200 Per Inch With Heat And Corrosion Resisting

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 2Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Monel Woven Wire Mesh Material Monel 400
Standard ASTM Composed Primarily Of Copper And Nickel
Wire Diameter 0.05 To 1.80mm Hole Shapes Square
Mesh Counts 8 To 200 Per Inch Weave Type Plain, Twill
Feature It Is Essentially Non-corrodible. Applicatioin Screen, Filter
High Light

400 Monel Woven Wire Mesh


ASTM Monel Woven Wire Mes


Corrosion Resisting monel wire mesh

Leave a Message
Product Description

Monel400 Grade 8 to 200 per inch With Heat and Corrosion Resisting Monel Woven Wire Mesh


Monel 400 wire mesh introduction:


Monel 400 is a uniquely strong and durable material composed primarily of Copper and Nickel. As a copper-nickel alloy, Monel 400 exhibits high strength and excellent corrosion resistance in a wide range of media, including sea water and in acidic and alkaline environments. Due to these characteristics, Monel wire mesh specifications are often requested by naval shipyards and companies that specialize in marine technologies.

In the wire mesh industry, Monel 400 wire is drawn to specific diameter wires and woven to certain specifications. Monel woven wire mesh is commonly used in high performance applications, aerospace, chemical and hydrocarbon processing equipment, as well as in valves, pumps, shafts, fittings and heat exchangers. With a few exceptions, non-industrial users rarely opt for Monel wire cloth due to its high cost and similar appearance to stainless steel.

Monel 400 alloy contains minimum 63% nickel and 28% copper. It is essentially non-corrodible. It Is more resistant than copper to oxidation and is more resistant than nickel to reducing conditions. Monel was very popular in the past for food processing due to its excellent corrosion resistance and high strength. This 400 grade monel is highly resistant to the corrosive action of acids, alkalides and salt water. It has the same strength of mild steel.



Monel400, Monel401, Monel404, Monel R405, Moenl K500 and Inconel wire. Monel400 alloy wire is the most common material that corrosion resisting in the hydrofluoric acid, muriatic acid, phosphoric acid, organic acid and alkaline medium.


Monel-400 Chemical Composition(%)
C Mn Fe Cu Ni Si S
Max Max Max Min/Max Min Max Max
0.3 2 2.5 28.0-34.0 63 0.5 0.024


Weave Pattern: plain weave, twill weave, dutch weave.

The most popular specification:

Monel Wire Mesh
Mesh Wire Dia. (mm) Aperture (mm)
2mesh 1.80 10.90
3mesh 1.60 6.866
4mesh 1.20 5.15
5mesh 0.91 4.17
6mesh 0.80 3.433
8mesh 0.60 2.575
10mesh 0.55 1.990
12mesh 0.50 1.616
14mesh 0.45 1.362
16mesh 0.40 1.188
18mesh 0.35 1.060
20mesh 0.30 0.970
26mesh 0.28 0.696
30mesh 0.25 0.596
40mesh 0.21 0.425
50mesh 0.19 0.318
60mesh 0.15 0.273
70mesh 0.14 0.223
80mesh 0.12 0.198
90mesh 0.11 0.172
100mesh 0.10 0.154
120mesh 0.08 0.132
140mesh 0.07 0.111
150mesh 0.065 0.104
160mesh 0.065 0.094
180mesh 0.053 0.088
200mesh 0.053 0.074
Other specifications according to your requirements.

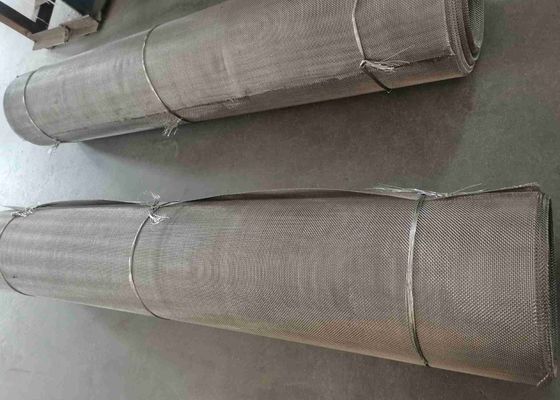

ASTM 400 Monel Woven Wire Mesh 8 To 200 Per Inch With Heat And Corrosion Resisting 0


This mesh can be used make heat exchangerm,pressure vessels,value,pump,reaction kettles and oil pipes.
Monel Wire Mesh, Monel400 Grade, 200mesh, 0.053mm, Wire 1.0m Wide.


Inside with a paper core, outside with a piece of waterproof, the in wooden case.

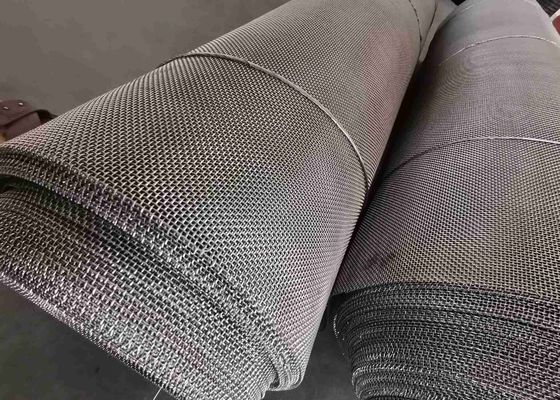

ASTM 400 Monel Woven Wire Mesh 8 To 200 Per Inch With Heat And Corrosion Resisting 2
