Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge

  • Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge
  • Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge
  • Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Closed Edge Brass Wire Mesh Material Brass, Copper
Standard ASTM Hole Shape Square
Woven Edges Closed Edges Mesh Counts 6 To 20 Per Inch
Weaving Type Plain Dutch, Twill Dutch Width To 3.0m
Properties Stability And Safety Handling Usages Aerospace, Marine, High End Infill Panels, Etc
High Light

ASTM Metal Woven Wire Mesh

,

Copper Metal Woven Wire Mesh

,

Looped Edge copper woven wire mesh
Leave a Message
Product Description

Brass/ Copper Woven Wire Mesh With Selvage Edge/ Finished Edge/ Looped Edge



Selvage Edge Brass Woven Wire Mesh Introduction:

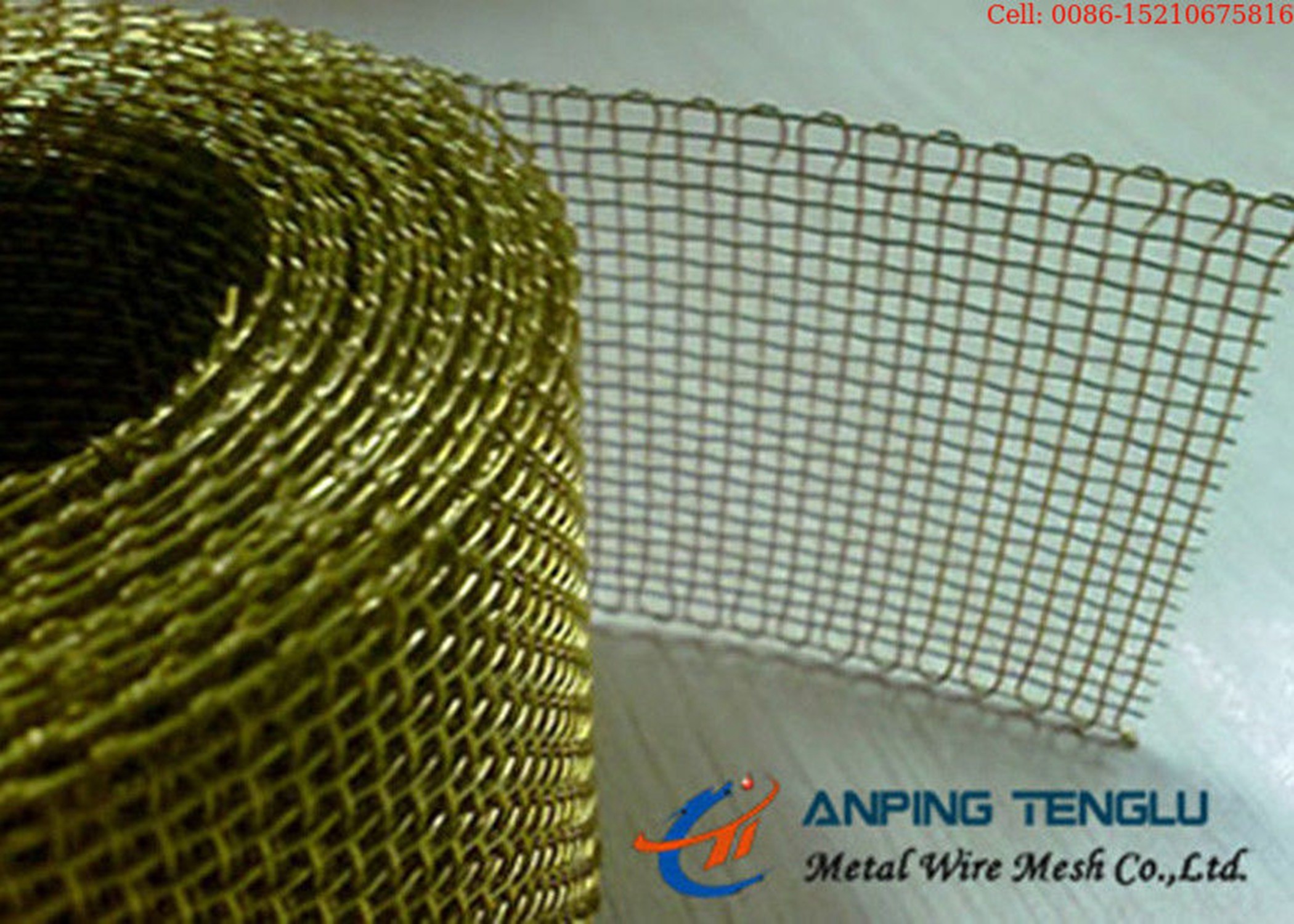

The term, “selvaged edge” refers to the edge or border of wire cloth that has a finished edge. When wire cloth is woven, the shute wires are woven in, continuously, forming a smooth edge that runs the length of roll while helping to prevent unraveling on certain specifications. Generally speaking, a selvage edge will increase the stability of a mesh and provide a safety edge for handling. Looped selvage, as seen in the photo below, is the most common type of selvage edge. In recent years, selvage edge has decreased in popularity due to difficulty in producing and increased costs to produce. When a selvage edge is required, it is important to specify, as raw edge is widely the norm in the industry.



Brass is an alloy that is comprised of copper and zinc, and, like copper, brass is soft and malleable and is attacked by ammonia and similar salts. As a wire mesh, the most commonly available brass woven wire mesh is referred to as H65 and has a chemical composition of approximately 65% copper, 35% zinc. Besides brass wire mesh, copper wire mesh and phosphor bronze Wire Mesh with selvaged edge can be made as well.



Specifications



Brass Woven Wire Mesh
Mesh Count

Wire Diameter

(mm)

Aperture Size

(mm)

Open Area Rate

(%)
6 0.40 3.833 81.99
0.50 3.733 77.77
0.60 3.633 73.66
0.70 3.533 69.66
8 0.40 2.775 76.39
0.50 2.675 70.98
10 0.35 2.190 74.30
0.40 2.140 70.98
0.50 2.040 64.50
12 0.35 1.770 69.66
0.40 1.716 65.77
0.50 1.616 58.33
14 0.30 1.514 69.66
0.35 1.464 65.13
0.40 1.414 60.76
0.50 1.314 52.47
16 0.25 1.337 70.98
0.27 1.317 68.87
0.40 1.187 55.95
18 0.15 1.261 79.87
0.17 1.241 77.35
0.19 1.221 74.88
0.21 1.201 72.45
0.25 1.161 67.7
0.30 1.111 62.00
0.40 1.011 51.34
20 0.19 1.080 72.31
0.21 1.060 69.66
0.25 1.020 64.50
0.30 1.970 58.33
0.40 0.870 46.92



Other specifications according to your requirements.



Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge 0



Weaving Methods: Plain Weave


180Mesh Plain Weave Brass Mesh with 0.05 & 0.06mm Wire, 36" & 48" Width


Features of Selvage Edge Brass Wire Mesh:


1) A selvage edge will increase the stability of a mesh and provide a safety edge for handling.
2) Abrasion, corrosion, high temperature and spark resistance.
3) Acid, alkali resistance.
4) Durable, good ductility, tensile strength.
5) Allowing light, air, liquid to pass.
6) Discolor due to atmospheric condition.
7) Not suitable for salt water application.
8) Clean and install easily.
9) Brass mesh has lower electricity and heat conductivity but better abrasion and corrosion resistance, better tensile strength compared with copper mesh cloth.


Application of selvage edge brass mesh:


Selvage Edge Brass Wire Mesh can be used in aerospace, marine, high end infill panels, room separation & dividers, Unique artistic designs, Decorative lamp shades, Decorative signage, Metal artisans, Ceiling panels, Air & liquid filtration, Fireplace screens, Chemical processing & diffusion, Cabinet screens, Metal castings, Power generation, Oil strainers, Plumbing Screens, Soffit screen, Gutter guards, Air Vents, etc.



Packing:



Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.

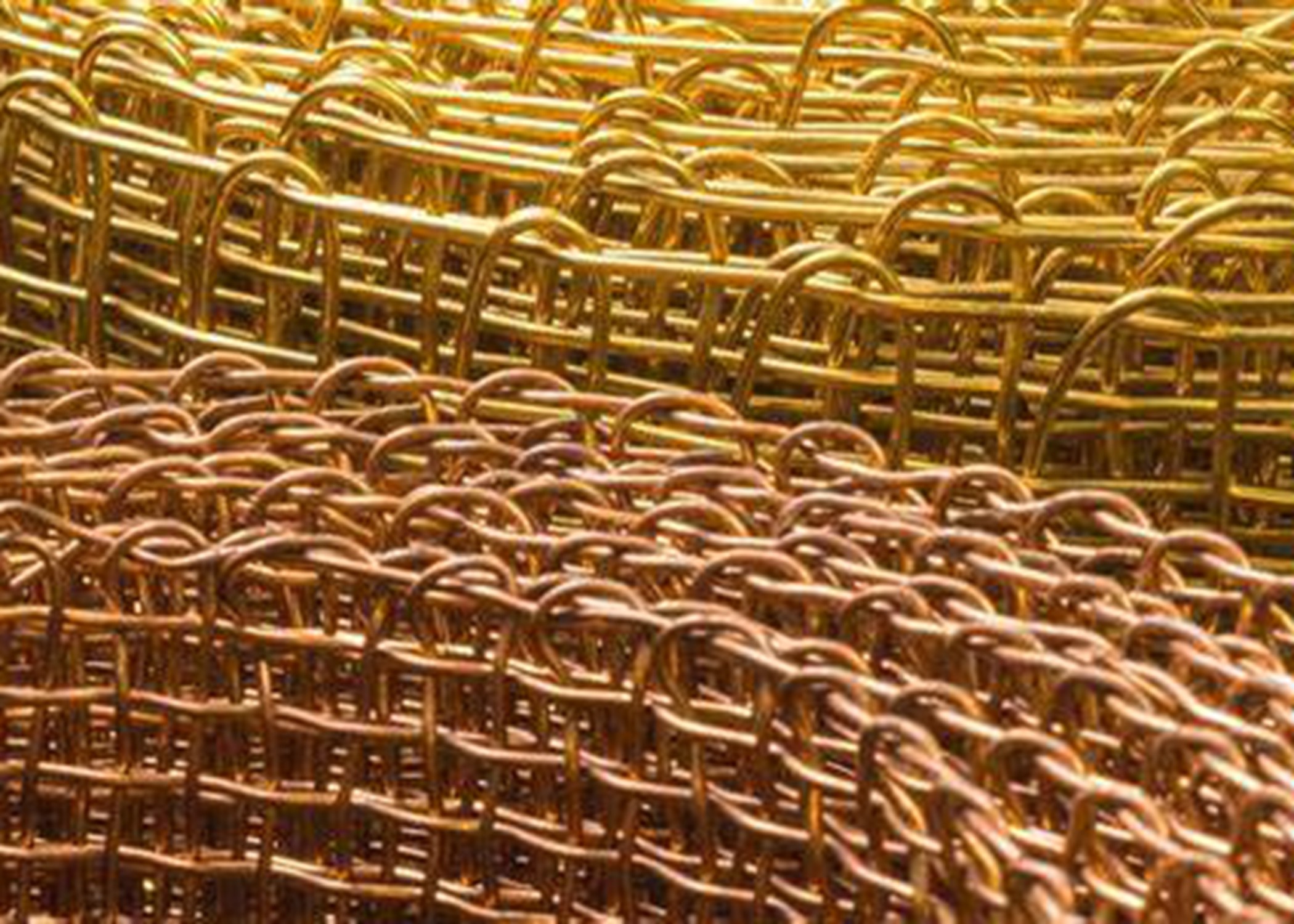

Copper ASTM Metal Woven Wire Mesh With Selvage Edge Finished Edge Looped Edge 2
