Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole

  • Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole
  • Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole
  • Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion, Wear, Tear, Rust, Fatigue, Acid And Alkali Resistance. Product Name Phosphor Bronze Woven Wire Mesh
Material Phosphor Bronze Wire Woven Type Plain Weave, Twill Weave, Dutch Weave
Standard ASTM Mesh Counts 6 To 400 Per Inch
Hole Shape Square Width 0.5m To 3.0m
Length 30m Application Filters, Decorative Grills, Lamps And Light Shades, Fireplace, Etc
High Light

0.4mm Phosphor Bronze Woven Wire Mesh

,

0.4mm bronze woven wire mesh

,

0.4mm 0.5mm bronze wire mesh
Leave a Message
Product Description

Phosphor Bronze Woven Wire Mesh 0.03 to 0.35% phosphor 5 to 8% tin with balance copper



Phosphor Bronze Woven Wire Mesh Introduction:



Phosphor copper mesh cloth is made of the alloy of phosphor, tin and copper. The chemical composition of phosphorous bronze wire mesh differs from bronze wire mesh in that a small amount of phosphorous is included. Phos bronze, as it is commonly referred to in the industry, exhibits physical and anti-corrosive properties slightly superior to copper and brass and has a chemical composition with 0.03%-0.35% phosphor, 5%-8% tin, the balance is copper.



Phosphor copper mesh cloth with higher copper content makes it more corrosion resistance than brass mesh cloth. It is harder and stronger than copper mesh cloth. Phosphor copper mesh cloth can be used to sieve and filter granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas. It also can be the filter in pharmacy, food, industry, chemical industry, paper making, metallurgy or the screen for window and door.



Weaving Methods: Plain Weave, Twill Weave


Specifications


Phosphor Bronze Woven Wire Mesh
Mesh Count

Wire Diameter

(mm)

Aperture Size

(mm)

Open Area Rate

(%)
6 0.40 3.833 81.99
0.50 3.733 77.77
0.60 3.633 73.66
0.70 3.533 69.66
8 0.40 2.775 76.39
0.50 2.675 70.98
10 0.35 2.190 74.30
0.40 2.140 70.98
0.50 2.040 64.50
12 0.35 1.770 69.66
0.40 1.716 65.77
0.50 1.616 58.33
14 0.30 1.514 69.66
0.35 1.464 65.13
0.40 1.414 60.76
0.50 1.314 52.47
16 0.25 1.337 70.98
0.27 1.317 68.87
0.40 1.187 55.95
18 0.15 1.261 79.87
0.17 1.241 77.35
0.19 1.221 74.88
0.21 1.201 72.45
0.25 1.161 67.7
0.30 1.111 62.00
0.40 1.011 51.34
20 0.19 1.080 72.31
0.21 1.060 69.66
0.25 1.020 64.50
0.30 1.970 58.33
0.40 0.870 46.92
22 0.25 0.904 61.38
24 0.15 0.908 73.66
0.20 0.858 65.77
0.30 0.758 51.34
0.35 0.708 44.79
30 0.12 0.726 73.66
0.13 0.716 71.64
0.15 0.696 67.70
0.17 0.676 63.87
0.19 0.656 60.15
0.20 0.646 58.33
0.27 0.576 46.39
40 0.12 0.515 0.020
0.15 0.485 0.019
0.18 0.455 0.018
0.20 0.435 0.017
50 0.12 0.388 58.33
0.13 0.378 55.36
0.15 0.358 49.66
0.20 0.308 36.75
60 0.10 0.323 58.30
0.11 0.313 54.76
0.12 0.303 51.34
0.15 0.273 41.68
0.17 0.253 35.81
0.19 0.233 30.38
80 0.08 0.237 55.72
0.09 0.227 51.34
0.10 0.217 46.92
0.12 0.197 38.69
100 0.07 0.184 52.48
0.08 0.174 46.92
0.09 0.164 41.69
0.10 0.154 36.75
120 0.05 0.162 40.51
0.06 0.152 35.65
0.07 0.142 31.11
0.08 0.132 38.69
150 0.06 0.109 41.68
0.07 0.099 34.41
180 0.05 0.091 41.68
0.06 0.081 33.03
200 0.05 0.077 36.75
250 0.04 0.061 36.75
300 0.04 0.044 27.83
325 0.035 0.043 30.48
0.04 0.038 23.83
400 0.03 0.033 27.83

Other specifications according to your requirements.

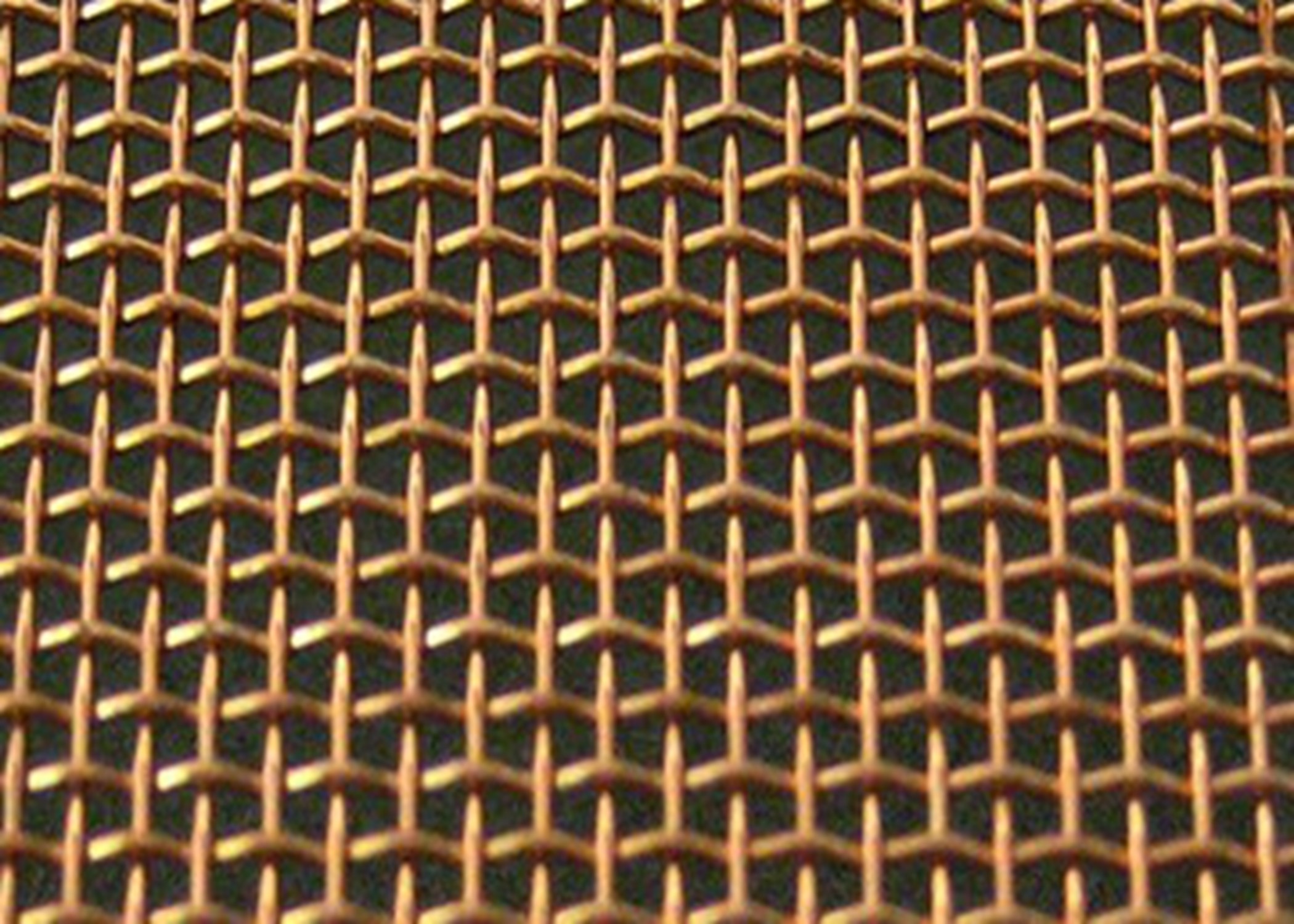

Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole 0



Features of Phosphor Bronze Wire Mesh(cloth):


1) Corrosion, wear, tear, rust, fatigue, acid and alkali resistance.
2) Non-magnetic, good ductility, high toughness, high strength.
3) Good electricity and heat conductivity.
4) Phosphor copper wire mesh with higher copper content makes it more corrosion resistance than brass mesh cloth. It is harder and stronger than copper mesh cloth.



Application of Phosphor Bronze wire mesh(cloth):


filters, air vents, heat pipe wicks, cryogenics heat, decorative grills, lamps and light shades, fireplace, EMI/RFI shielding mesh, paper making, strainers, fan guards, etc.

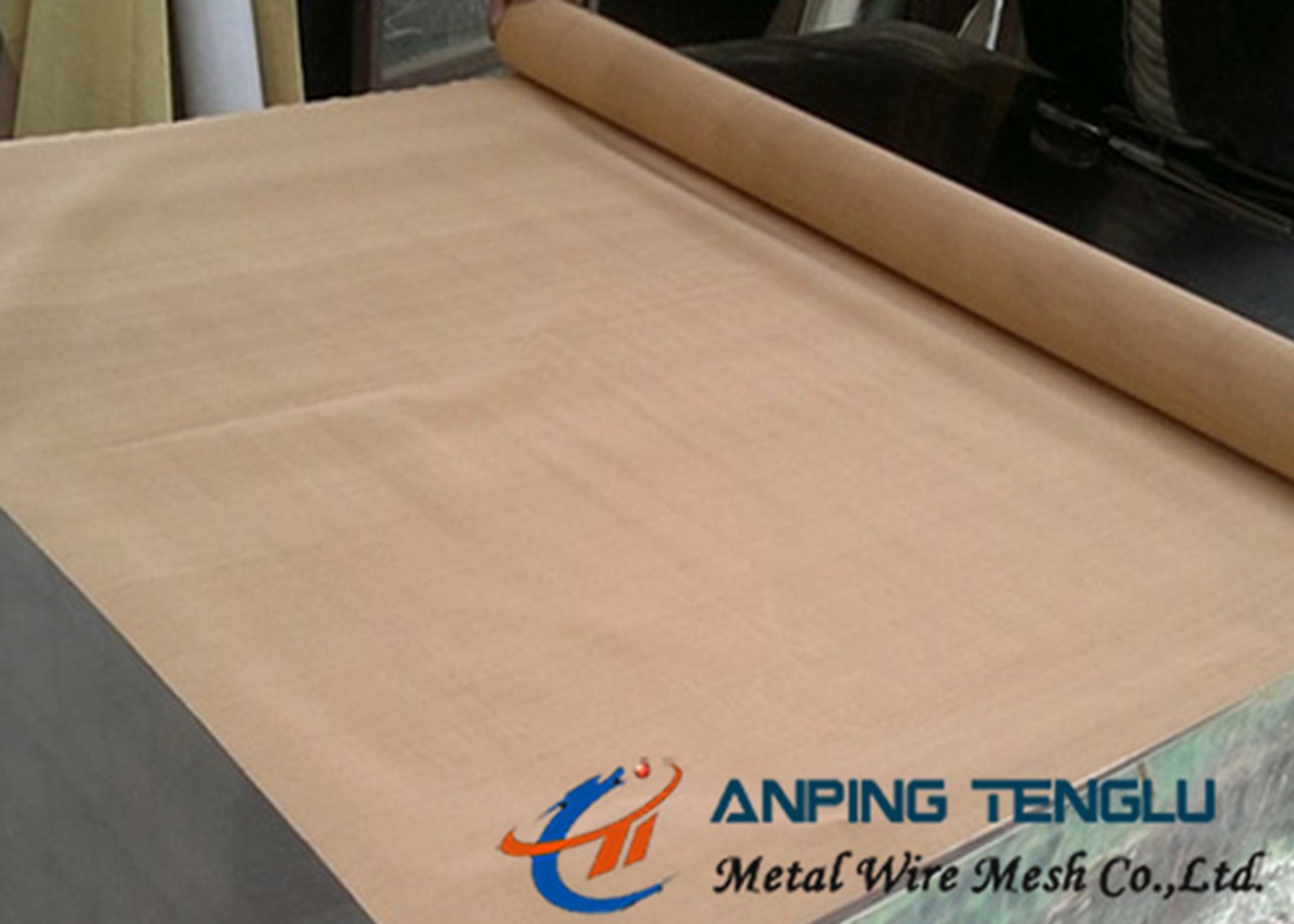

Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole 1



Packing:



Phosphor Bronze wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



Phosphor Bronze Woven Wire Mesh 0.4mm 0.5mm Square Hole 2
