0.10 To 0.19mm H65 Brass Woven Wire Mesh Plain Weave

  • 0.10 To 0.19mm H65 Brass Woven Wire Mesh Plain Weave
  • 0.10 To 0.19mm H65 Brass Woven Wire Mesh Plain Weave
  • 0.10 To 0.19mm H65 Brass Woven Wire Mesh Plain Weave
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Abrasion, Corrosion, High Temperature And Spark Resistance. Product Name Plain Weave Brass Wire Cloth
Material Brass Wire Brass Material H65(65%Cu35%Zn)
Hole Shape Square Weaving Type Plain Weave
Mesh Counts 6 To 200 Per Inch Width 0.5 To 3m
Length 30m Application Filters Or Decorative
High Light

H65 Brass Woven Wire Mesh

,

0.19mm brass woven wire mesh

,

0.1mm brass wire cloth
Leave a Message
Product Description

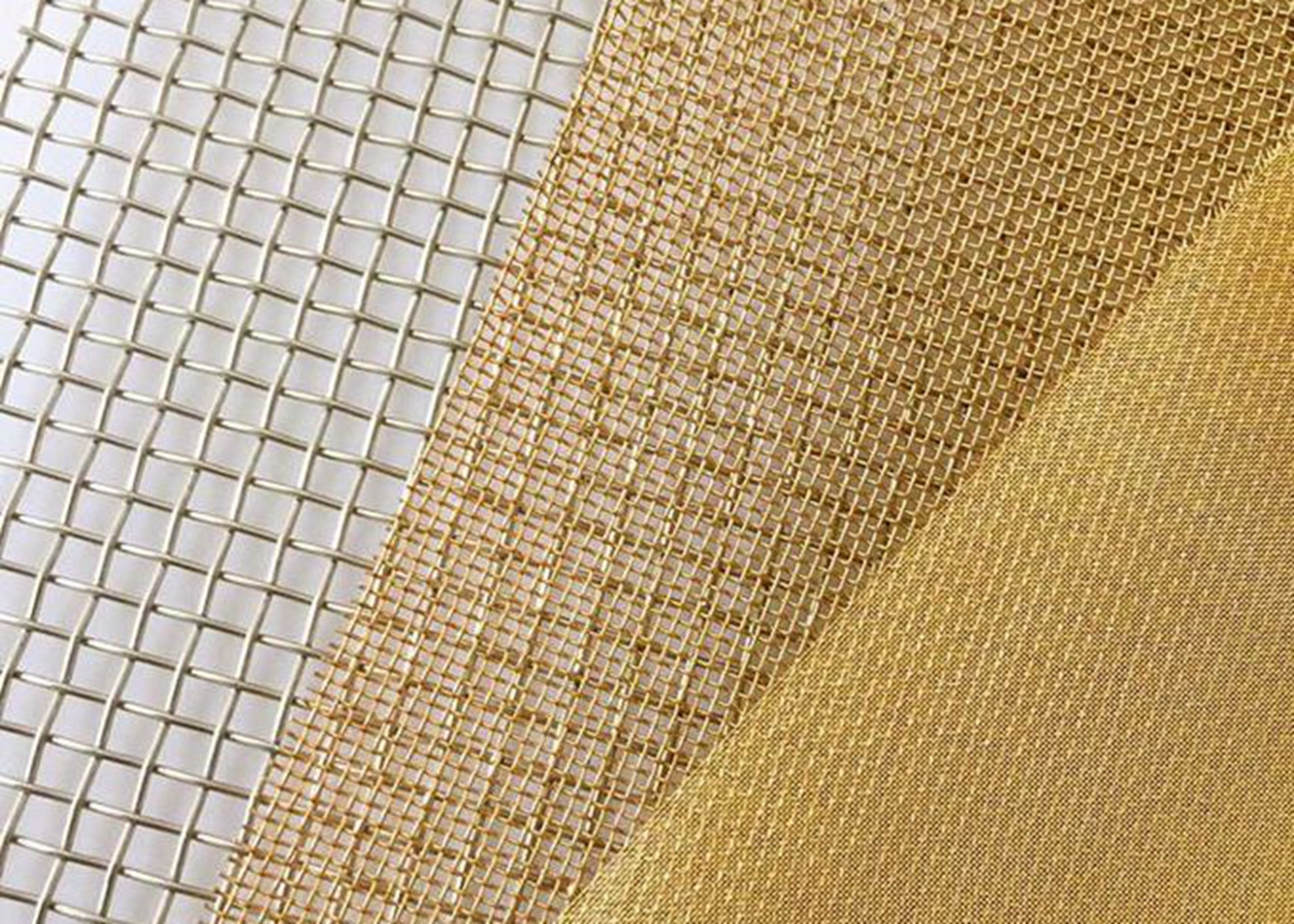

Mesh Plain Weave Brass Wire Cloth 0.10 to 0.19mm Wire H65(65%Cu35%Zn)



Brass Wire Mesh/ Brass Wire Cloth



Brass is an alloy that is comprised of copper and zinc, and, like copper, brass is soft and malleable and is attacked by ammonia and similar salts. As a wire mesh, the most commonly available brass woven wire mesh is referred to as “270 yellow brass” and has a chemical composition of approximately 65% copper, 35% zinc. “260 high brass”, which consists of 70% copper and 30% zinc is also a popular in the mesh industry, particularly on custom manufactured items.

The presence of zinc in brass woven wire mesh is important because it provides added abrasion resistance and allows for higher tensile strengths; it also hardens the mesh, compared to its softer copper woven wire mesh counterpart. For these reasons, brass wire mesh is commonly used in filtration and separation applications, and it is used to fabricate discs, especially in instances when electrical conductivity is not critical.

In most cases, industrial grade brass woven wire mesh has a golden yellow color to it, and this unique color makes it appealing for use in architectural, decorative and even artistic applications. Most of the wire mesh specifications that we offer from stock can be cut to size with a pair of high-quality tin snips, or for many of the fine mesh options, a razor blade can be successfully used.



Material: CuZn40 CuZn37 CuZn35 CuZn30 CuZn20 CuZn5

Weaving methods: plain weave, twill weave


Our main specifications



Mesh Wire Dia. Opening(mm)
SWG mm inch
6 22 0.711 0.028 3.522
8 23 0.61 0.024 2.565
10 25 0.508 0.02 2.032
12 26 0.457 0.018 1.66
14 27 0.417 0.016 1.397
16 29 0.345 0.014 1.243
18 30 0.315 0.012 1.096
20 30 0.315 0.0124 0.955
22 30 0.315 0.0124 0.84
24 30 0.315 0.0124 0.743
26 31 0.295 0.0116 0.682
28 31 0.295 0.0116 0.612
30 32 0.247 0.011 0.573
32 33 0.254 0.01 0.54
34 34 0.234 0.0092 0.513
36 34 0.234 0.0092 0.472
38 35 0.213 0.0084 0.455
40 36 0.193 0.0076 0.442
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 37 0.173 0.0068 0.335
60×50 36 0.193 0.0076 -
60×50 37 0.173 0.0068 -
60 37 0.173 0.0068 0.25
70 39 0.132 0.0052 0.231
80 40 0.122 0.0048 0.196
90 41 0.112 0.0044 0.17
100 42 0.012 0.004 0.152
120×108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
140 46 0.061 0.0024 0.12
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 47 0.051 0.002 0.09
200 47 0.051 0.002 0.076

Other specifications according to your requirements.



Features of brass wire mesh(cloth):


1) Abrasion, corrosion, high temperature and spark resistance.
2) Acid, alkali resistance.
3) Durable, good ductility, tensile strength.
4) Allowing light, air, liquid to pass.
5) Discolor due to atmospheric condition.
6) Not suitable for salt water application.
7) Clean and install easily.
8) Brass mesh has lower electricity and heat conductivity but better abrasion and corrosion resistance, better tensile strength compared with copper mesh cloth.


Application of brass wire mesh(cloth):



Decorative mesh for lamps, cabinets and entertainment centers.
Plumbing screen, filter discs, fireplace screen, window and porch screen.
Filter in food, mine, paper making, machine, pharmaceutical, chemical, metallurgy, industry, electricity, commercial and so on.
Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.



Brass Wire Mesh/Brass Screen Mesh For Filtering Liquid and Gas with 6 to 160 mesh/inch


Packing:



Brass wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.



0.10 To 0.19mm H65 Brass Woven Wire Mesh Plain Weave 1



Please look at following drawing, we need material, wire diameter(D), opening(L), width x length and quantity to offer an exact quote.



180Mesh Plain Weave Brass Mesh with 0.05 & 0.06mm Wire, 36" & 48" Width
