C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06

  • C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06
  • C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06
  • C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Electricity And Heat Conductivity, Good Toughness Product Name Copper Woven Wire Mesh
Material Copper Wire Standard ASTM E2016-06
Hole Shape Square Mesh Counts 6-200 Per Inch
Woven Type Plain Weave, Twill Weave, Dutch Weave Roll Width 0.5m To 3m
Roll Length 30m Application Filtration
High Light

C11000 Metal Woven Wire Mesh

,

C10200 Metal Woven Wire Mesh

,

ASTM E2016-06 woven copper cloth
Leave a Message
Product Description

Copper Woven Wire Mesh With C10200 & C11000, Standard ASTM E2016-06



Copper mesh cloth introduction:



Copper mesh cloth can be distinguished by the size of hole. Copper mesh has large holes, copper wire cloth has very small holes, looks like cloth. They have smooth surface, bright color, good electricity and heat conductivity, good toughness, can resistant to corrosion, abrasion, wear, rust, salt air, brine, acid and alkali. They can be used for decorative mesh of house facades, walls, ceilings, lamps, cabinet, also can used as filtration screen in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.



Material: pure copper proportion 99.9%.

Weaving style: plain weave, twill weave, dutch weave.

Hole shape: square, rectangle.

Width of copper mesh/cloth: 0.5-3 m (can be customized).

Length of copper mesh/cloth: 30 m (can be customized).



Specifications of Copper Wire Mesh



Mesh/inch Wire diameter Opening (mm)
SWG mm Inch
2 15 1.8 0.071 10.9
2 16 1.6 0.063 11.1
3 16 1.6 0.063 6.866
4 16 1.6 0.063 4.75
4 18 1.2 0.047 5.15
4 20 0.91 0.036 5.44
4 22 0.711 0.028 5.64
5 20 0.91 0.036 4.17
6 21 0.8 0.031 3.433
6 22 0.711 0.028 3.522
8 22 0.711 0.028 2.46
8 23 0.61 0.025 2.565
8 24 0.511 0.022 2.616
8 26 0.457 0.018 2.7
10 23 0.61 0.025 1.91
10 24 0.511 0.022 1.98
10 25 0.508 0.02 2.032
10 27 0.417 0.016 2.1
12 24 0.511 0.022 1.52
12 26 0.457 0.018 1.66
14 25 0.508 0.02 1.3
14 26 0.457 0.018 1.357
14 27 0.417 0.016 1.397
16 29 0.345 0.013 1.243
16 30 0.315 0.012 1.27
18 26 0.457 0.018 0.98
18 30 0.315 0.012 1.096
18 31 0.295 0.01 1.16
20 27 0.417 0.016 0.86
20 30 0.315 0.012 0.955
20 31 0.295 0.01 1.02
20 32 0.274 0.009 0.88
22 30 0.315 0.012 0.84
22 32 0.274 0.009 0.88
24 28 0.35 0.014 0.71
24 30 0.315 0.012 0.743
24 33 0.254 0.008 0.8
26 31 0.295 0.01 0.682
28 31 0.295 0.01 0.612
30 29 0.345 0.013 0.52
30 32 0.274 0.009 0.573
30 33 0.254 0.008 0.64
30 34 0.234 0.007 0.613
32 33 0.254 0.008 0.54
34 34 0.234 0.007 0.513
36 34 0.234 0.007 0.472
38 35 0.213 0.005 0.455
40 31 0.295 0.01 0.38
40 36 0.193 0.008 0.442
40 38 0.152 0.006 0.485
42 36 0.193 0.0076 0.412
44 37 0.173 0.0068 0.404
46 37 0.173 0.0068 0.379
48 37 0.173 0.0068 0.356
50 32 0.229 0.009 0.28
50 34 0.234 0.007 0.32
50 37 0.173 0.0068 0.335
50 39 0.132 0.0052 0.378
60 × 50 36 0.193 0.0076 -
60 × 50 37 0.173 0.0068 -
60 33 0.191 0.0075 0.23
60 37 0.173 0.0068 0.25
60 40 0.122 0.0048 0.301
60 42 0.1 0.004 0.32
70 39 0.132 0.0052 0.231
70 41 0.112 0.0044 0.251
80 35 0.213 0.005 0.18
80 36 0.193 0.008 0.22
80 40 0.122 0.0048 0.196
80 42 0.102 0.004 0.216
90 41 0.112 0.0044 0.17
90 43 0.091 0.0036 0.191
100 36 0.193 0.008 0.15
100 42 0.102 0.004 0.152
100 43 0.091 0.0036 0.164
100 46 0.061 0.0024 0.198
120 × 108 43 0.091 0.0036 -
120 44 0.081 0.0032 0.131
120 45 0.071 0.0028 0.14
140 45 0.071 0.0028 0.11
140 46 0.061 0.0024 0.12
145 46 0.061 0.0024 0.1168
150 46 0.061 0.0024 0.108
160 46 0.061 0.0024 0.098
180 46 0.061 0.0024 0.081
180 47 0.051 0.002 0.09
200 47 0.051 0.002 0.076

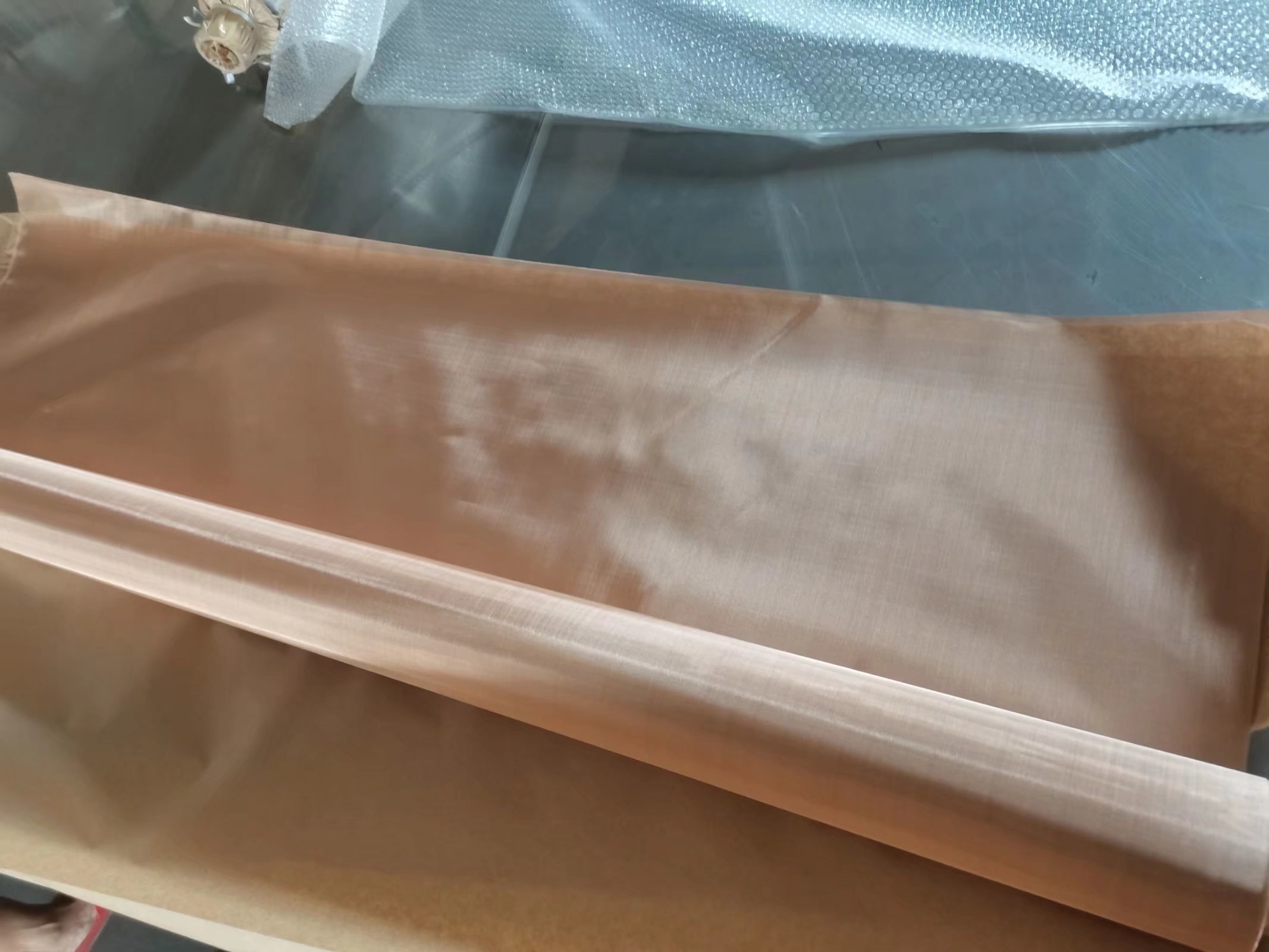

C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06 0

Long service life Copper Mesh Cloth for Shielding or Filtering with pure copper proportion 99.9% (2 to 200 mesh/inch)



Features of copper mesh and copper wire cloth



Smooth surface and bright color.

Good electricity and heat conductivity, good toughness.

Non-magnetic, well sound-proof.

Anti-sparking, anti-static.

Resistant to corrosion, abrasion, rust, salt air, brine, acid, alkali.

Low tensile strength, low hardness.

Soft, flexibility, bent easily, weld easily.

Easy to install, can be cut by scissors.

Long service life.



Applications of copper mesh and copper wire cloth



Prevention rats, mice, birds and insects as screen for window and door.

Used for filtering electron beam and electronic display screen.

Used in traveling water screen, radio frequency interference shielding, sugar and marine application.

Sieving and filtering granule, powder, porcelain clay and glass, chinaware printing, grain, filtering liquid and gas.

Screen filtration in mine, metallurgy, construction, pharmacy, printing, petroleum, rubber, paper making and food and other industries.

Used for gutter guards, plumbing screen, snail control, fireplace screen, RFI shielding, Faraday cage, house vents.

Decorative mesh for house facades, walls, ceilings, lamps, cabinet.

Used for sculptures and crafts.

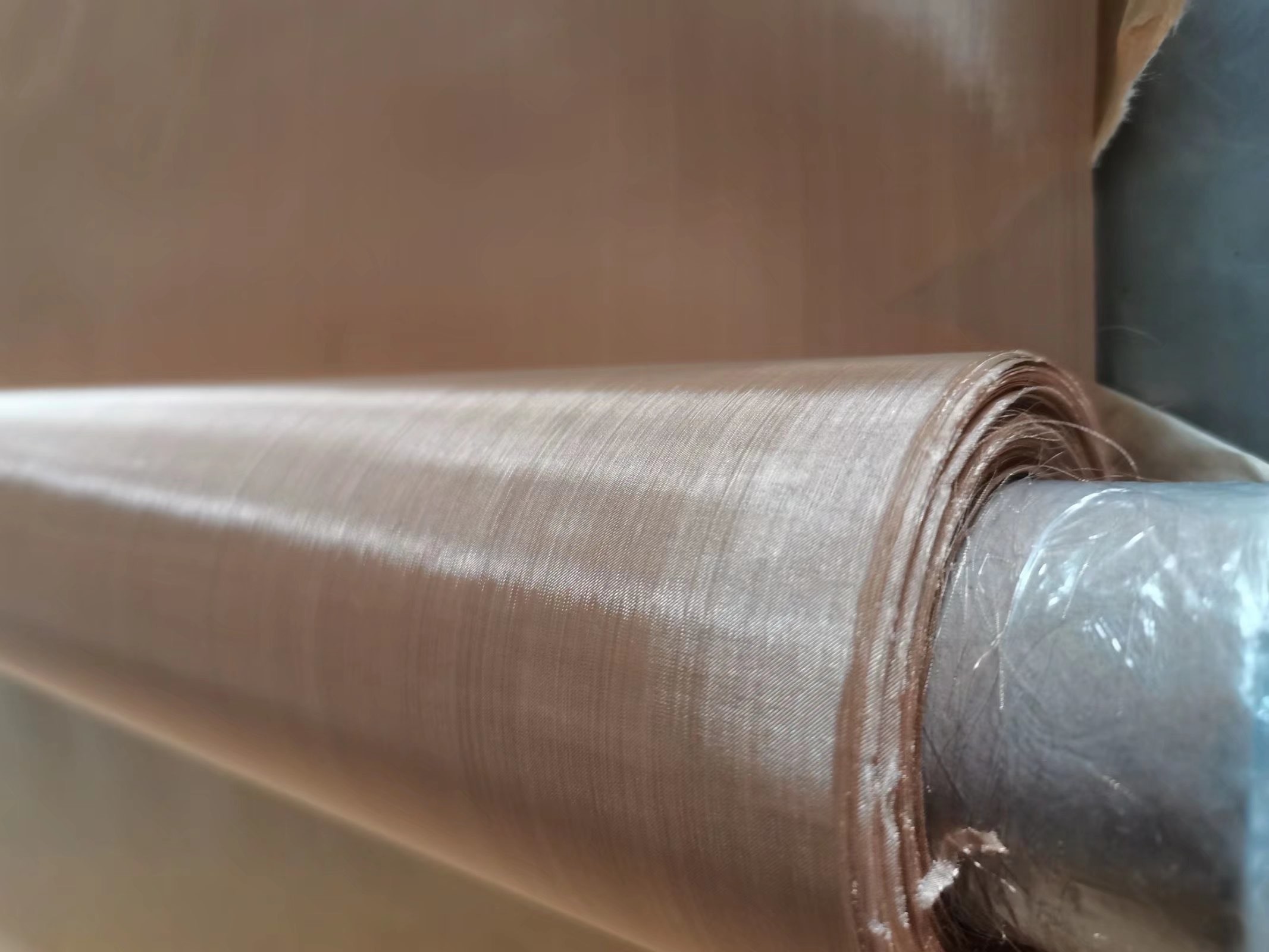

Long service life Copper Mesh Cloth for Shielding or Filtering with pure copper proportion 99.9% (2 to 200 mesh/inch)

Long service life Copper Mesh Cloth for Shielding or Filtering with pure copper proportion 99.9% (2 to 200 mesh/inch)


Packing:



C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06 4





Please look at following drawing, we need material, wire diameter(D), opening(L), width x length and quantity to offer an exact quote.

C10200 C11000 Metal Woven Wire Mesh ASTM E2016-06 5
