SS304 SS201 Stainless Steel Crimped Wire Mesh For Vibrating Screen In Mining Industry
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Heavy Impact Resistance | Product Name | Crimped Sieving Wire Mesh |
---|---|---|---|
Material | Stainless Steel, Carbon Steel | Hole Size | Square |
Weaving Type | Crimped | Aperture | 10mm To 50mm |
Wire Diameter | 2mm To 4mm | Application | Crimped Sieving Screen In Mining Industry. |
High Light | SS201 Stainless Steel Crimped Wire Mesh,SS304 Stainless Steel Crimped Wire Mesh,Crimped stainless wire mesh |

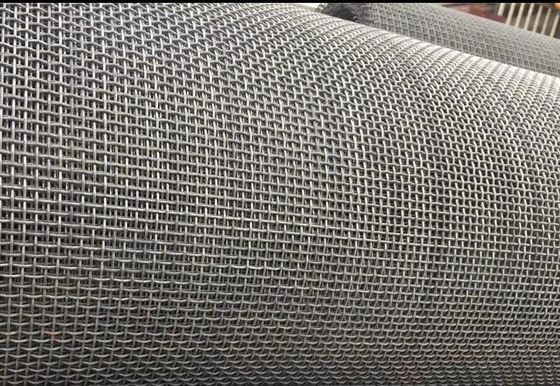

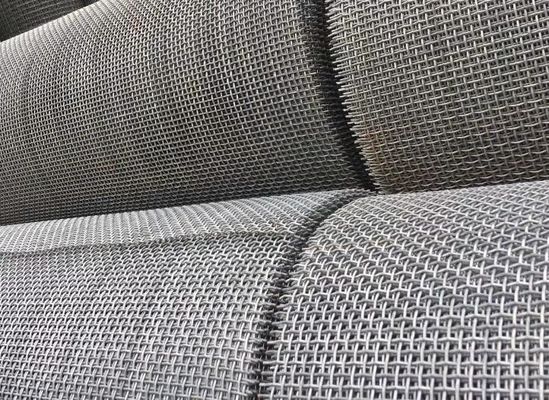

Crimped Sieving Wire Mesh Used for Vibrating Screen in Mining Industry
Stainless Steel Crimped Sieving Screen
Crimped wire screen can withstand the rigorous treatment and survive the day and night attrition experienced in quarries, sand and gravel pits and all types of ore treatment. Crimped wire screen is renowned for their extremely high resistance to abrasion. Close checks on raw materials, production processes and constant quality control at all stages of manufacture guarantee a top quality finished product.
Single intermediate crimp screen, double intermediate crimp screen, lock crimp screen, flat top screen, pressure welded screen.
Crimped wire mesh is used as fence or filters in a lot of industries; Heavy Duty Crimped wire mesh are also named Quarry Mesh, it is mostly used as screen in mining, coal factory.
Wire Mesh Vibrating Screen Specifications:
Aperture | Wire Diameter | Open Area Rate | ||
mm | Inch | mm | Inch | % |
10.0 | 0.394 | 2.0 | 0.079 | 69.44 |
12.0 | 0.472 | 3.0 | 0.118 | 64.00 |
15.0 | 0.519 | 2.5 | 0.098 | 73.47 |
20.0 | 0.787 | 3.0 | 0.118 | 75.61 |
25.0 | 0.984 | 4.0 | 0.157 | 74.32 |
30.0 | 1.181 | 3.0 | 0.118 | 82.64 |
40.0 | 1.575 | 5.0 | 0.197 | 79.01 |
50.0 | 1.969 | 4.0 | 0.157 | 85.73 |
Other Specifications according to your requirements.
Wire Materials:
stainless steel wire, High Tensile Steel Wire
Features:
Wear and abrasion resistance;
Heavy impact resistance;
High temperature resistance;
High tensile strength and toughness;
Long service life;
Various opening size for choice to fit almost equipments;
The stability of the woven wire vibrating screen can improve the separating efficiency.
Application:
Screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat. Pre-crimped weaves are preferred for vibrating screens and many other applications where sizing is critical.
Packaging:
