Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen

  • Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen
  • Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen
  • Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Crimped Wire Mesh Hole Size Retanglular
Technique Pre- Crimped Then Woven Opening Size From 1.0×4.0mm To 10.0×50.0mm
Wire Diameter From 0.8mm To 5.0mm. Roll Width 1m, 1.22m, 1.5m To 4m
Roll Length 15m, 30m To 60m. Panel Width 0.5m, 0.914m, 1m, 1.22m To 2m
Panel Length 1m, 1.22m, 1.5m To 6m Application Decorative, Fencing, Ming, Etc
High Light

1.22m Stainless Steel Mesh Screen

,

1m Stainless Steel Mesh Screen

,

Rectangle Hole stainless steel metal mesh
Leave a Message
Product Description

Pre Crimped Facade Rectangle Hole for Facade Stainless Steel Crimped Wire Mesh



Slot Hole Crimped Wire Mesh Introduction:



Slot hole crimped wire mesh/screen is produced on looms as screen panels, it is a special style hat the warp wire and weft wire are pre crimped by different weaving process before weaving, that create a rectangular hole and ensure maximum open areas. Crimped wire mesh are most widely used in the agricultural and construction industries.



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 201, 202, 304, 316, 321, 410, 430.

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Features:



Openings is rectangular hole;
Economical manufacturing, accurate opening size;
Large opening area, avoid binding or clogging;
Strong wear resistance and firm structure.



Usage:



Architectural & decorative industries, for the screen of facade and fence.
Agricultural & food industries, for pig raising screens.
Mining & aggregate industries, for the screens of vibrating machine.

Poultry breeding.



Specifications:


Opening Sizes: from 1.0×4.0mm to 10.0×50.0mm.

Wire Diameters: from 0.8mm to 5.0mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.

Other Specifications according to your requirements.



Opening(L1×L2) Wire Diameter Open Area
mm Inch mm Inch %
1.0×4.0 0.039×0.157 0.8 0.031 46.30
1.0×5.0 0.039×0.197 1.0 0.039 41.67
1.2×7.0 0.047×0.276 1.0 0.039 47.73
1.5×4.5 0.059×0.177 1.0 0.039 49.09
2.0×6.0 0.079×0.236 1.2 0.047 52.08
2.0×14.0 0.079×0.551 2.0 0.079 43.75
2.0×20.0 0.079×0.787 1.5 0.059 53.16
2.5×7.5 0.098×0.295 1.2 0.047 58.25
3.0×12.0 0.118×0.472 2.0 0.079 51.43
4.0×10.0 0.157×0.394 2.0 0.079 55.56
4.0×16.0 0.157×0.630 2.5 0.098 53.22
5.0×15.0 0.197×0.591 2.5 0.098 57.14
8.0×18.0 0.315×0.709 3.0 0.118 62.34
8.0×18.0 0.315×0.709 3.5 0.138 58.24
10.0×20.0 0.394×0.787 4.0 0.157 59.52
10.0×50.0 0.394×1.969 4.0 0.157 66.14
10.0×50.0 0.394×1.969 5.0 0.197 60.61

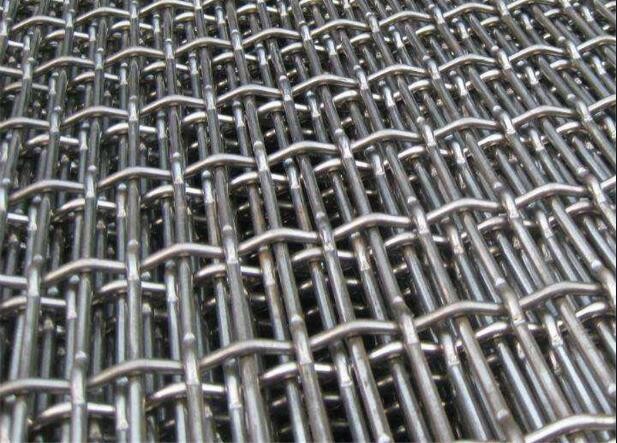

Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen 0



Packing: Warped with plastic film or waterproof paper, then in wooden case or pallets.

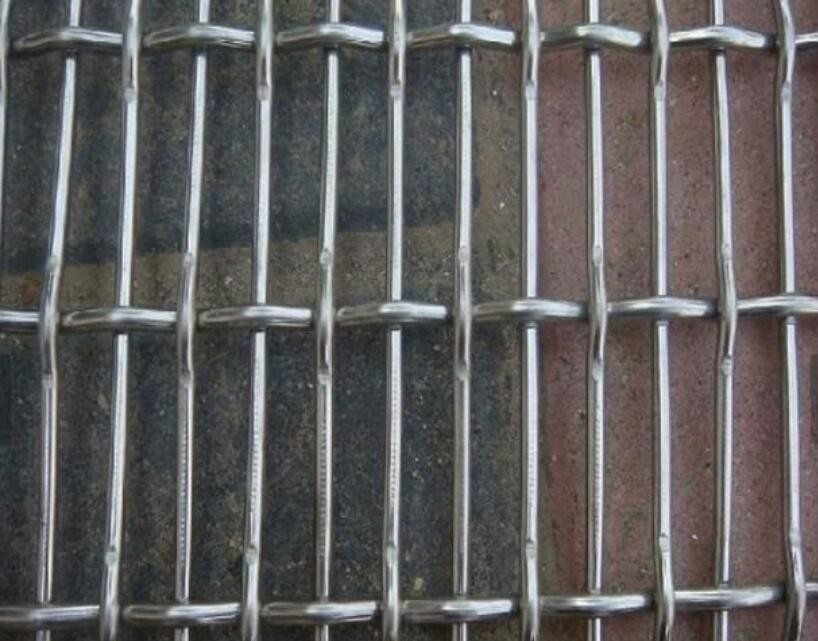

Rectangle Hole 1m 1.22m Stainless Steel Mesh Screen 1





Material, wire diameter(D), Opening(L1 and L2), Width X Length and quantity are need to quote an exact price for you.

Rectangle/Slot Hole Crimped Wire Mesh/Screen for Facade, Vibering Screen
