Aluminum 0.045"X0.053" Metal Woven Wire Mesh 18x16 Mesh Per Inch For Insect Screen
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Aluminum Wire Mesh | Material | Aluminum |
---|---|---|---|
Surface | Bright Silver Or Epoxy | Mesh Counts | 18x16 |
Wire | 0.0011" | Opening | 0.045" X 0.053" |
Roll Width | 0.6m, 0.9m, 1.2m, Etc | Roll Length | 30m, 60m, Etc |
Feature | Light Weight | Usage | Insect Screen |
High Light | 0.053" Metal Woven Wire Mesh,0.045" Metal Woven Wire Mesh,16 Mesh aluminum wire mesh |

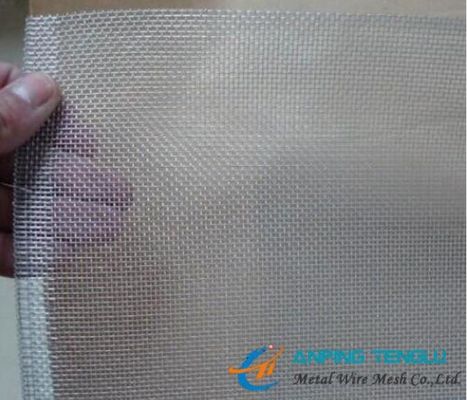

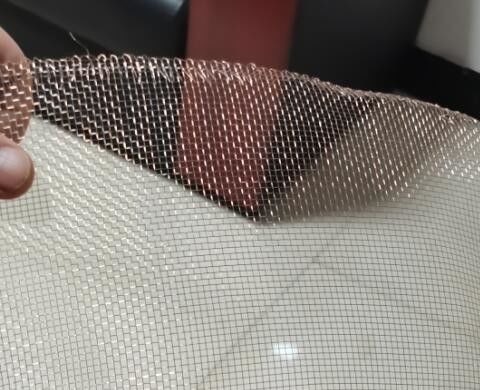

Aluminum Wire Mesh Plain Weave, 18x16 Mesh per Inch, for insect screen
Aluminum Wire Mesh Insect Screen Introduction:
Aluminum window screen is woven from aluminum wire or aluminum-magnesium alloy wire with square opening mesh. Aluminum insect screen is also called magnalium wire screen. Its natural color is silver white. Aluminum insect screen an be coated with epoxy and PVC to green, silver gray, yellow and blue, or with charcoal coated in black. 18 x 16 mesh per inch is the top bulk processed.
Square opening aluminum insect screen is the most popular material used for window or door screening mesh, and screen enclosures against bugs and insects in hotel, restaurant, communal building and residential houses.
Surface: Can be original aluminum color or epoxy coated.
Material | aluminum-magnesium alloy wire |
Mesh Counts | 18*16 |
Wire Diameter | 0.011" |
Opening | 0.045" x 0.053" |
Weave Type | Plain Weave |
Packing: Water-proof paper first then plastic film, in wooden case or pallets. | |
Nearest Port: Tianjin(By Sea); Beijing(By Air). |
Features:
At room temperature does not fall off, high temperature 120°C does not fade, anti-acid and anti-alkali, corrosion resistance, not react with oxidants, suitable for humid environment, not rust or mildew, light weight, good air and light flow, has good toughness and high strength.
Applications:
Aluminum wire mesh with 16 mesh, 18 mesh and 20 mesh are widely used for window or door insect screens to prevent insects and bugs from entering.
Specifications:
Mesh |
Wire Diameter (mm) |
Surface Treatment |
14 × 14 | 0.345 |
Natural bright surface;
Black epoxy coating;
Black charcoal coated;
PVC coated in different color. |
14 × 14 | 0.315 | |
14 × 14 | 0.295 | |
14 × 14 | 0.274 | |
16 × 14 | 0.274 | |
16 × 16 | 0.254 | |
18 × 14 | 0.234 | |
18 × 16 | 0.213 | |
18 × 18 | 0.193 | |
20 × 20 | 0.193 | |
22 × 22 | 0.173 | |
24 × 24 | 0.152 |
Width: 0.6m, 0.8m, 1.0m, 1.2m, 1.5m, 1.8m, 2.0m.
Roll length: 25m, 30m, 50m.
Other specifications according to your requests.
Packing:
