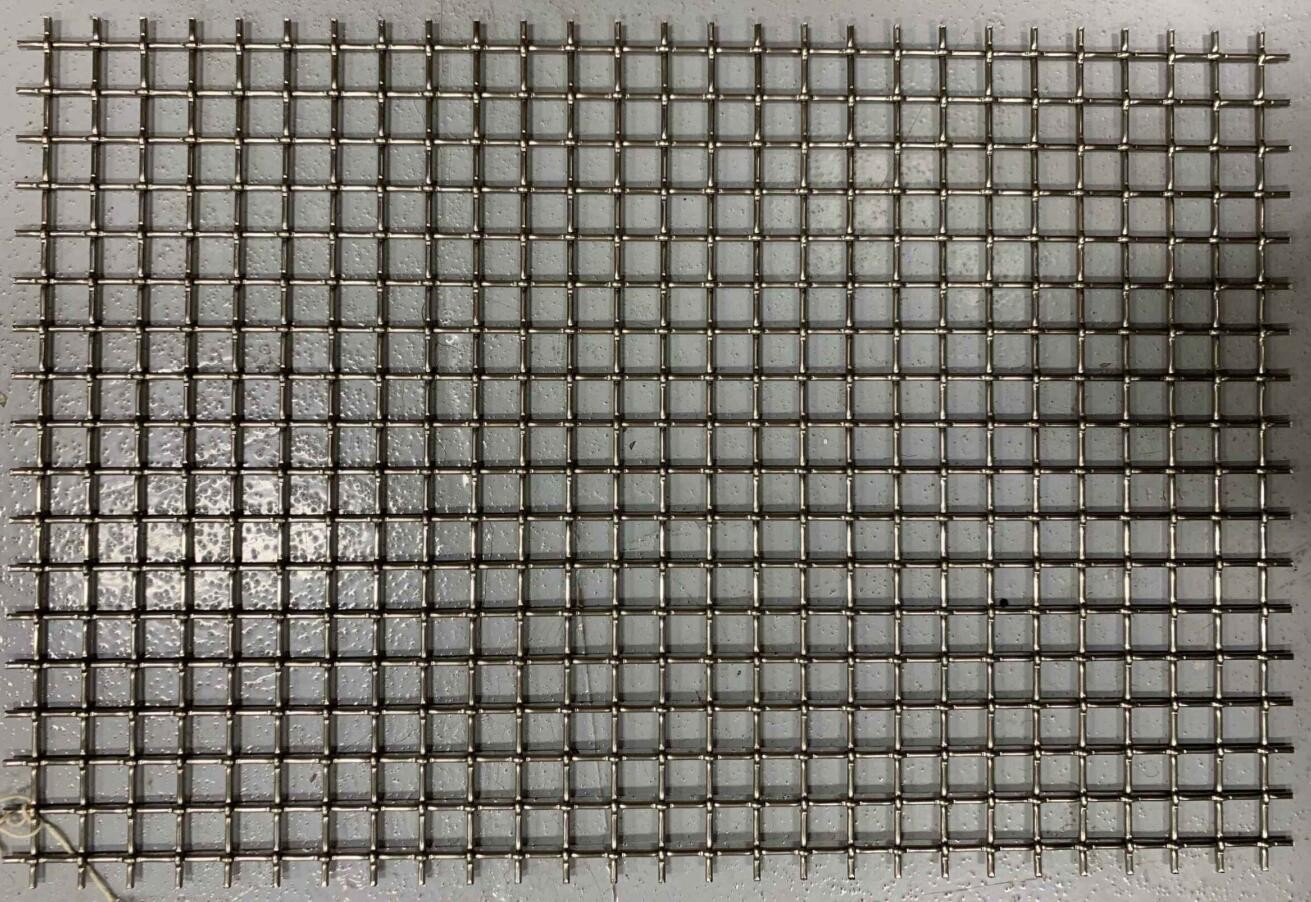

Anti Rust 0.8 To 4.8mm Stainless Steel Netting Mesh Firm Structure

  • Anti Rust 0.8 To 4.8mm Stainless Steel Netting Mesh Firm Structure
  • Anti Rust 0.8 To 4.8mm Stainless Steel Netting Mesh Firm Structure
  • Anti Rust 0.8 To 4.8mm Stainless Steel Netting Mesh Firm Structure
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 100Pcs
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flat Surface Product Name Lock Crimped Wire Mesh
Material Stainless Steel Weaving Type Lock Crimped
Surface Bright Silver Opening 4mm To 100mm
Wire Diameter 0.8mm To 4.8mm Width 1m, 1.22m, 1.5m To 4m.
Length 15m, 30m To 60m Applications Architecture
High Light

4.8mm stainless steel netting mesh

,

0.8mm stainless steel netting mesh

,

Anti Rust stainless steel square wire mesh
Leave a Message
Product Description



Stable Structure Anti- Rust Firm Structure Stainless Steel Crimped Wire Mesh



Lock Crimped Wire Mesh Introduction:



Lock crimped is a refinement of the intermediate crimped. It can lock the wire at their position through pressed at each side of the raised wire. This structure can add the stability of the crimped woven wire mesh.

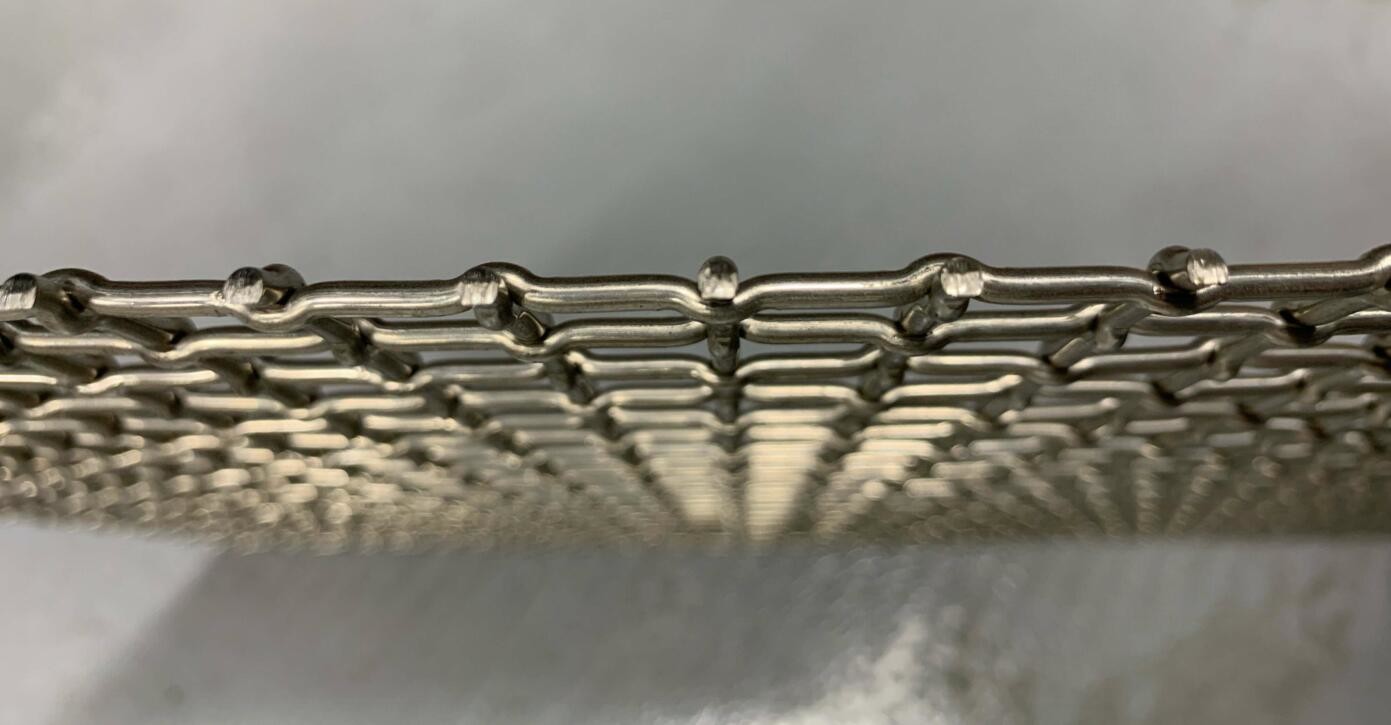

“Lock crimp” is a crimp type that is commonly employed when woven wire mesh is manufactured. Similar to intermediate crimp, “lock crimp” is also comprised of pre-crimped wires. The distinguishing feature of lock crimp is the bump or knuckle that forms over each intersecting set of wires. These knuckles lock the mesh in place and create an extremely rigid product. And finally, the wires on a lock crimp are straight between intersections, while the wires with the intermediate crimp are corrugated.



Lock Crimp Wire Meshes are mainly used in the architectural & decorative industries, for the screen of window, fence and ceiling; In the mining & aggregate industries, for the quarrying screen of vibrating machine; In the petrochemical & chemical industries, for test sieve.



Specifications:


Opening Sizes: from 4mm to 100mm.

Wire Diameters: from 0.8mm to 4.8mm.

Roll Width: 1m, 1.22m, 1.5m to 4m.

Roll Length: 15m, 30m to 60m.

Panel Width: 0.5m, 0.914m, 1m, 1.22m to 2m.
Panel Length: 1m, 1.22m, 1.5m to 6m.



Lock Crimp Wire Mesh
Opening Wire Diameter Open Area
mm Inch mm Inch %
4.0 0.157 1.0 0.039 64.00
0.8 0.031 69.44
5.0 0.197 1.2 0.047 65.04
1.0 0.039 69.44
0.8 0.031 74.32
6.0 0.236 2.0 0.079 56.25
1.8 0.071 59.17
1.6 0.063 62.33
1.4 0.055 65.74
1.2 0.047 69.44
1.0 0.039 73.47
8.0 0.315 2.0 0.079 64.00
1.8 0.071 66.64
1.6 0.063 69.44
1.4 0.055 72.43
1.2 0.047 75.61
1.0 0.039 79.01
10.0 0.394 2.5 0.098 64.00
2.0 0.079 69.44
1.8 0.071 71.82
1.6 0.063 74.32
1.5 0.059 75.61
1.4 0.055 76.95
1.2 0.047 79.72
1.0 0.039 82.64
12.0 0.472 4.0 0.157 56.25
3.5 0.138 59.93
2.6 0.102 67.55
1.5 0.059 79.01
12.7 1/2” 4.0 0.157 57.83
3.5 0.138 61.46
3.0 0.118 65.43
2.5 0.098 69.81
2.0 0.079 74.64
1.8 0.071 76.71
15.0 0.591 4.8 0.189 57.39
4.5 0.177 59.17
4.0 0.157 62.33
3.5 0.138 65.74
3.0 0.118 69.44
2.6 0.102 72.63
2.5 0.098 73.47
2.0 0.079 77.85
19.0 0.748 4.8 0.189 63.73
4.0 0.157 68.24
3.5 0.138 71.30
20.0 0.787 4.8 0.189 65.04
4.5 0.177 66.64
4.0 0.157 69.44
3.5 0.138 72.43
3.0 0.118 75.61
2.5 0.098 79.01
2.0 0.079 82.64
25.0 0.984 4.8 0.189 70.37
3.5 0.138 76.94
3.0 0.118 79.71
2.0 0.079 85.73
25.4 1” 4.8 0.189 70.74
4.5 0.177 72.16
4.0 0.157 74.64
3.5 0.138 77.25
3.0 0.118 79.99
2.5 0.098 82.88
30.0 1.181 4.8 0.189 74.32
4.5 0.177 75.61
4.0 0.157 77.85
3.5 0.138 80.20
3.0 0.118 82.64
2.5 0.098 85.21
38.1 1-1/2” 4.8 0.189 78.87
4.5 0.177 79.99
4.0 0.157 71.90
3.5 0.138 83.88
3.0 0.118 85.93
2.5 0.098 88.06
50.8 2” 4.8 0.189 83.48
4.5 0.177 84.39
4.0 0.157 85.93
3.5 0.138 87.52
3.0 0.118 89.16
70.0 2.756 4.8 0.189 87.58
76.2 3” 4.8 0.189 88.50
4.5 0.177 89.16
4.0 0.157 90.27
3.5 0.138 91.41
88.9 3-1/2” 3.5 0.138 92.57
101.6 4” 4.8 0.189 91.18

Other Specifications according to your requirements.



Stainless Steel Lock Crimped Wire Mesh, 4mm-100mm Hole, 0.8-4.8mm Wire



Weave Pattern: Lock Crimped

Stainless Steel Lock Crimped Wire Mesh, 4mm-100mm Hole, 0.8-4.8mm Wire



Material:



Standard materials of flat top crimped wire mesh are low/mild/high carbon steel and stainless steel 304, 304L, 316, 316L

Besides above following material available:
Copper: brass, pure copper, phosphor bronze
Aluminum: 1050, 1060, 1100, 5052, 5056
Nickel: pure nickel, nickel alloy, monel



Stainless Steel Lock Crimped Wire Mesh, 4mm-100mm Hole, 0.8-4.8mm Wire

Stainless Steel Lock Crimped Wire Mesh, 4mm-100mm Hole, 0.8-4.8mm Wire



Features:



Wire diameter and mesh with ratio reasonable;

Flat surface;

Strong wear resistance;

Corrosion and rust resistance;
Acid and alkali resistance;
Pre-weaving crimped wire, with strong structure.



Usage:



Car grille
Architecture
Decorative grill
Vibrating screens

Machine guard

Test sieve
Fence
