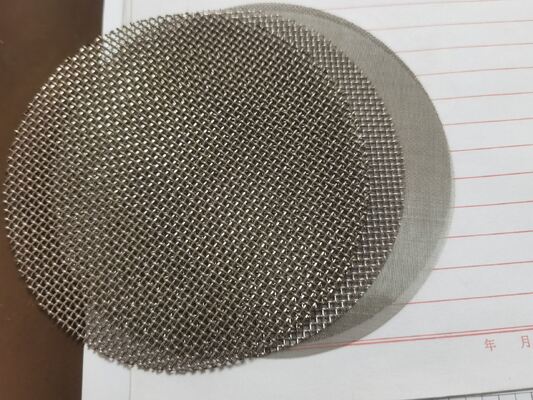

SS304 Stainless Steel Single-Layer Wire Mesh Filter Disc with High Temperature Resistance
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1000Pieces |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Delivery Time | 2 weeks |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 3000 rolls per month |
Product Details
| Features | High Temperature Resistance And Corrosion Resistance | Product Name | Extruder Screen Discs Filter |
|---|---|---|---|
| Material | Stainless Steel, Other Materials Can Also Be Supplied. | Disc Diameter | 20mm - 600mm. |
| Technique | Plain Weave, Plain Dutch Weave Or Twilled Weave. | Layer | Single Layer Or Multi Layers. |
| Shape | Round, Oval, Rectangular Or Other Special Designed Shapes. | Useage | Extruder Screen Is Widely Used In The Field Of Petroleum, Chemical Industry, Chemical Fiber, Rubber, Metallurgy, Medicine And Food Industries. |
| Highlight | SS304 Stainless Steel Wire Mesh Filter Disc,Single-Layer Stainless Steel Mesh Disc,High Temperature Resistance Extruder Screen Disc |
||
Product Description
SS304 Stainless Steel Woven Wire Mesh Filter Discs (Single‑Layer)
Product Overview
Our single-layer 304 stainless steel woven wire mesh filter discs are precision cut from high-grade SS304 woven mesh, available in custom circular shapes and sizes. Featuring stable square-hole weave structure, smooth flat surface and accurate aperture size, these filter discs deliver consistent filtration performance for solid-liquid and solid-gas separation.
Made of 304 stainless steel material, the filter discs offer excellent corrosion resistance, rust-proof properties, high temperature tolerance and good mechanical strength. They resist acid and mild alkali, can be repeatedly cleaned and reused, and maintain structural integrity under normal working pressure.
Key Features
- Material: Grade 304 stainless steel, food-safe available
- Structure: Single-layer plain woven mesh, precise weaving
- Customizable: Various mesh counts, diameters and shapes on request
- High durability: Wear-resistant, pressure-resistant, reusable after cleaning
- Smooth edge: Neat cutting, no burrs
- Easy installation: Flat circular discs for quick assembly into filters, housings
Applications
- Liquid filters
- Beverage & food processing
- Chemical industry
- Machinery equipment
- Oil-water separation
- Water treatment
- Plastic extrusion
- Laboratory filtering
- General-purpose strainer elements
Specifications
Mesh size: 10-500 mesh optional
Shape: Circular discs as shown; special shapes acceptable
Edge treatment: Plain cut (no edge wrapping optional)
Material alternative: SS316 upon customer requirement
| Mesh | Wire Dia. mm | Aperture Size | Open Area % |
|---|---|---|---|
| 10 × 10 | 0.711 | 1.829 mm | 51.8 |
| 14 × 14 | 0.457 | 1.357 mm | 55.9 |
| 16 × 16 | 0.457 | 1.131 mm | 50.7 |
| 20 × 20 | 0.559 | 0.711 mm | 31.4 |
| 20 × 20 | 0.457 | 0.813 mm | 41 |
| 24 × 24 | 0.376 | 0.682 mm | 41.4 |
| 30 × 30 | 0.376 | 0.531 mm | 34.2 |
| 30 × 30 | 0.31 | 0.536 mm | 40 |
| 40 × 40 | 0.274 | 0.361 mm | 32.3 |
| 50 × 50 | 0.193 | 0.335 mm | 43.6 |
| 60 × 60 | 0.193 | 0.230 mm | 29.8 |
| 80 × 80 | 0.122 | 0.196 mm | 37.9 |
| 100 × 100 | 0.102 | 0.152 mm | 36 |
| 120 × 120 | 0.091 | 0.120 mm | 31.8 |
| 150 × 150 | 0.071 | 0.088 mm | 29.6 |
| 200 × 200 | 0.05 | 0.077 mm | 36.76 |
| 250 × 250 | 0.04 | 0.062 mm | 36.76 |
| 300 × 300 | 0.04 | 0.045mm | 27.83 |
| 325 × 325 | 0.035 | 0.043mm | 30.49 |
| 400 × 400 | 0.028 | 0.036mm | 31.25 |
| 500 × 500 | 0.025 | 0.026mm | 25.79 |
Hot Specifications
10-12 micron screen
Dutch weave screen of mesh size: 20 × 60 × 100 size
Screen mesh, 120 × 120 mesh
Extruder Screens
Plain steel, diam. 220mm, 30 mesh (wire 0.30mm)
Plain steel, diam. 170mm, 30 mesh (wire 0.30mm)
Plain steel, diam. 170mm, 40 mesh (wire 0.25mm)
Product Images
What specs are needed to quote?
Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
