40 x 200 meshHigh Strength Stainless Steel Dutch Wire Mesh with Excellent Filter Performance and Corrosion Resistance for Industrial
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1 roll |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Supply Ability | 3000 rolls per month |
Product Details
| Features | Firm Structure | Product Name | Stainless Steel Dutch Wire Mesh |
|---|---|---|---|
| Material | Stainless Steel 304 316 | Cert | ISO9001 |
| Max Counts | 40x 200 | Width | 0.5m To 2m |
| Length | 30m Or Customized | Color | Silver |
| Application | Filtration | Weave Style | Plain Dutch Weave |
| Standard | AISI, DIN, SUS, Etc | Weavestyle | Plain Dutch Weave |
| Roll Length | 120', 60', Or Cutsomed | Durability | Long-lasting And Wear-resistant |
| Surface Treatment | Pickling And Passivation, Polishing. | ||
| Highlight | Stainless Steel Dutch Weave Wire Cloth,100 Micron Filter Mesh,Wear Resistant Wire Mesh |
||
Product Description

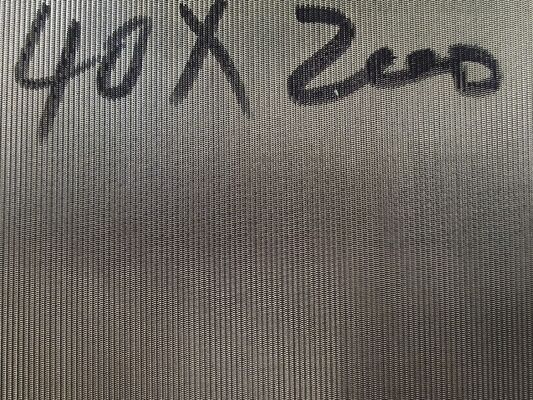

40 x 200 meshHigh Strength Stainless Steel Dutch Wire Mesh with Excellent Filter Performance and Corrosion Resistance for Industrial
Product Overview
This 40×200 mesh high-strength stainless steel Dutch wire mesh is a precision woven industrial filter medium manufactured via professional Dutch weaving technology. Combining rigid warp wire density (40 mesh) and fine weft wire density (200 mesh), the mesh features a dense, staggered pore structure that balances exceptional mechanical strength and ultra-fine filtration performance. Made of premium stainless steel raw materials, it delivers outstanding corrosion resistance, oxidation resistance and durability, serving as a reliable filtration solution for complex and harsh industrial working conditions.
Wire Materials:
304, 316, 304L, 316L.
Advantages:
Our 40×200 mesh high strength stainless steel Dutch wire mesh integrates high-precision filtration, strong corrosion resistance, structural robustness and cost efficiency. The professional Dutch weaving technology ensures consistent pore uniformity and stable filtration effect; premium stainless steel raw materials guarantee long-term service in harsh industrial environments. Custom specifications, size cutting and deep processing services are available to meet personalized filtration demands for different industries and equipment.
Weaving Patterns:
dutch weave.
Packing:
stainless steel mesh made in small rolls,outside wooden cases.
Main Features:
- Chemical Industry: Filtration of chemical solvents, corrosive liquid purification, catalyst recovery and slurry separation
- Food & Beverage: Juice, syrup, edible oil filtration, dairy product impurity removal (316L grade for food safety compliance)
- Petroleum & Gas: Oilfield produced water filtration, hydraulic oil purification, pipeline impurity interception
- Pharmaceutical Industry: Sterile liquid filtration, raw material slurry fine screening, pharmaceutical wastewater treatment
- Water Treatment: Industrial wastewater fine filtration, seawater desalination pre-filtration, circulating water purification
- Mechanical & Hydraulic: Hydraulic system filter elements, lubricating oil filtration, dust removal for pneumatic systems
- Other Fields: Paint & coating filtration, mining slurry separation, electronic industry chemical liquid purification
Applications:
+ Superior Filtration Performance
The asymmetric 40×200 mesh Dutch weaving structure forms irregular tortuous flow channels, which effectively intercept micro solid particles, impurities and suspended matter. Compared with standard square wire mesh, it provides higher filtration accuracy and better particle retention rate, avoiding material leakage while maintaining stable fluid permeability. It is ideal for fine filtration requirements that ordinary woven mesh cannot meet.
+ Outstanding Corrosion & Oxidation Resistance
Constructed with food-grade and industrial-grade stainless steel (304/316L optional), the mesh resists corrosion from acids, alkalis, salt water, organic solvents and humid environments. It maintains stable physical and chemical properties under high temperature and corrosive working conditions, preventing rust, degradation and performance attenuation, and extending service life significantly compared with carbon steel mesh.
+ High Mechanical Strength & Deformation Resistance
Benefiting from thickened warp wire design and compact Dutch weaving craft, the mesh possesses excellent tensile strength and pressure resistance. It can withstand high fluid pressure, mechanical extrusion and frequent backwashing without mesh distortion, hole expansion or wire breakage. The integral structural stability reduces replacement frequency and lowers overall operating costs.
+ Easy Processing & Reusability
The stainless steel mesh can be easily cut, rolled, welded and molded into filter discs, filter tubes, filter screens and customized filter components. Its smooth electropolished surface is resistant to dirt adhesion, enabling easy cleaning via ultrasonic washing, high-pressure water flushing and chemical cleaning. The reusable design greatly reduces consumable costs for industrial production lines.
Details sheet:
| Sheet2: Specifications of Twill Dutch Weave Wire Mesh | ||||
|
Mesh/Inch Warp×Weft |
Wire Diameter Warp×Weft (mm) |
Aperture Size μm |
Weight kg/㎡ |
Thickness (mm) |
| 20×270 | 0.25×0.2 | 119 | 3.14 | 0.65 |
| 20×200 | 0.355×0.28 | 118 | 4.58 | 0.915 |
| 24×300 | 0.28×0.18 | 110 | 3.01 | 0.64 |
| 20×150 | 0.45×0.355 | 101 | 6.02 | 1.16 |
| 30×340 | 0.28×0.16 | 89 | 2.84 | 0.60 |
| 30×270 | 0.28×0.20 | 77 | 3.41 | 0.68 |
| 40×540 | 0.18×0.10 | 70 | 1.73 | 0.38 |
| 40×430 | 0.18×0.125 | 63 | 2.09 | 0.43 |
| 50×600 | 0.125×0.09 | 51 | 1.47 | 0.305 |
| 50×500 | 0.14×0.11 | 47 | 1.83 | 0.364 |
| 65×600 | 0.14×0.09 | 36 | 1.59 | 0.32 |
| 70×600 | 0.14×0.09 | 31 | 1.61 | |
| 78×760 | 0.112×0.071 | 1.25 | 0.254 | |
| 78×680 | 0.112×0.08 | 29 | 1.37 | 0.272 |
| 80×680 | 0.112×0.08 | 28 | 1.38 | |
| 90×850 | 0.10×0.063 | 26 | 1.12 | 0.226 |
| 90×760 | 0.10×0.071 | 24 | 1.23 | 0.242 |
| 100×850 | 0.10×0.063 | 22 | 1.14 | 0.226 |
| 130×1500 | 0.063×0.036 | 21 | 0.64 | 0.135 |
| 100×760 | 0.10×0.071 | 20 | 1.25 | 0.242 |
| 130×1200 | 0.071×0.045 | 18 | 0.80 | 0.161 |
| 130×1100 | 0.071×0.05 | 17 | 0.87 | 0.171 |
| 150×1400 | 0.063×0.04 | 15 | 0.71 | 0.143 |
| 160×1500 | 0.063×0.036 | 0.67 | 0.135 | |
| 165×1500 | 0.063×0.036 | 14 | ||
| 174×1700 | 0.063×0.032 | 13 | 0.62 | 0.127 |
| 165×1400 | 0.063×0.04 | 0.73 | 0.143 | |
| 174×1400 | 0.063×0.04 | 11 | 0.74 | |
| 203×1600 | 0.05×0.032 | 10 | 0.58 | 0.114 |
| 216×1800 | 0.045×0.03 | 0.53 | 0.105 | |
| 203×1500 | 0.056×0.036 | 9 | 0.67 | 0.128 |
| 250×1900 | 0.04×0.028 | 8 | 0.51 | 0.096 |
| 250×1600 | 0.05×0.032 | 0.63 | 0.114 | |
| 285×2100 | 0.036×0.025 | 7 | 0.44 | 0.086 |
| 300×2100 | 0.036×0.025 | 6 | ||
| 317×2100 | 0.036×0.025 | 5 | ||
| 325×2300 | 0.036×0.024 | 4 | ||
| 363×2300 | 0.032×0.022 | 0.40 | 0.076 | |
|
Item |
Specification |
|---|---|
|
Mesh Count |
Warp: 40 mesh; Weft: 200 mesh (Dutch weave) |
|
Weaving Type |
Dutch Twill Weave / Plain Dutch Weave (customizable) |
|
Material Grade |
304 / 316L Stainless Steel (optional) |
|
Pore Size |
Ultra-fine customized pore for precise particle retention |
|
Wire Diameter |
Heavy-duty warp wire + fine weft wire for high tensile strength |
|
Tensile Strength |
High strength, resistant to deformation under pressure |
|
Standard Width |
1m / 1.22m / 1.5m (custom cut available) |
|
Surface Treatment |
Electropolished / Plain woven finish |
Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.
Our other products
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
