0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm

  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
  • 0.35mmx0.25mm SS304 Stainless Steel Wire Mesh 0.35mmx0.25mm
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 roll
Price Negotiable
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month
Product Details

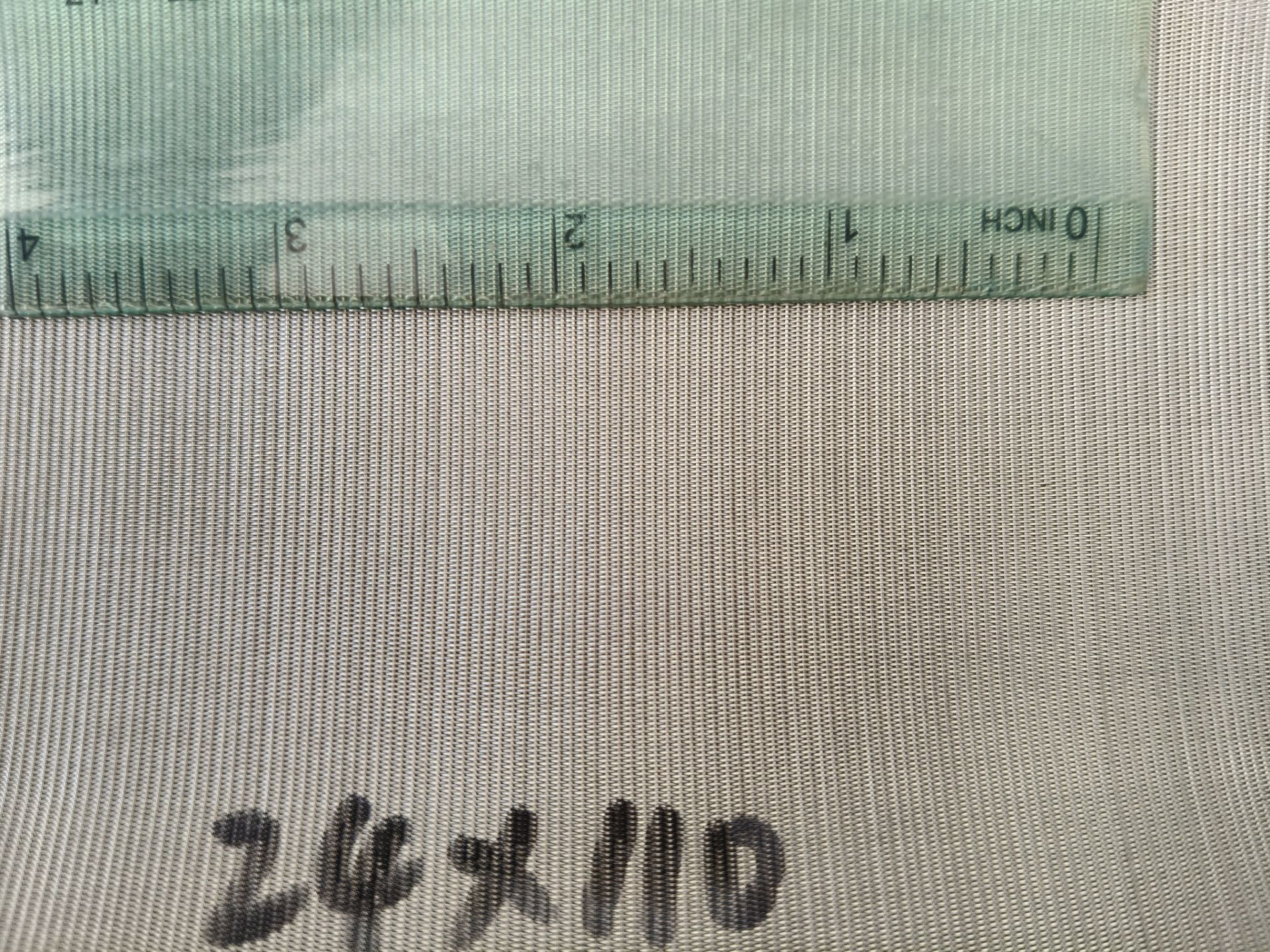

Production Name Stainless Steel Dutch Wire Mesh 24 X 110 Material Stainless Steel 304, 316
Woven Type Dutch Weave Mesh Count 24 X 110
Wire Diameter 0.35mm X 0.25mm Width 0.5m To 2m
Length 30m Application Industrial Filtration
Highlight

SS304 stainless steel wire mesh

,

0.35mmx0.25mm wire mesh

,

stainless steel Dutch wire mesh
Leave a Message
Product Description

The structure of Dutch woven cloth has different mesh counts in weft and warp direction. Suitable match of wire dia. and mesh count can realize the filtration density that are unrealizable for square mesh. Common dutch woven wire cloth has more weft wires than warp wires, and the warp wire dia. is usually bigger than that of the warp wires; Due to its unique structure and weave pattern, dutch woven wire cloth is more used in fine filtration than normal s.s. square mesh.Present densest dutch woven cloth can have the mesh opening size as small as 3 microns.So we also call dutch woven mesh micron-grade filter cloth.



Plain Dutch weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.





Plain Dutch Weave Spections:



Mesh Wire Diameter mm Filtration Fineness um Weight / m2 kg
8x62 0.63x0.45 300 5.42
10x79 0.50x0.35 250 3.16
12x64 0.50x0.40 280 3.2
14x88 0.40x0.30 220 2.5
15x100 0.40x0.27 210 2.35
20x120 0.30x0.23 160 1.9
24x110 0.35x0.25 150 2.35
24x140 0.27x0.19 110 1.7
30x150 0.25x0.17 80 1.55
30x180 0.25x0.15 70 1.4
40x200 0.19x0.13 60 1.2
50x250 0.15x0.11 50 0.95
60x300 0.13x0.09 45 0.75
70x350 0.12x0.08 35 0.7
80x400 0.12x0.07 34 0.7
70x500 0.12x0.06 32 0.65
100x600 0.10x0.05 30 0.6


Dutch twilled weave Specifications:



Mesh Wire Diameter mm Filtration Fineness um
Weight
(kg/sq.m)
20x200 0.335x0.28 118 4.58
20x260 0.25x0.20 119 3.14
24x300 0.28x0.18 110 3.01
30x250 0.28x0.20 77 3.41
30x340 0.28x0.16 89 2.84
40x560 0.18x0.10 70 1.73
80x700 0.12x0.08 30 1.26
80x780 0.12x0.07 28 1.22
90x780 0.10x0.07 26 1.24
100x780 0.10x0.07 25 1.13
120x1100 0.07x0.05 18 0.86
165x800 0.07x0.05 25 0.58
165x1400 0.07x0.04 14 0.75
200x600 0.06x0.04 28 0.5
200x1400 0.06x0.04 12 0.72
200x1600 0.06x0.035 11 0.7
200x1800 0.06x0.03 10 0.7
250x2000 0.045x0.028 8 0.65
325x2300 0.035x0.026 5 0.57
325x2500 0.035x0.023 4 0.52
400x2800 0.03x0.018 3 0.46
400x3000 0.03x0.16 2. 0.43
400x3500 0.03x0.15 1
0.38


Materials:

304,304L,316,316L Stainless steel wire, Nickel wire, Brass wire, Low-Carbon Steel wire and Special Alloy wire.

Property:



This kind of woven wire mesh offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance.



Usage:



Dutch Woven Wire Cloth are extensively utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units, due to its stable and fine filtration capability.
