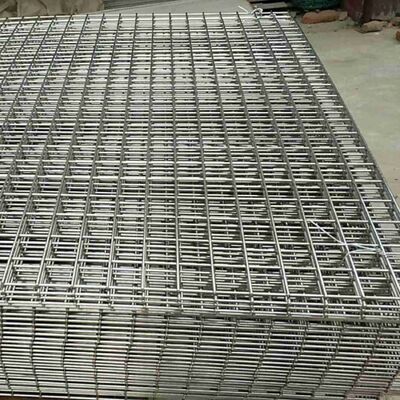

Welded Wire Mesh Fencing Panels
Product Details
| Product Name | SS Welded Wire Mesh | Material | SS304 Or SS316 |
|---|---|---|---|
| Hole Shape | Square Hole | Opening Size | 6", 5", 4", 3", 2", 1", Etc |
| Panel Size | 3Ft× 6Ft, 4Ft × 8Ft, 5Ft × 106Ft, Etc. Customized Size. | Wire Diameter | 1.2mm, Etc |
| Highlight | welded wire mesh fencing panels,SS welded wire mesh panels,welded wire mesh fence with warranty |
||
Product Description
Welded wire mesh panels are products made of high-quality low-carbon steel wire (or stainless steel wire) through straightening and row welding processes. After surface treatments such as galvanizing and PVC coating, they feature stable structure, corrosion resistance, durability and convenient construction, serving as a fundamental material in construction, agriculture, industry and other fields.
Core Classification
| Classification Dimension | Specific Types | Core Features |
|---|---|---|
| Material | Low-carbon steel mesh panels | Low cost, moderate strength, suitable for general protection and construction scenarios |
| Stainless steel mesh panels (304/316L) | Strong corrosion resistance, high temperature resistance, ideal for food, chemical and marine environments | |
| Surface Treatment | Electro-galvanizing (cold galvanizing) | Low cost, thin zinc coating, suitable for indoor or short-term protection use |
| Hot-dip galvanizing | Thick zinc coating, excellent corrosion resistance, service life of ≥10 years, applicable to outdoor or harsh environments | |
| PVC dipping/spraying | Rich color options (green, gray, blue, etc.), UV resistance, attractive appearance and durability | |
| Application | Construction mesh panels | Reinforcing mesh, insulation mesh, floor heating mesh with relatively thin wire diameter (0.5-3mm) |
| Protection mesh panels | Fencing, guardrails, cages with medium wire diameter (2.5-5mm) | |
| Heavy-duty mesh panels (gabion mesh) | Thick wire diameter (≥3mm), used for river slope protection and side slope reinforcement |
Common Specifications
Mesh Size: 12.7×12.7mm (Insulation Mesh), 25.4×25.4mm, 50×50mm, 100×100mm, etc.
Wire Diameter: 0.5mm - 6.0mm (regular), up to 12mm or more for heavy-duty models
Panel Size: Standard 1×2m, customizable up to 3×6m
Main Applications
Construction engineering (core application field)
Agriculture & animal husbandry
Industry & municipal engineering
Water conservancy & environmental protection projects
Home decoration & daily use
Packing:
Each roll with polyfilm with water proof paper, outside wooden pallets.
