Welded Wire Mesh

  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
  • Welded Wire Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Rolls
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C
Product Details
Product Name SS Welded Wire Mesh Material SS304 Or SS316
Hole Shape Square Hole Or Slot Hole Roll Size 36"×100ft, 48"×100ft, Etc
Panel Size 3ft× 6ft, 4ft × 8ft, 5ft × 10ft, 1m × 2m, 1.2m × 2.4m, 1.5m × 3m, 2m × 4m Color Bright Silver
Highlight

stainless steel welded wire mesh

,

welded wire mesh fencing

,

welded wire mesh panels
Leave a Message
Product Description

High-quality low-carbon steel wire, galvanized steel wire or stainless steel wire is adopted as the raw material, which is welded and formed by automatic precision electric welding equipment. It has firm welding points, flat mesh surface and uniform structure, and has multiple functions such as protection, isolation and load-bearing. It is widely used in construction, agriculture, industry, municipal administration, breeding and other fields, with outstanding cost performance. It can be customized according to customer needs to adapt to different scenarios.



Specifications:

Stainless Steel Welded Wire Mesh in Rolls
Mesh Size Wire Diameter
mm inch BWG gauge mm
6.4 1/4 24–22 0.56–0.71
9.5 3/8 23–19 0.64–1.07
12.7 1/2 22–16 0.71–1.65
19.1 3/4 21–16 0.81–1.65
25.4 × 12.7 1 × 1/2 21–16 0.81–1.65
25.4 1 21–14 0.81–2.11
38.1 1-1/2 19–14 1.07–2.11
25.4 × 50.8 1 × 2 17–14 1.47–2.11
50.8 2 16–12 1.65–2.77



Stainless Steel Welded Mesh Panels
Mesh Size Wire Diameter Panel Width & Length
12.7 mm 1/2" × 1/2" 1.0–2.0 mm



3 feet × 6 feet

4 feet × 8 feet

5 feet × 10 feet

1 m × 2 m

1.5 m × 3 m

2 m × 4 m
25.4 mm 1" × 1" 1.5–3.5 mm
38.1 mm 1-1/2" × 1-1/2" 2.0–5.0 mm
50.8 mm 2" × 2" 2.0–6.0 mm
76.2 mm 3" × 3" 3.0–7.0 mm
101.6 mm 4" × 4" 3.0–8.0 mm
127 mm 5" × 5" 4.0–9.0 mm
152.4 mm 6" × 6" 4.0–10.0 mm
Other panel sizes can also be made according to request.



Material:

Stainless Steel 304 and 316.



Features:

Environmentally friendly;

Elegant appearance;

Strong structure;

Easy to clean;

Non-toxic;

Excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistanc.



Main Application Scenarios:

Construction: Used for thermal insulation, plastering mesh (to prevent cracking), floor slab reinforcement, underfloor heating, and foundation pit protection. An indispensable auxiliary material complying with industry standards.

Agriculture: Fences for farmland, vegetable gardens, orchards (bird/animal protection), and breeding houses (chicken coops, duck coops, pig pens). Mesh sizes can be customized for different livestock.

Industry: Equipment protection, workshop/warehouse division, and mechanical safety barriers. Effectively separates areas, protecting personnel and equipment in factories and workshops.

Municipal & Civil: Community fences, park protection, road isolation, manhole cover guards, balcony railings, and window grilles. Combines protection and aesthetics for urban construction.

Other Uses: Art decoration, crafts, filtration (small mesh sizes), and temporary protection (bare wire).

Welded Wire Mesh 0

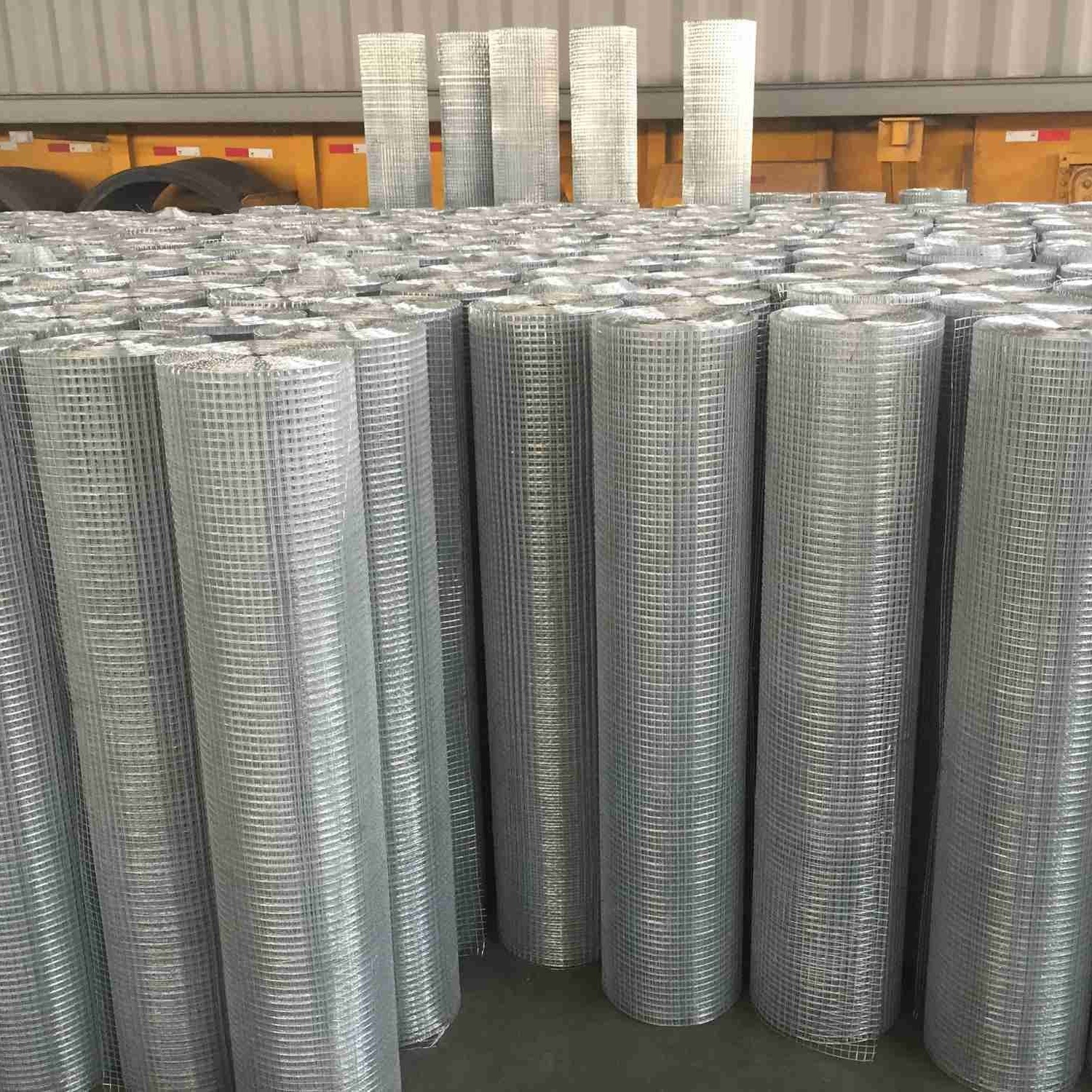

Packing:

in waterproof paper and film, then in pallets. Custom packing available at request.



Welded Wire Mesh 1Welded Wire Mesh 2

Tags:

SS304 SS Welded Wire Mesh

Square Hole SS Welded Wire Mesh

6.0mm stainless welded mesh
