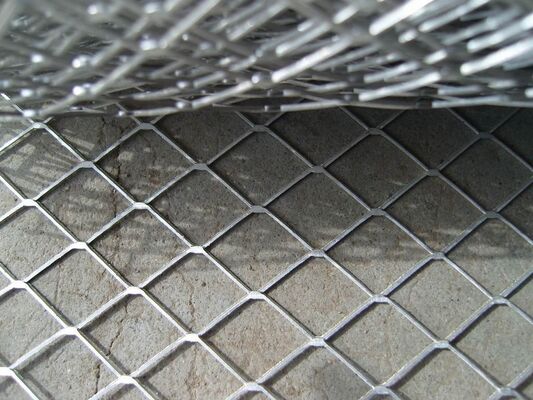

Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel

  • Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel
  • Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel
Place of Origin Hengshui,China
Minimum Order Quantity 20 Square meter
Price According to order quantity negotiated
Packaging Details In waterproof paper in rolls or in pallet. Custom packing available at request
Supply Ability 10000 Square Meter/Square Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized, Painting, Aluminum Application Protecting Mesh
Color Customized Sheet Thickness 0.5-8mm
Hole Shape Diamond
Highlight

stainless steel expanded metal mesh

,

bright surface diamond hole mesh

,

expanded metal screen mesh stainless
Leave a Message
Product Description
Stainless Steel Expanded Metal Wire Mesh/Diamond Wire Mesh,Bright Surface Stainless Steel Expanded Metal Wire Mesh

EXPANDED METAL MESH, EXPANDED METAL SHEET

Aluminum expanded metal mesh:
Material: aluminum sheet
Aperture:5x10cm
Thickness:4.0mm
Strand width:4.0mm
Expanded metal mesh
Long way of mesh(mm):12.5-200
Short way of mesh (mm):5-80
Thickness(mm): 0.5-8
Length(mm):600-4000 width (mm):600-2000
Variety: small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
Uses: used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Specification:

Sheet thickness(mm) Opening in width(mm) Opening in length(mm) strand Roll width(m) Roll length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26









Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel 0



LWD: diamond shaped hole, long way of the diagonal length

SWD: diamond shaped hole, short way of the diagonal length

Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

plate thickness: 0.4-8mm




Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel 1




Customize Design Anti-Corrosive Expanded Metal Mesh

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed



Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.




Expanded wire mesh application
Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel 2
Our other wire mesh series



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel 3

Product series

Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh



Bright Surface Expanded Metal Screen Mesh Diamond Hole Shape Stainless Steel 4
