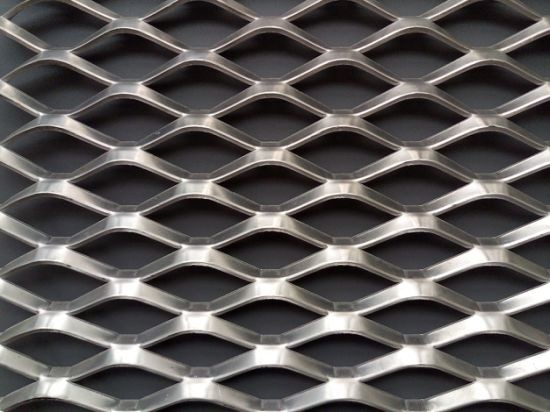

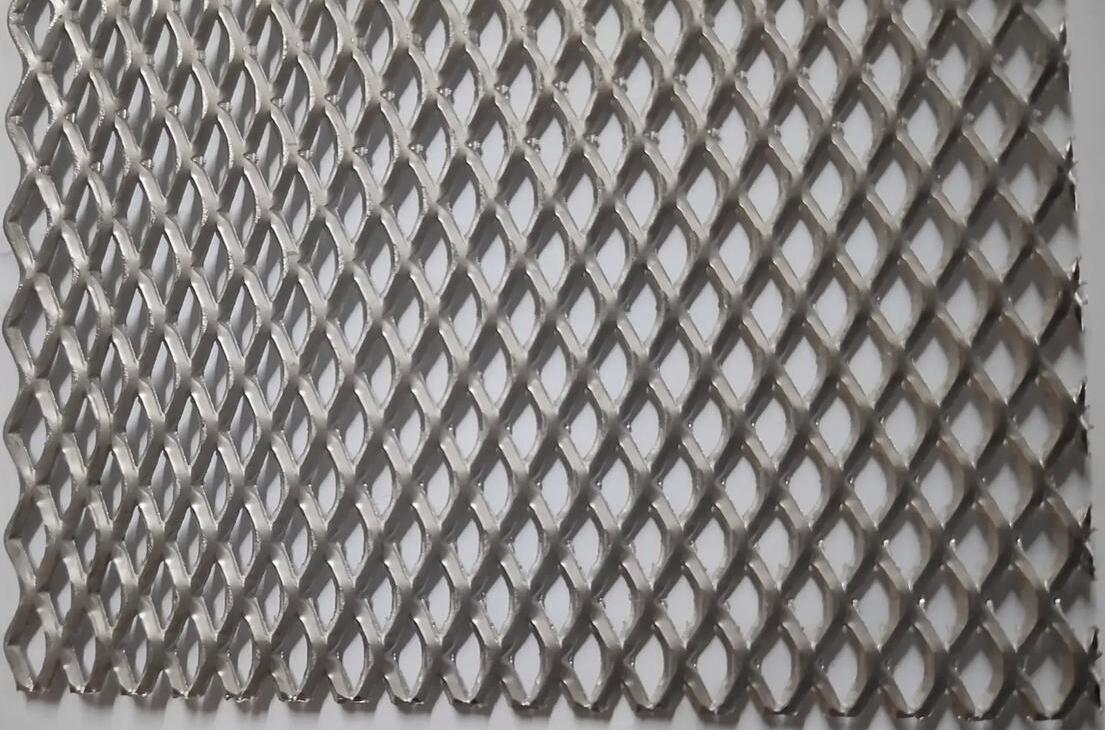

Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized

  • Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized
  • Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized
Place of Origin Hengshui,China
Minimum Order Quantity 20 Square meter
Price According to order quantity negotiated
Packaging Details In waterproof paper in rolls or in pallet. Custom packing available at request
Supply Ability 10000 Square Meter/Square Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized, Painting, Aluminum Application Protecting Mesh
Color Customized Sheet Thickness 0.5-8mm
Hole Shape Diamond
Highlight

aluminium expanded wire mesh screen

,

diamond hole metal sheet

,

customized expanded metal mesh
Leave a Message
Product Description
High Quality Low Price Expanded Aluminium Wire Mesh,Screen Panel Steel Aluminum Expanded Metal Sheet Wire Mesh
1. Material:
Aluminum Plate, thin Low Carbon Steel Plate, Stainless Steel Plate, Aluminum-magnesium Alloy Plate, Copper Plate, Nickel Plate;

2. Weaving and Characteristics: it is punched to mesh;
(1) Including: Aluminum plate mesh, Small steel plate mesh, Steel plate mesh and Stainless Steel plate mesh;
(2) According to the hole, it is divided into diamond, square, round, triangls, scale hole, it is strong and wear-resisting, artistic and tasteful;

3. Uses: Widely used in road, railway, civil building, water conservancy build, the protecting of all kinds of machines, electrical equipment, window and aquatic products breed;

4. Surface treatment: Hot-dip galvanized, Electro-galvanized, Anodizing, Anti-rust paint, etc.

5. Specification:
Specification of Expanded Metal Mesh
Tickness(mm) SWD(mm) LWD(mm) Wire stems width(mm) Width(m) Length(m) Weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4 60 120 4 2 7.5 4.0
4 80 180 4 2 10 3.0
4 100 200 4 2 12 2.5
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
5 75 150 5 2 10 3.0
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26

Products:









Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized 0



LWD: diamond shaped hole, long way of the diagonal length

SWD: diamond shaped hole, short way of the diagonal length

Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

plate thickness: 0.4-8mm




Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized 1




Customize Design Anti-Corrosive Expanded Metal Mesh

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed



Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.




Expanded wire mesh application
Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized 2
Our other wire mesh series



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized 3

Product series

Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh



Aluminium Expanded Wire Mesh Screen Metal Sheet Diamond Hole Shape Customized 4
