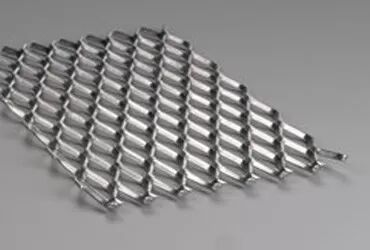

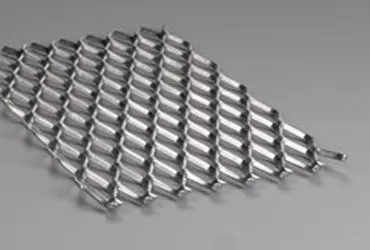

Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness

  • Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness
  • Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness
Place of Origin Hengshui,China
Minimum Order Quantity 20 Square meter
Price According to order quantity negotiated
Packaging Details In waterproof paper in rolls or in pallet. Custom packing available at request
Supply Ability 10000 Square Meter/Square Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized, Painting, Aluminum Application Protecting Mesh
Color Customized Sheet Thickness 0.5-8mm
Hole Shape Diamond
Highlight

durable expanded metal mesh curtain

,

aluminium expanded metal screen

,

expanded metal mesh 0.4-8mm thickness
Leave a Message
Product Description
Expanded Metal Mesh Curtain Wall Mesh /Aluminium Wire Metal Mesh,

Expanded metal mesh is Sheet metal after punching and shearing machine shearing tensile, together with the diamond mesh plate is expected to net products.It has more materials stainless steel,thin low carbon steel,brass plate,aluminum expanded metal mesh,etc.This product is everlasting.

Application of steel expanded mesh
It is used in Filters baskets,air filtration untis,Medicine,Machine guards,anima cages,the protecing of eletrical equipment window,Satety door&window,room dividers,Decorative celling,Highway fence,civil building,Concretereinforcement,Walkway,Anti-dazzle panels,Plaster trims,Fan covers.

1.the meterials :
stainless steel plate , aluminium plate,common carbon plate ,brass plate ,nickle plate,titanium plate ,iron plate ,al-mg alloy plat

2.variety:Small,Medium and heavy expanded metal mesh.
miniature steel nets :thickness:0.3mm-0.8mm,mesh1mm*0.75mm--200mm*100mm
small steel nets:lwd:3mm-40mm,swd:2mm-25mm,thickness:0.8mm-1.6mm
more style expanded metal specification as your requirment.

Specification of expanded metal mesh
1). Sw×Lw:12X8mm


Thickness(mm)		 Sw×Lw(mm) Rib Height Rib Distance(mm) Weight kg/m² Width (mm)
0.30 12×18 5 100 1.2 610
0.35 12×18 5 100 1.4 610
0.40 12×18 5 100 1.6 610
0.30 12×18 8 100 1.2 610
0.35 12×18 8 100 1.4 610
0.40 12×18 8 100 1.6 610


2). Sw×Lw:3.5x13mm


Thickness (mm)		 Sw×Lw(mm) Rib Height Rib Distance (mm) Weight kg/m² Width (mm)
0.30 3.5×13 4 60 1.27 610
0.35 3.5×13 4 60 1.49 610
0.40 3.5×13 4 60 1.70 610
0.30 3.5×13 4 60 1.27 750
0.35 3.5×13 4 60 1.49 750
0.40 3.5×13 4 60 1.70 750



3). Sw×Lw:20x9mm


Thickness (mm)		 Sw×Lw(mm) Rib Height Rib Distance (mm) Weight kg/m² Width (mm)
0.30 20×9 8 75 1.00 610
0.35 20×9 8 75 1.13 610
0.40 20×9 8 75 1.27 610

4). Sw×Lw:16x11mm


Thickness (mm)		 Sw×Lw(mm) Rib Height Rib Distance (mm) Weight kg/m² Width (mm)
0.30 16×11 8 150 0.88 610
0.35 16×11 8 150 1.18 610
0.40 16×11 8 150 1.46 610









Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness 0



LWD: diamond shaped hole, long way of the diagonal length

SWD: diamond shaped hole, short way of the diagonal length

Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.

plate thickness: 0.4-8mm




Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness 1




Customize Design Anti-Corrosive Expanded Metal Mesh

Features:

Weight is light enough for outer wall hanging

Anti-corrosive

Rainstorm or isolation won`t hurt

Visibility and colorful

Used as decorative mesh for building outer wall ,radiator cover mesh

Easily fabricated, finished, installed and formed



Application

expanded metal used with concrete in buildings and construction, maintenance of equipment,

making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,

studio,highway.




Expanded wire mesh application
Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness 2
Our other wire mesh series



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness 3

Product series

Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh



Durable Expanded Metal Screen Mesh Curtain Wall Aluminium 0.4-8mm Thickness 4
