Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material

  • Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material
  • Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material
Place of Origin Hengshui,China
Minimum Order Quantity 20 Square meter
Price According to order quantity negotiated
Packaging Details In waterproof paper in rolls or in pallet. Custom packing available at request
Supply Ability 10000 Square Meter/Square Meters per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Galvanized, Painting, Aluminum Application Protecting Mesh
Color Customized Sheet Thickness 0.5-8mm
Hole Shape Diamond
Highlight

galvanized aluminum expanded metal mesh

,

expanded metal screen curtain wall

,

building design expanded metal material
Leave a Message
Product Description

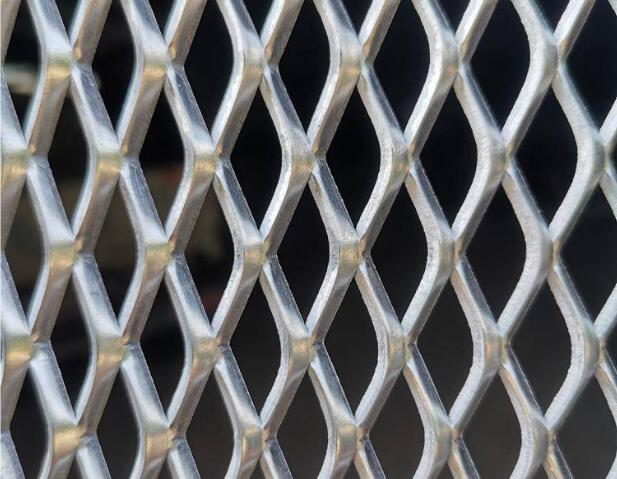

Aluminum Expanded Curtain Wall Metal Mesh,Building Design Material Expanded Aluminum Metal Mesh

Product Description

 We are specializing in expanded metal lath and accessories, including rib laths, diamond meshes, corner beads, plaster stop beads, weep screeds, high rib formworks and so on.

Regular Expanded Metal Lath is a multi-purpose plaster base and reinforcement, which has been used successfully for over 100 years. Expanded Metal Lath is an outstanding plaster base used for walls, ceilings and ceramic tile. The flat surface is easily cut and can be formed to fit curved surface.

Usage:
Expanded Steel/Aluminium Sheet can be used as steel reinforcement materials in petroleum, chemical industry and building decorations, fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding etc.

Material:
Expanded metal mesh can be made from a wide range ofmaterials, chiefly expanded steel mesh,
aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal.

Features:
Thickness available from 0.5mm to 8mm.

Weaving method:
stamping

Specifications of Aluminium Expanded Metal Mesh
Item
No.		 Thickness
of Aluminium Sheets
(mm)		 Nominal Size of Mesh Opening (mm) Standard Dimension of AL Expanded Mesh Calculated Weight
(kgs/m2)
SWD
(mm)		 LWD
(mm)		 Strand
(Strand Width, mm)		 LWM
(Width, mm)		 SWM
(Length, mm)
1 0.5 3 6 RC 100 RC 0.6
2 0.5 3.2 8 RC 200 2000 0.6
3 0.5 5 10 RC RC RC 0.6
4 0.5 6 12.5 RC 1800 3000 0.37
5 0.5 7 14 RC 1800 3000 0.37
6 0.5 8 16 RC 2000 3340 0.37
7 0.5 9 20 RC 2000 3340 0.37
8 0.5 10 25 1.12 2000 4000 0.3
9 0.5 12 30 1.35 1800 3600 0.3
10 0.8 10 25 1.12 RC RC 0.3
11 0.8 12 30 1.35 RC RC 0.48
12 0.8 15 40 1.68 RC RC 0.48
13 1 10 25 1.12 RC RC 0.48
14 1 12 30 1.35 RC RC 0.6
15 1 15 40 1.68 RC RC 0.6
16 1.2 10 25 1.13 RC RC 0.6
17 1.2 12 30 1.35 RC RC 0.73
18 1.2 15 40 1.68 RC RC 0.73
19 1.2 18 50 2.03 RC RC 0.73
20 1.5 15 40 1.69 RC RC 0.91
21 1.5 18 50 2.03 RC RC 0.91
22 1.5 22 60 2.47 RC RC 0.91
23 1.5 29 80 3.25 RC RC 1.21
24 2 18 50 2.03 1800 3600 1.21
25 2 22 60 2.47 2000 4000 1.21
26 2 29 80 3.26 2500 5000 1.52
27 2 36 100 4.05 RC RC 1.52
28 2 44 120 4.95 RC RC 1.82
29 3 36 100 4.05 RC RC 1.82
30 3 44 120 4.95 RC RC 1.82
31 3 55 150 4.99 2000 5000 1.47
2500 6400
32 3 65 180 4.60 2000 6400 1.14
2500 8000
33 4 22 60 4.50 1500 2000-3000 4.42
34 4 30 80 5 RC 2000-4000 3.60
35 4 38 100 6 2000 2000-4500 3.41
36 5 24 60 6 RC 2000-3000 6.76
37 5 35 80 6 RC 2000-4000 5.07
38 5 38 100 7 RC 2000-4500 5.05
39 5 56 150 6 RC 2000-6000 2.90
40 5 76 200 6 RC 2000-6000 2.13
41 6 32 80 7 RC 2000-4000 7.10
42 6 38 100 7 RC 2000-4500 5.98
43 6 56 150 7 RC 2000-6000 4.05
Note:
RC: Reasonably Customized.
Any other specifications of aluminium expanded metal mesh sheets with reasonable technical parameters, including LWM and SWM, are also available upon request.





Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material 0




Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful

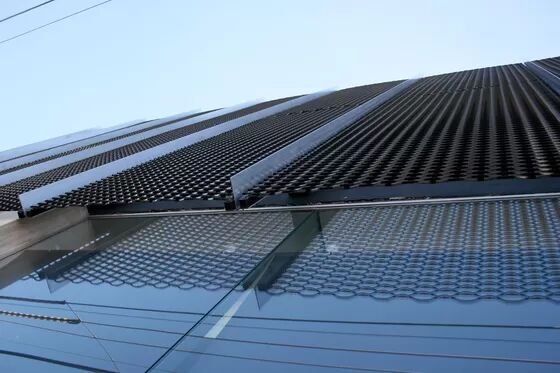

Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed



Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.




Expanded wire mesh application
Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material 1
Our other wire mesh series



Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.

Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material 2

Product series

Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh



Aluminum Expanded Metal Screen Mesh Curtain Wall Galvanized Building Design Material 3
