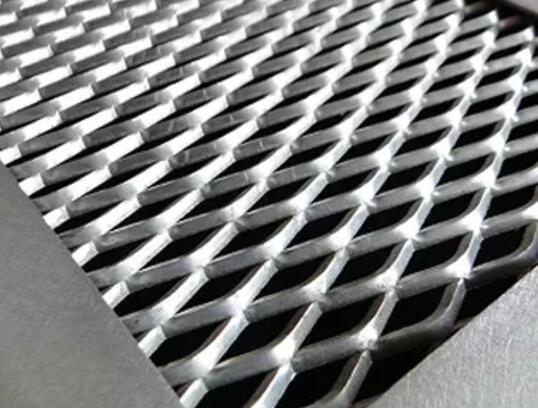

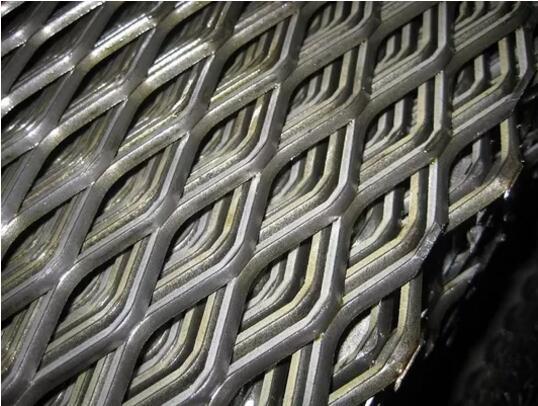

Aluminum Expanded Wire Mesh Panel Sheet 0.5-8mm Thickness Long Service Life
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Galvanized, Painting, Aluminum | Application | Protecting Mesh |
|---|---|---|---|
| Color | Customized | Sheet Thickness | 0.5-8mm |
| Hole Shape | Diamond | ||
| Highlight | aluminum expanded wire mesh panel,expanded metal mesh sheet 8mm thickness,long service life expanded wire mesh |
||
Product Description
Expanded Wire Mesh in Roll Size,Expanded Sheet Metal Wire Mesh,Aluminum Expanded Metal Wire Mesh Panel Sheet
Expanded metal sheet:
The material:stainless steel plate , aluminium plate,common carbon plate ,brass plate ,nickle plate,titanium plate ,iron plate ,al-mg alloy plat
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement
Packing: Moist-Proof Paper/Carton/Pallet
The material:stainless steel plate , aluminium plate,common carbon plate ,brass plate ,nickle plate,titanium plate ,iron plate ,al-mg alloy plat
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement
Packing: Moist-Proof Paper/Carton/Pallet
| standard expanded metal lath-Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness(mm) | Opening in Width (mm) | Opening in Length (mm) | Strand Width(mm) | Roll Width (m) | Roll Length (m) | Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
LWD: diamond shaped hole, long way of the diagonal length
SWD: diamond shaped hole, short way of the diagonal length
Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.
plate thickness: 0.4-8mm
Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed
Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
Expanded wire mesh application
Our other wire mesh series
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.
Product series
Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh
