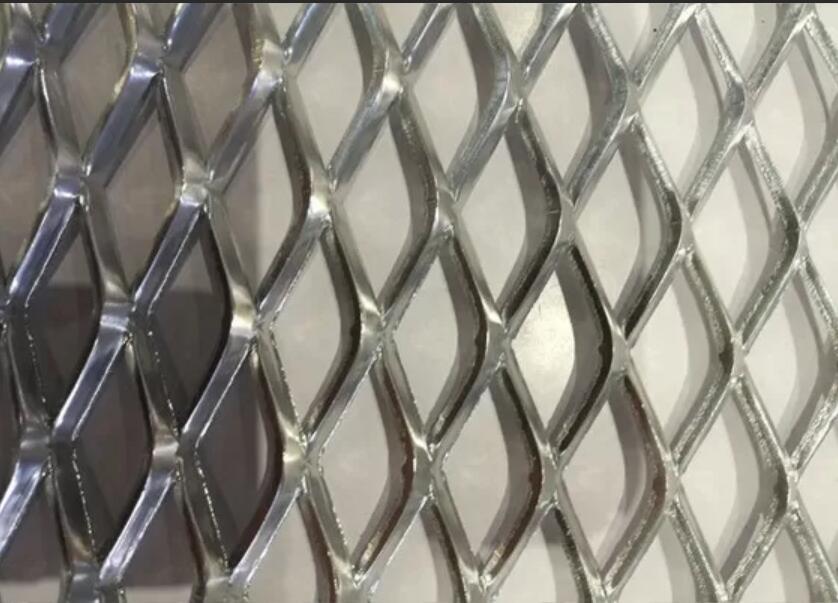

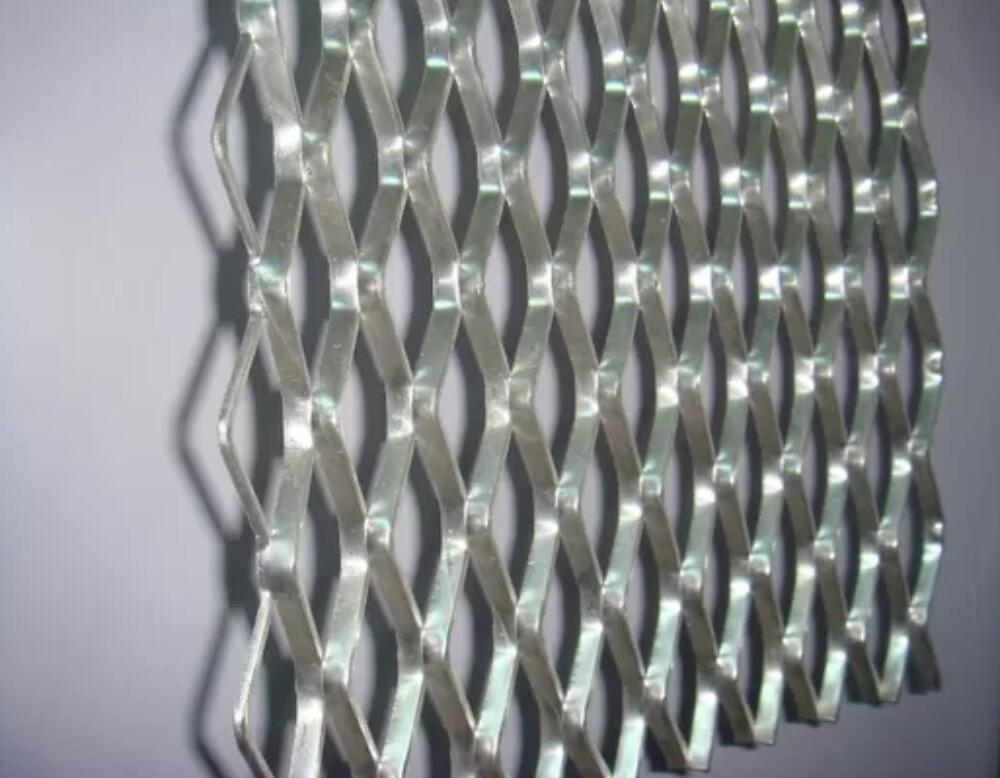

Galvanized Expanded Metal Screen Mesh Stainless Steel Diamond Hole Shape Customized
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Galvanized, Painting, Aluminum | Application | Protecting Mesh |
|---|---|---|---|
| Color | Customized | Sheet Thickness | 0.5-8mm |
| Hole Shape | Diamond | ||
| Highlight | galvanized expanded metal mesh,stainless steel diamond hole mesh,customized expanded metal screen |
||
Product Description
Stainless Steel Expanded Mesh /Stainless Steel Expanded Wire Mesh /Galvanized Expamded Metal Mesh
1. Product Introduction:
Expanded mesh, made of superior quality steel sheets by incising and simultaneously expanding, has features of beautiful appearance, lightness in weight and good ventilation etc.
Expanded mesh is widely used as isolation fences in industrial, building, household and so on.
Packing: in rolls or in wooden pallet.
Patterns of Expandeded Metal: Expandeded Metal can be processed in different opening shapes, typically as: standard rhombic shape; heavy type Tortoise-shaped Expandeded metal, also known as hexagonal shape; flattened; and some special shapes or designs.
Expandeded Metal can be made from aluminum, carbon steel, stainless steel, nickel, titanium, brass and other metal materials, with a thickness ranging from 0.04mm to 8mm, opening ranging from 0.8mmx1mm to 200mmx150mm.
2. Product Specification:
3. Product Application:
Used in a wide variety of industries and daily life, as gratings, laths, screens, fences, filtration media and building decoration materials and is widely used as isolation fences in industrial, building, household and so on.
Expanded metal usually used with concrete in buildings and construction maintence of equipment,making of art sand crafts,covering screen for first class sound case,fencing for super highway,studio and express way and so on.
Expanded mesh, made of superior quality steel sheets by incising and simultaneously expanding, has features of beautiful appearance, lightness in weight and good ventilation etc.
Expanded mesh is widely used as isolation fences in industrial, building, household and so on.
Packing: in rolls or in wooden pallet.
Patterns of Expandeded Metal: Expandeded Metal can be processed in different opening shapes, typically as: standard rhombic shape; heavy type Tortoise-shaped Expandeded metal, also known as hexagonal shape; flattened; and some special shapes or designs.
Expandeded Metal can be made from aluminum, carbon steel, stainless steel, nickel, titanium, brass and other metal materials, with a thickness ranging from 0.04mm to 8mm, opening ranging from 0.8mmx1mm to 200mmx150mm.
2. Product Specification:
Sheet Thickness(mm) |
Opening in Width (mm) |
Opening in Length (mm) |
Strand Width(mm) | Roll Width (m) |
Roll Length (m) |
Weight (kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
3. Product Application:
Used in a wide variety of industries and daily life, as gratings, laths, screens, fences, filtration media and building decoration materials and is widely used as isolation fences in industrial, building, household and so on.
Expanded metal usually used with concrete in buildings and construction maintence of equipment,making of art sand crafts,covering screen for first class sound case,fencing for super highway,studio and express way and so on.
LWD: diamond shaped hole, long way of the diagonal length
SWD: diamond shaped hole, short way of the diagonal length
Strand width:Steel plate mesh diamond hole edge Terrier is making a wide wire stem length of the metal plate.
plate thickness: 0.4-8mm
Customize Design Anti-Corrosive Expanded Metal Mesh
Features:
Weight is light enough for outer wall hanging
Anti-corrosive
Rainstorm or isolation won`t hurt
Visibility and colorful
Used as decorative mesh for building outer wall ,radiator cover mesh
Easily fabricated, finished, installed and formed
Application
expanded metal used with concrete in buildings and construction, maintenance of equipment,
making of arts and crafts, covering screen for first class sound case. Also fencing for super highway,
studio,highway.
Expanded wire mesh application
Our other wire mesh series
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.It have been 15 years that we manufacture and exported wire mesh product,our main product is stainless steel woven wire mesh,we keep the good manufacture technique of wire mesh product,to client orders,we will finish it within our shortest production time while keep mesh quality.
Product series
Stainless steel woven wire mesh
welded wire mesh
knitted wire mesh
expanded wire mesh
hexagonal wire mesh
