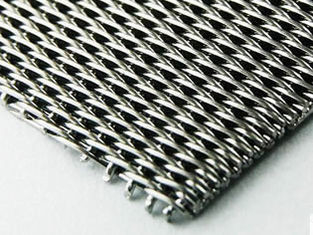

Stainless Steel Reverse Dutch Weave Wire Cloth Good Tensile Toughness

Stainless Steel Reverse Dutch Woven Wire Cloth SS wire cloth 304 316 310S

Stainless Steel Wire Mesh Reverse Dutch Woven Cloth for Plastic Extruder Screen is a kind of stainless steel woven wire mesh. the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves.

Reverse Dutch weave wire cloth is woven using two sizes of wire. Smaller wires are used in the warp direction and are woven with a larger wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.

There are two Weave types of reverse dutch weave mesh :

1. reverse Plain dutch weave mesh
   it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance
2. reverse Dutch Weave but Twilled Weave mesh:each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.

Specifications of Reverse Dutch Weave Wire Cloth / Wire Net :

Feature of Reverse Dutch Weave Wire Mesh:

• Resistant to abrasion
• Durability
• Sturdiness
• Plain/Twill weave stainless steel wire mesh has good performance at acid-resisting, alkali-resisting and anticorrosion.
• High strength, good tensiontoughness and abrasion performance in use.

Application of Reverse Dutch Weave Wire Mesh:

used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.

Main Features

1) Excellent heat resistance, ease of fabrication, most importantly the cleanability and hygiene properties.
2) Good acid and alkali resistance, corrosion resistance.
3) High strength, high tensile strength, wear resistance and durability.
4) Strong oxidation resistance, strong solder joint, bright surface.
5) Don't need special surface treatment, it is easy to maintain.

Packing

Please provide following information in order to make an offer.

• Material
• mesh size
• wire diameter
• length per roll
• width per roll

Thanks for review our website,we are looking forward our further business.
