High Filtration Reverse Dutch Weave Wire Cloth 304 316 Stainless Steel 130×32/0.2×0.4
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1 roll |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Dutch Wire Mesh | Material | Stainless Steel 304 316 |
|---|---|---|---|
| Max Counts | 130×32/0.2×0.4 | Wire Diameter | High Filtration |
| Application | Used For Sieving And Filtering In Acid And Alkali Enviorment | ||
| Highlight | High Filtration Dutch Weave Cloth,304 Dutch Weave Wire Cloth,316 stainless woven wire mesh |
||
Product Description

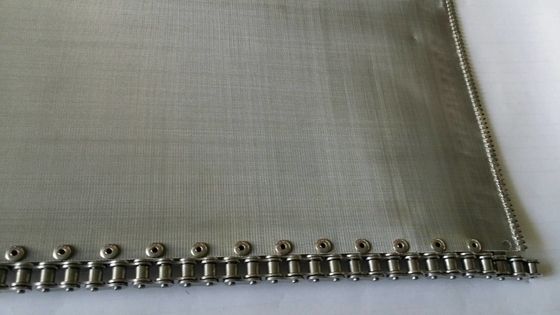

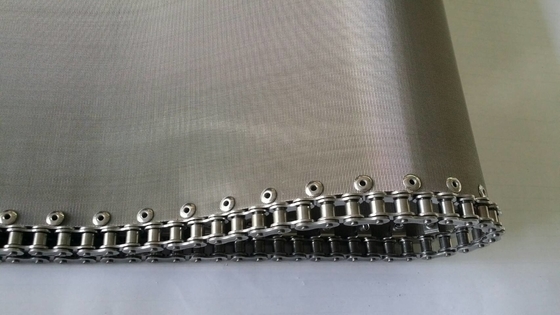

Reverse Dutch Weave Wire Cloth High Filtration 304 316 Stainless Steel 130×32/0.2×0.4
130×32/0.2×0.4, Reverse Dutch Stainless Steel Wire Mesh,high filtration condition used 304 316 stainless steel wire mesh
1. The mesh size ranges from 12x64 mesh to 325x2300 mesh.
2. Size and shape: roll shape (width 0.9m / 1m / 1,22m / 1.5m / 1.8m / 2m or at you reques), and can be made into square, round and other shapes.
3. Length:10m / 30m or at you request.
4.Packing: waterproof paper inside, plywood case outside.
5. Properties: acid and alkali resistance, high temperature resistance, tensile resistance, wear resistance.
6. Features: Precision mesh structure, uniform corrosion resistance, good durability, no deformation, smooth surface, high temperature resistance, low temperature resistance, high load strength
7. Purpose: Used for sieving and filtering in acid and alkali enviorment
Stainless Steel Dutch Weave Wire Mesh
| Weave type | Mesh count | Warp wire in Inches | Shute wire in Inches | Absolute Micron Rating | Nominal Micron Rating |
| PDW | 8X20 | 0.014 | 330-350 | 280 | 49 |
| PDW | 12X64 | 0.024 | 270-290 | 200 | 84 |
| PDW | 14X88 | 0.02 | 220-240 | 150 | 75 |
| PDW | 16X80 | 0.0196 | 225-235 | 140 | 79 |
| PDW | 24X110 | 0.015 | 115-125 | 80 | 55 |
| PDW | 24X128 | 2X0.010 | 110-120 | 75 | 34 |
| PDW | 30X150 | 0.009 | 110-112 | 63 | 33 |
| PDW | 30X150 | 2X0.009 | 95-113 | 60 | 33 |
| PDW | 40X200 | 0.007 | 70-75 | 55 | 27 |
| PDW | 50X250 | 0.0055 | 58-63 | 40 | 22 |
| PDW | 80X400 | 0.005 | 40-45 | 35 | 17 |
| TDW | 30X250 | 0.01 | 110-120 | 53 | 66 |
| TDW | 80X700 | 0.004 | 35-40 | 25 | 25 |
| TDW | 120X400 | 0.004 | 50-55 | 40 | 15 |
| TDW | 165X800 | 0.0028 | 25-28 | 15 | 14 |
| TDW | 200X600 | 0.0024 | 30 | 20 | 10 |
| TDW | 165X1400 | 0.0028 | 16-20 | 10 | 14 |
| TDW | 200X1400 | 0.0028 | 12-14 | 5 | 15 |
| TDW | 325X2300 | 0.0014 | 8-9 | 2 | 10 |
| TDW | 400X2800 | 0.0008 | 6-7 | 1 | 8 |
PDW: Plain dutch weave TDW: Twill dutch weave
Stainless Steel Reverse Dutch Weave Mesh
| Mesh / Inch | Wire Dia. (mm) | Width (mm) | Length / Roll (m) |
| 72/15 | 0.45/0.55 | 97-400 | 10-20 |
| 120/15 | 0.35/0.45 | 97-400 | 10-20 |
| 132/17 | 0.32/0.45 | 97-400 | 10-20 |
| 150/17 | 0.3/0.45 | 97-400 | 10-20 |
| 152/24 | 0.27/0.4 | 97-400 | 10-20 |
| 152/30 | 0.27/0.4 | 97-400 | 10-20 |
| 170/10 | 0.27/0.45 | 97-400 | 10-20 |
| 180/18 | 0.27/0.45 | 97-400 | 10-20 |
| 200/40 | 0.17/0.27 | 97-400 | 10-20 |
| 260/40 | 0.15/0.25 | 97-400 | 10-20 |
Application:
It is suitable for filtering of wire drawing machine, film casting machine and film coating machine in Austria, Germany and Japan.
Weaving Method
Packing
stainless steel mesh made in small rolls,outside wooden cases.
Corrosion resistance.Main Features
Anti-acid and alkali.
Anti-high temperature.
Good filter performance.
Long using life
Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.
Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.
Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.
In order to make an offer,please provide us below wire mesh specification information.
Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
