xProduct Details
| Features | Filter Discs Come With Various Micron Ratings, Allowing For Precise Filtration Suited To Specific Needs, Ensuring Optimal Particle Capture. | Product Name | Woven Mesh Filters |
|---|---|---|---|
| Material | Stainless Steel 304, 316, 304L, 316L, Galvanised Mild Steel, Etc | Weaving | Plain Weave, Twill Weave, Dutch Weave |
| Shape | Round, Rectangular, Square, Oval, Also Can Be Customized | Layers | Single Or Multilayers. |
| Application | Pharmaceutical Production, Chemical Industry, Etc | ||
| Highlight | Effective wire mesh filters,Brass Woven wire mesh filters,Woven stainless steel wire mesh filter |
||
Product Description
Stainless Steel Brass Woven Mesh Type Cost-Effective Wire Mesh Filters

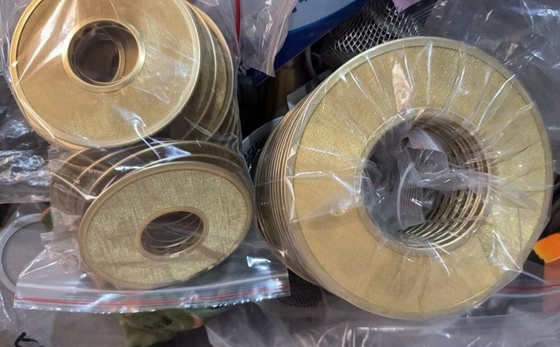

Mesh Filter Disc
Our Filter Discs are meticulously crafted to cater to a broad spectrum of filtration needs. These discs are highly effective in refining and purifying processes across various sectors, offering optimal performance in both liquid and air filtration.
Our products, crafted from high-quality materials such as stainless steel woven mesh, stainless steel sintered mesh, galvanized wire mesh, and brass wire cloth, are designed to efficiently remove impurities from fluids, air, or solids. The versatility of our filter discs is evident in their design options – available as single or multi-layer filter bags with either spot-welded or aluminum-framed edges. Our range of shapes includes circular, square, polygonal, and oval, catering to diverse industry needs. Some of our filter discs also feature multi-layered construction achieved through spot welding, enhancing their filtering capability. These features make our products indispensable in various sectors, including petroleum, chemical, metallurgy, food and beverage, medical, and automotive industries. We are committed to providing solutions that meet the critical absorption, evaporation, and filtration needs of our customers, ensuring quality and reliability in every product.
Specifications:
Type: Filter Disc
Hole Shape: Square or round
Thickness: 80-1000um
Length: 0.1m-1m
Width: 0.1m-1m
wire dia: 0.02mm-5mm
Weave style: woven, dutch weave and perforated metals
Mesh: 10-1500 mesh
surface: clean, tidy
Color: stainless steel
Material: stainless steel wire or stainless steel sheet
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|
| 6 × 6 | 0.900 | 3.31 |
| 10 × 10 | 0.56 | 1.98 |
| 20 × 20 | 0.4 | 0.9 |
| 30 × 30 | 0.28 | 0.57 |
| 40 × 40 | 0.224 | 0.411 |
| 50 × 50 | 0.20 | 0.31 |
| 60 × 60 | 0.16 | 0.263 |
| 80 × 80 | 0.14 | 0.178 |
| 100 × 100 | 0.112 | 0.142 |
| 120 × 120 | 0.09 | 0.122 |
| 150 × 150 | 0.063 | 0.109 |
Stainless steel wire:
SU302,304,316,304L,316L,310S,321 ,hastelloy wire, inconel wire, monel wire, incoloy wire, nickel wire etc.
Stainless Advantages:
Precision Manufacturing: Using advanced technology for a firm weave and regular mesh, ensuring reliable filtration.
Robust Performance: Resistant to friction, corrosion, and high temperatures, suitable for tough environments.
Efficient Filtration: Designed to effectively remove impurities from liquids or gases, ensuring process purity.
Easy Maintenance: Designed for straightforward cleaning, enhancing longevity and consistent performance.
Cost-Effective: Offers an economical filtration solution, especially with reusable materials.
Precision in Filtration: Capable of removing very fine particles, ideal for high-precision applications.
Robust Performance: Resistant to friction, corrosion, and high temperatures, suitable for tough environments.
Efficient Filtration: Designed to effectively remove impurities from liquids or gases, ensuring process purity.
Easy Maintenance: Designed for straightforward cleaning, enhancing longevity and consistent performance.
Cost-Effective: Offers an economical filtration solution, especially with reusable materials.
Precision in Filtration: Capable of removing very fine particles, ideal for high-precision applications.
Features:
Diverse Micron Ratings: Filter discs come with various micron ratings, allowing for precise filtration suited to specific needs, ensuring optimal particle capture.
Superior Filtration Quality: Boasting smooth surfaces and fine meshes, these discs guarantee exceptional filtration performance by effectively trapping even the smallest particles.
Multi-Layer Construction: Available in multiple layers, these discs provide enhanced mechanical strength coupled with fine filtration capabilities, ideal for more demanding applications.
No Media Migration: Expertly designed to prevent the migration of filtering media, ensuring consistent and reliable filtration without contamination.
Cost-Efficient: Designed to offer a low-cost solution to filtration needs, making them a budget-friendly choice for many industries.
Maximum Protection: Engineered to provide maximum protection against impurities, thereby safeguarding the integrity of the filtering process and the end product.
Minimal Pressure Drop: These discs are designed to minimize pressure drop across the filter, ensuring efficient operation and reduced energy consumption.
Reusability: Capable of being rinsed and reused repeatedly, these filter discs are not only economical but also environmentally friendly, reducing waste and operational costs.
Superior Filtration Quality: Boasting smooth surfaces and fine meshes, these discs guarantee exceptional filtration performance by effectively trapping even the smallest particles.
Multi-Layer Construction: Available in multiple layers, these discs provide enhanced mechanical strength coupled with fine filtration capabilities, ideal for more demanding applications.
No Media Migration: Expertly designed to prevent the migration of filtering media, ensuring consistent and reliable filtration without contamination.
Cost-Efficient: Designed to offer a low-cost solution to filtration needs, making them a budget-friendly choice for many industries.
Maximum Protection: Engineered to provide maximum protection against impurities, thereby safeguarding the integrity of the filtering process and the end product.
Minimal Pressure Drop: These discs are designed to minimize pressure drop across the filter, ensuring efficient operation and reduced energy consumption.
Reusability: Capable of being rinsed and reused repeatedly, these filter discs are not only economical but also environmentally friendly, reducing waste and operational costs.
Filtrations:
Chemical Industry: Used for purifying chemicals and protecting equipment from particulates.
Pharmaceutical Production: Essential in filtering process fluids to ensure medication purity.
Food and Beverage: Helps in clarifying liquids and oils, maintaining health standards.
Water Treatment: Filters contaminants from drinking and wastewater, supporting environmental health.
Petrochemical Processes: Removes impurities from oils and fuels, enhancing product quality.
Automotive Filtration: Used in vehicles for oil, fuel, and air filtration, crucial for performance.
Aerospace and Defense: Filters fluids in sensitive aerospace and defense systems.
Electronics Manufacturing: Ensures air and liquid cleanliness in semiconductor production.
Laboratory Research: Provides accurate, contamination-free results in research settings.

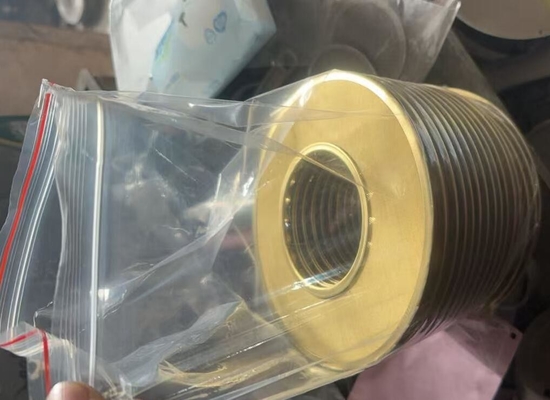

Packing:
