Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens

  • Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens
  • Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens
  • Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens
  • Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features It Can Resist To High Temperature, Corrosion, Rust, Acid And Alkali, Ensure Accurate Filtration Precision And Reuse After Washing. Product Name Brass/ Copper Filter Screen
Material Brass/ Copper Wire Technique Woven
Layers Single, Double And Multi-layers. Shape Round, Rectangular, Square, Oval, Also Can Be Customized
About Edge Stainless Steel, Aluminum, Copper, Rubber Edge Or Without Edge. Classification Filter Disc, Filter Tube, Compressed Filter, Filter Cap, Filter Basket, Filter Belt, Filter Element.
Standard ASTM Application It Widely Used In Pharmacy, Food Process, Chemical Industry, Chemical Fiber, Metallurgy, Textile Industry, Rubber And Paper Making.
Highlight

Woven Tubular wire mesh filters

,

Rimmed wire mesh filters

,

Circular Tensioned metal mesh filters
Leave a Message
Product Description

Woven Mesh Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens



Introduction

Woven mesh is a woven textile made of metallic material flexible enough to be woven into a variety of shapes and sizes.
All materials are woven from wire as thick as 1.6 diameter to 0.016 diameter - finer than a human hair.
Materials: Stainless steel or non-ferrous metal such as aluminium

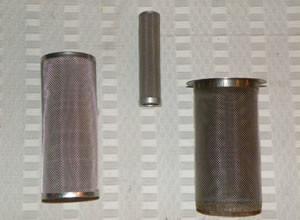

Tubular wire mesh filters


Tube filters with various sizes, can be manufactured from woven wire mesh and perforated plate.

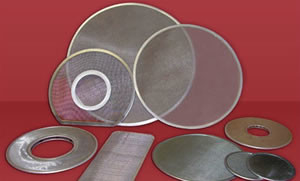

Rimmed Screen Packs


Manufactured mainly from woven wire mesh, various diameters can be ordered with rims made from aluminium, stainless steel or copper.
Specifications Required to order:
- OD & ID Diameter
- Mesh or micron size
- Aluminium, stainless steel rims or copper

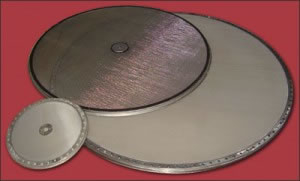

Circular Tensioned Screens


During the re-meshing process, we ensure optimum mesh tension which leads to better screening efficiency and longer screen life. These screens can be bolted or bonded.
Specifications Required to order:
- Mesh or micron size
- Bonded or bolted
- Frame size



Specs:



Mesh Wire D Aperture L Open Area Square Meter Weight
openings/inch mm inch mm inch % kgs lbs
5 1.00 0.0393 4.08 0.1606 64.50 2.50 5.50
5 0.50 0.0196 4.58 0.1803 81.28 0.62 1.37
6 0.90 0.0354 3.333 0.1312 62.00 2.43 5.34
6 0.50 0.0196 3.733 0.1469 77.77 0.75 1.65
8 0.90 0.0354 2.275 0.0895 51.34 3.24 7.12
8 0.50 0.0196 2675 0.1053 70.98 1.00 2.20
10 0.90 0.0354 1.640 0.0645 41.68 4.05 8.91
10 0.40 0.0157 2.140 0.0842 70.98 0.80 1.76
12 0.80 0.0314 1.316 0.0518 38.69 3.84 8.44
12 0.30 0.0118 1.816 0.0715 73.66 0.54 1.18
14 0.70 0.0275 1.114 0.0438 37.72 3.43 7.54
14 0.19 0.0074 1.624 0.0639 80.15 0.25 0.55
18 0.50 0.0196 0.911 0.0358 41.68 2.25 4.95
18 0.17 0.0066 1.241 0.0488 77.35 0.26 0.57
18 0.15 0.0059 1.261 0.0496 79.87 0.20 0.44
20 0.50 0.0196 0.770 0.0303 36.75 2.50 5.50
20 0.15 0.0059 1.120 0.0440 77.77 0.22 0.49
22 0.40 0.0157 0.754 0.0297 42.71 1.76 3.87
22 0.15 0.0059 1.004 0.0395 75.70 0.24 0.54
24 0.35 0.0137 0.708 0.0278 44.79 1.47 3.23
24 0.12 0.0047 0.938 0.0369 78.60 0.17 0.38
30 0.35 0.0137 0.496 0.0195 34.41 1.83 4.02
30 0.12 0.0047 0.726 0.0286 73.66 0.21 0.47
32 0.28 0.0110 0.513 0.0202 41.89 1.25 2.75
32 0.25 0.0098 0.543 0.0214 46.92 1.00 2.20
32 0.15 0.0059 0.643 0.0253 65.77 0.36 0.79
35 0.30 0.0118 0.425 0.0167 34.41 1.57 3.46
35 0.15 0.0059 0.575 0.0226 62.93 0.39 0.86
40 0.30 0.0118 0.335 0.0131 27.83 1.8 3.96
40 0.12 0.0047 0.515 0.0202 65.77 0.28 0.63
50 0.25 0.0098 0.258 0.0101 25.79 1.56 3.43
50 0.12 0.0047 0.388 0.0152 58.33 0.36 0.79
60 0.23 0.0090 0.193 0.0076 20.85 1.58 3.49
60 0.12 0.0047 0.303 0.0119 51.34 0.43 0.95
80 0.13 0.0051 0.187 0.0073 34.87 0.67 1.48
80 0.09 0.0035 0.227 0.0089 51.34 0.32 0.71
100 0.10 0.0039 0.154 0.0060 36.75 0.50 1.10
100 0.08 0.0031 0.174 0.0068 46.92 0.32 0.70
120 0.09 0.0035 0.121 0.0047 33.03 0.48 1.06
120 0.08 0.0031 0.131 0.0051 38.69 0.38 0.83
120 0.07 0.0027 0.141 0.0055 44.79 0.29 0.64
120 0.06 0.0023 0.151 0.0059 51.34 0.21 0.47
120 0.05 0.0019 0.161 0.0063 58.33 0.15 0.33
150 0.06 0.0023 0.109 0.0043 41.68 0.27 0.59
150 0.065 0.0025 0.104 0.0041 37.96 0.31 0.69
165 0.063 0.0024 0.090 0.0035 34.89 0.32 0.72
165 0.06 0.0023 0.093 0.0036 37.23 0.29 0.65
165 0.05 0.0019 0.103 0.0040 45.58 0.20 0.45
180 0.05 0.0019 0.091 0.0035 41.68 0.22 0.48
200 0.05 0.0019 0.077 0.0030 36.75 0.25 0.55
200 0.04 0.0015 0.087 0.0034 46.93 0.16 0.35
250 0.04 0.0015 0.061 0.0024 36.75 0.20 0.44
300 0.04 0.0015 0.044 0.0017 27.83 0.24 0.52
325 0.035 0.0013 0.043 0.0016 30.48 0.19 0.41
325 0.04 0.0015 0.038 0.0015 23.83 0.26 0.57
400 0.03 0.0011 0.033 0.0013 27.83 0.18 0.39
500 0.025 0.0009 0.025 0.0010 25.79 0.15 0.33

Features & benefits:



High temperature, corrosion, wear, rust, acid, alkali resistance.
Durability, good tensile strength, good rigidity.
Accurate filtration precision.
Reusable after washing.
Easy to install and clean.
Long service life.



Applications:



Filtration in pharmacy, food process, chemical industry, chemical fiber, metallurgy, textile industry, rubber, paper making, machinery, ship, automobile.
Filter liquid, granule, powder, air, petroleum, water.
Control the flow of lubrication oil, fuel oil.
Used in oilfield pipeline filter, refueling equipment, engineering machinery equipment fuel filter, water treatment industry equipment filter.
Used in air conditioning, smoke lampblack machine, dehumidifier, dust collector.
Filter tobacco ash in tobacco pipe.
Filter sugar, salt, animal fodder, fertilizer.





Circular Moven mesh screen

Moven mesh rimmed screen

Moven mesh screen











Packing:



Woven Type Tubular Wire Mesh Filters Rimmed Screen Packs Circular Tensioned Screens 3
