Strong Durable Perforated Mesh Plate From 0.5 Up To 20mm Thick From 0.50mm To 90mm Aperture
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Strong And Durable | Product Name | Perforated Plate |
|---|---|---|---|
| Material | Mild Steel, Stainless Steel | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
| Punched | Perforated | Thickness | 0.5 Up To 20mm |
| Aperture | 0.50mm To 90mm | Hole Pattern | 90°, 45°, 60° |
| Width | 1m, 1.22m, 1.5m To 4m | Application | Architectural |
| Highlight | Strong perforated mesh plate,Durable perforated mesh plate,0.5mm anti slip perforated metal sheet |
||
Product Description
Strong And Durable Perforated Plate From 0.5 Up To 20mm Thick From 0.50mm To 90mm Aperture
Perforated Mesh Introduction:
Perforated materials are used for screening and sorting. Manufacturing a perforated plate involves cold punching sheets with an arrangement of holes in various shapes, sizes and patterns.
Material:
Subject to the material type, thickness, aperture type and the size of the plate, we can produce:

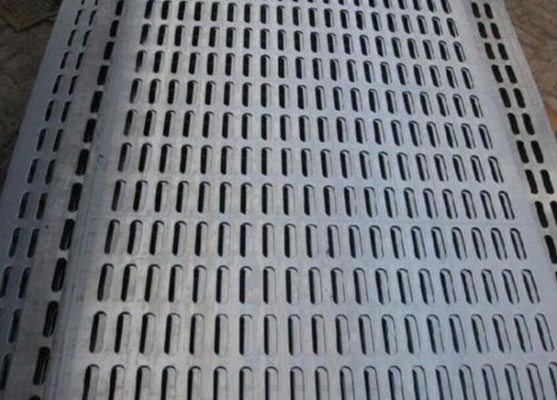

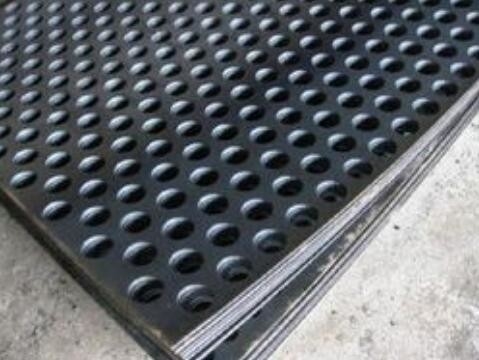

Perforated sheets manufactured with with a wide variety of patterns: Round, Square, Rectangular, Oblong, Hex, Slotted
Perforated plates from 0.5 up to 20mm thick
Aperture sizes varying from 0.50mm to 90mm
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Strong and durable
Smooth topped and resistant to winding, aging and corrosion
Locally manufactured
Available in almost any type of material e.g. high carbon, stainless steel, mild steel and other alloys
Available in a full range of thicknesses
Custom designed for your specific needs.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Sand and gravel
Mineral processing
Aggregate industry
Scalping
Sizing
Industrial applications
Architectural
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
How to order perforated plate?
Specify when ordering:
Sheet size dimension
Sheet thickness
Hole size
Pitch
Staggered or straight
With or without border
Width of border
Material
