Easily Customized Perforated Wire Mesh High Strength Mild Steel Aluminum Copper Brass Or Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Easily Customized | Product Name | Perforated Mesh |
|---|---|---|---|
| Material | Mild Steel, Stainless Steel | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
| Punched | Perforated | Thickness | 0.5mm To 8.0mm |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m |
| Length | 15m, 30m To 60m | Application | Vibrating Screen, Mining Industry, Etc |
| Highlight | customized perforated wire mesh,mild steel perforated wire mesh,high strength perforated aluminium mesh |
||
Product Description

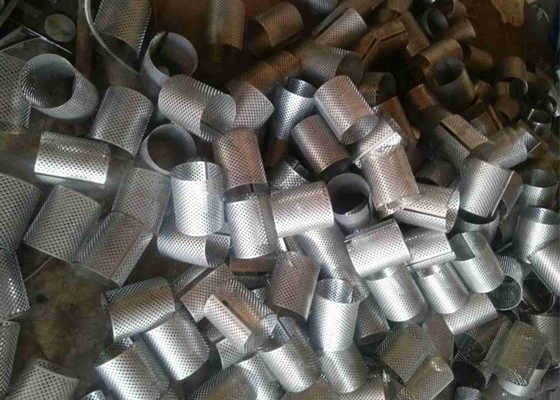

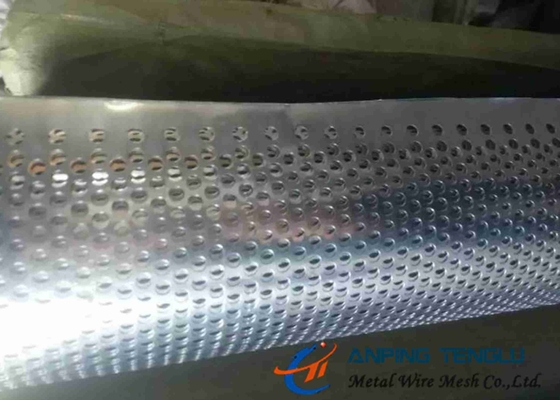

Easily Customized Perforated Metal Mesh High Strength Mild Steel Aluminum Copper Brass Or Stainless Steel
Perforated Mesh Introduction:
Perforated Metal is used in a wide variety of applications, only a few of which are shown here. We manufacture these high quality materials, and can deliver products in sheets, coils or fully fabricated custom parts. We want to help you get the job done right, on time, every time.
Perforated metal can be made in a variety of hole shapes, patterns, sizes, thickness, and finishes. Commonly made from materials such as mild steel, aluminum, copper, brass or stainless steel, it is a versatile material with numerous decorative, structural, and industrial applications. In addition, perforated sheet can be used to direct and control sound, heat, light, fluids, solids, and electromagnetic radiation.
Material:
High carbon steel. 0.8% to 2.0% carbon content. It has high strength but poor toughness. We usually use it to make vibrating screen and mine sieving mesh.
Medium carbon steel. 0.3% to 0.8% carbon content. It is used to manufacture stainless steel.
Low carbon steel. 0.05% to 0.30% carbon content. It has the shortest tempering time. It is soft, stamping resistant with good ductility.
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Attractive
Easily customized
Economical
Lightweight
Stocked in a variety of hole patterns, gauges, and materials
Total open area easily customized
Versatile
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Energy production.
Mining industry.
Steel production industry.
Waste processing.
Lorries, buses and train.
Cement production.
Automotive & Transport.
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
