Product Details
Features Various Materials And Easily Customized To Meet Your Needs. Product Name Expanded Metal Mesh
Material Stainless Steel, Steel, Copper, Brass, Aluminum, Aluminum Alloys, Etc. Surface Galvanized Or Pvc Coated
Hole Pattern Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes. Type XG Type Hex Type CW Heavy Type Light Gauge Diamond Type Light Gauge Hex Type
Width 0.6m To 2.2m Length 30m, 50m, Etc
Application Widely Used In Architectural And Commercial Industries.
Highlight

30m metal perforated mesh

,

Hex Heavy metal perforated mesh

,

Diamond stainless perforated mesh
Leave a Message
Product Description

Expanded Metal Mesh XG Type Hex Type CW Heavy Type Light Gauge Diamond Type Light Gauge Hex Type



Expanded metal sheet Mesh Introduction:



Expanded Metal is used in a wide variety of applications, only a few of which are shown here. We manufacture these high quality materials, and can deliver products in sheets, coils or fully fabricated custom parts. We want to help you get the job done right, on time, every time.
Expanded metal is made from a variety of materials such as black iron, aluminum with anodized or ordinary mill finish, brass, copper, stainless steel and galvanized steel. It is a cost-effective choice for many applications, because it can be manufactured with no loss of material. We can custom cut to size.



Specifications:

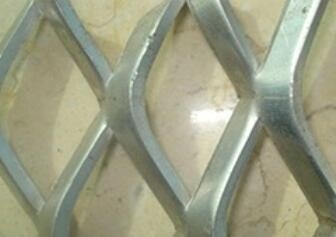

XG Type
XG expanded metal is a heavy duty standard with a diamond pattern, used for walkways, stair treads, platforms, safety guards, security installations, racks, pedestrian barriers, roofs fences, and heavy duty grilles.

Material Size LWM SWM Strand
4.5mm (3/16") 135.4mm 34mm 7.0mm
5.8mm (1/4") 135.4mm 34mm 7.0mm
5.8mm (1/4") 135.4mm 34mm 9.0mm
4.5mm (3/16") 101.6mm 36mm 7.0mm
5.8mm (1/4") 101.6mm 36mm 7.0mm
5.8mm (1/4") 101.6mm 36mm 9.0mm

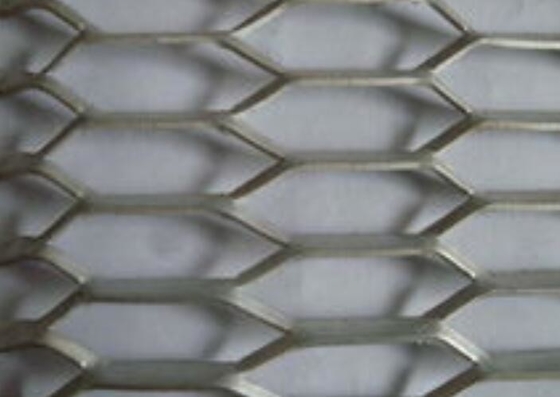

Hex Type
Hex expanded metal is a heavy-duty standard with hexagonal-shaped openings that produce a larger open area (around 80%) while maintaining a high weight to strength ratio. It is used for security fencing, machine guards, heavy duty shelving, steps and walkways.



Material Size LWM SWM Strand
4.5mm (3/16") 136.525mm (5-3/8") 38.1mm (1-1/2") 6.35mm (1/4")
5.8mm (1/4") 136.525mm (5-3/8") 38.1mm (1-1/2") 7.9mm (5/16")
4.5mm (3/16") 101.6mm (4") 38.1mm (1-1/2") 4.8mm (3/16")
5.8mm (1/4") 101.6mm (4") 38.1mm (1-1/2") 6.35mm (1/4")
5.8mm (1/4") 101.6mm (4") 38.1mm (1-1/2") 9.5mm (3/8")



CW Heavy
CW Type expanded metal is a versatile heavy-duty material used for catwalks, security, structural assemblies, and heavy material containers. It features a rigid diamond pattern, and is available in thicknesses from 4.5mm (1/4”) and 5.8mm (3/16”).



Material Size LWM SWM Strand
4.5mm (3/16”) 50.8mm (2") 25.4mm (1") 4.8mm (3/16”)
4.5mm (3/16”) 76.2mm (3") 38.1mm (1-1/2") 4.8mm (3/16”)
4.5mm (3/16”) 152.4mm (6") 69.85mm (2-3/4") 4.8mm (3/16”)
5.8mm (1/4") 50.8mm (2") 25.4mm (1") 6.35mm (1/4")
5.8mm (1/4") 50.8mm (2") 25.4mm (1") 4.8mm (3/16”)
5.8mm (1/4") 76.2mm (3") 38.1mm (1-1/2") 6.35mm (1/4")
5.8mm (1/4") 76.2mm (3") 38.1mm (1-1/2") 4.8mm (3/16”)
5.8mm (1/4") 120mm (4-3/4") 60mm (2-1/8") 6.35mm (1/4")
5.8mm (1/4") 152.4mm (6") 76.2mm (3") 6.35mm (1/4")





Light Gauge Diamond
Standard light gauge materials have a diamond shape, and are flexible and versatile. They can be used for fabrication, accessories, furniture, screening, ventilation, architectural decoration, and many other purposes. All light gauge materials can be supplied in standard (three-dimensional) or flattened versions, and some sizes are available in hex or arrowline patterns.



Material Size LWM SWM Strand
0.4mm (1/64") 3.2mm (1/8") 1.8mm (1/16”) 0.8mm (1/32”)
6.35mm (1/4”) 3.2mm (1/8”) 0.8mm (1/32”)
7.9mm (5/16”) 4mm (5/32”) 0.8mm (1/32”)
9.5mm (3/8”) 4.8mm (3/16”) 0.8mm (1/32”)
12.7mm (1/2”) 6.35mm (1/4”) 1.6mm (1/16”)
19.0mm (3/4”) 9.5mm (3/8”) 1.6mm (1/16”)
0.6mm (1/32") 3.2mm (1/8”) 1.8mm (1/16”) 0.8mm (1/32”)
6.35mm (1/4”) 3.2mm (1/8”) 0.8mm (1/32”)
7.9mm (5/16”) 4mm (5/32”) 0.8mm (1/32”)
9.5mm (3/8”) 4.8mm (3/16”) 0.8mm (1/32”)
12.7mm (1/2”) 6.35mm (1/4”) 1.6mm (1/16”)
19.0mm (3/4”) 9.5mm (3/8”) 1.6mm (1/16”)
25.4mm (1”) 12.7mm (1/2”) 1.6mm (1/16”)
0.7mm (1/32") 7.9mm (5/16”) 4mm (5/32”) 1.6mm (1/16”)
9.5mm (3/8”) 4.8mm (3/16”) 1.6mm (1/16”)
12.7mm (1/2”) 6.35mm (1/4”) 1.6mm (1/16”)
19.0mm (3/4”) 9.5mm (3/8”) 1.6mm (1/16”)
25.4mm (1”) 12.7mm (1/2”) 1.6mm (1/16”)
0.9mm (1/32") 7.9mm (5/16”) 4mm (5/32”) 1.6mm (1/16”)
9.5mm (3/8”) 4.8mm (3/16”) 1.6mm (1/16”)
12.7mm (1/2”) 6.35mm (1/4”) 1.6mm (1/16”)
19.0mm (3/4”) 9.5mm (3/8”) 1.6mm (1/16”)
25.4mm (1”) 12.7mm (1/2”) 1.6mm (1/16”)
1.2mm (3/64") 12.7mm (1/2”) 6.35mm (1/4”) 1.6mm (1/16”)
19.0mm (3/4”) 9.5mm (3/8”) 1.6mm (1/16”)
25.4mm (1”) 12.7mm (1/2”) 1.6mm (1/16”)
32.0mm (1-1/4”) 6.0mm (5/8”) 1.6mm (1/16”)
1.5mm (1/16") 12.7mm (1/2”) 6.35mm (1/4”) 2.4mm (3/32”)
19.0mm (3/4”) 9.5mm (3/8”) 2.4mm (3/32”)
25.4mm (1”) 12.7mm (1/2”) 2.4mm (3/32”)
32.0mm (1-1/4”) 16.0mm (5/8”) 2.4mm (3/32”)
38.0mm (1-1/2”) 19mm (3/4”) 2.4mm (3/32”)
50.8mm (2”) 25.4mm (1”) 2.4mm (3/32”)
2.0mm (5/64") 25.4mm (1”) 12.7mm (1/2”) 2.4mm (3/32”)
32.0mm (1-1/4”) 16.0mm (5/8”) 2.4mm (3/32”)
38.0mm (1-1/2”) 19mm (3/4”) 2.4mm (3/32”)
50.8mm (2”) 25.4mm (1”) 2.4mm (3/32”)
76.2mm (3”) 38.0mm (1-1/2”) 2.4mm (3/32”)
120mm (4-3/4”) 60mm (2-3/8”) 2.4mm (3/32”)
2.8mm (7/64") 38.0mm (1-1/2”) 19mm (3/4”) 3.2mm (1/8”)
50.8mm (2”) 25.4mm (1”) 3.2mm (1/8”)
76.2mm (3”) 38.0mm (1-1/2”) 3.2mm (1/8”)
120mm (4-3/4”) 60mm (2-3/8”) 3.2mm (1/8”)
3.5mm (9/64") 50.8mm (2”) 25.4mm (1”) 4.0mm (5/32”)
76.2mm (3”) 38.0mm (1-1/2”) 4.0mm (5/32”)
120mm (4-3/4”) 60mm (2-3/8”) 4.0mm (5/32”)
152.4mm (6”) 76.2mm (3”) 4.0mm (5/32”)
4.0mm (5/32") 50.8mm (2”) 25.4mm (1”) 4.8mm (3/16”)
76.2mm (3”) 38.0mm (1-1/2”) 4.8mm (3/16”)
120mm (4-3/4”) 60mm (2-3/8”) 4.8mm (3/16”)
152.4mm (6”) 76.2mm (3”) 4.8mm (3/16”)







Other specifications according to your requirements.



Galvanized Expanded Metal Mesh, SWD4mm*LWD: 8mm diamond shape, Thickness: 0.5mm

SWM (Short Way Mesh) – The shorter dimension of the diamond pattern, measured between the center of the bonds
LWM (long Way Mesh) – The longer dimension of the diamond pattern, measured between center of the bonds
SW (Strand Width) – The width of the strands that make up the pattern
TG (Thickness Gauge) – The material thickness before processing, and the thickness of the material if it is flattened.





Features of steel expanded metal sheet:



Can be flattened or three dimensional
Easy to cut, form, and fold
Excellent stability
Freedom of design
Homogeneous surface
Large selection of mesh sizes and styles
No loose wire ends
No welds
Slip-resistant surface



Applications of steel expanded metal sheet:



Raised expanded metal is widely used in architectural and commercial industries, other applications are as follows.

Stair treads.
Security mesh in construction elevator.
Grain dryer.
Trailer ramps.
Fan guard.
Shelving.





30m Xg Type Hex Type Cw Heavy Type metal perforated mesh Light Gauge Diamond Type 1



30m Xg Type Hex Type Cw Heavy Type metal perforated mesh Light Gauge Diamond Type 2

30m Xg Type Hex Type Cw Heavy Type metal perforated mesh Light Gauge Diamond Type 3

30m Xg Type Hex Type Cw Heavy Type metal perforated mesh Light Gauge Diamond Type 4



Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type



30m Xg Type Hex Type Cw Heavy Type metal perforated mesh Light Gauge Diamond Type 5



Our expanded metal mesh product list:



Raised Expanded Metal Sheet
Flattened Expanded Metal Sheet
Micro Expanded Metal

Mild Steel Expanded Metal Sheet
Steel Expanded Metal Sheet
Aluminum Expanded Metal Sheet
Stainless Steel Expanded Metal Sheet
Copper Expanded Metal Sheet
Expanded Metal Security Fence
Expanded Metal Isolation Fence
Decorative Expanded Metal Mesh
Expanded Metal Grating
Expanded Metal Grilles
Expanded Metal Filter Element
Expanded Metal Barbecue Grill
Expanded Metal Ceiling
Expanded Metal Chimney Cap
Expanded Metal Brick Mesh
Expanded Metal Corner Bead
Expanded Metal Corn Cage
Expanded Metal Office Supplies
Expanded Metal Facade
Expanded Metal Infill Panels
Trash Can
Cab & Truck Dividers
Machine Guarding
DVA Mesh
Expanded Metal Gate
Expanded Metal Furniture
Expanded Metal Bridge
Plaster Mesh
Interior Decoration
Dehydrator & Drying Rack
Landscape & Utility Trailers
