SS304 Security Screens Black Powder Coated 12mesh 0.035" Crimped Type Weave
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Excellent Resistance Against Acid, Alkali, Heat And Corrosion. | Product Name | Stainless Steel Security Screen |
|---|---|---|---|
| Material | Stainless Steel 304 | Weaving Type | Crimped Type Weave |
| Mesh Counts | 12mesh/inch | Wire Diameter | 0.85mm 0.035" |
| Color | Black | Width | Max 60" |
| Length | 120" | Application | Widely Used As The Insect Prevent Material For Doors And Windows In Houses, Office Buildings, Livestock Farms. |
| Highlight | Black Powder Coated Security Screens,12mesh Security Screens,0.035” Security Screens |
||
Product Description

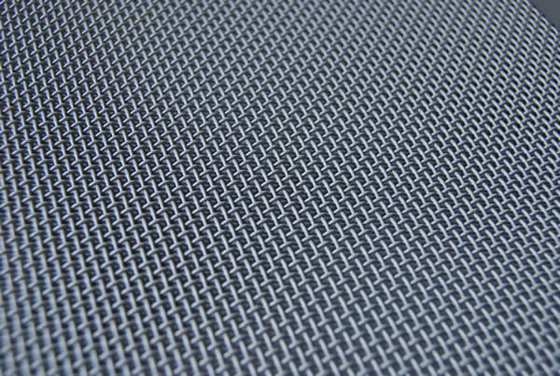

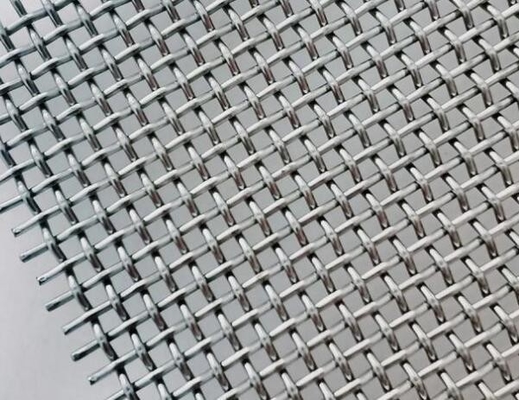

SS304 Security Screens Black Powder Coated 12mesh 0.035" Crimped Type Weave
Introduction:
Stainless steel window screen is a kind of stainless steel woven mesh, it is made of high quality stainless steel wire by woven machine, the product can be provided in rolls or panels.
Stainless steel window screens offer exceptional wear resistance and increased visibility due to the finer wire diameter. This insect mesh is much sturdier than standard insect screens, providing excellent airflow and meeting high standards for insect protection.
The Stainless Steel 304 Security Screen with 10 mesh and 0.035" wire diameter has specific characteristics that determine its strength, durability, and visibility.
Material: Stainless Steel 304 (SS304)
Mesh Count: 10 mesh (10 openings per linear inch)
Wire Diameter: 0.035 inches (0.89 mm)
Opening Size:
Formula: Opening Size = (1 inch ÷ Mesh Count) - Wire Diameter
Calculation: (1 ÷ 10) - 0.035 = 0.065 inches (1.65 mm)
Open Area:
Formula: Open Area % = (Opening² ÷ (Opening + Wire)²) × 100
Calculation: (0.065² ÷ (0.065 + 0.035)²) × 100 = 42.25%
Material: Stainless Steel 304 (SS304)
Mesh Count: 10 mesh (10 openings per linear inch)
Wire Diameter: 0.035 inches (0.89 mm)
Opening Size:
Formula: Opening Size = (1 inch ÷ Mesh Count) - Wire Diameter
Calculation: (1 ÷ 10) - 0.035 = 0.065 inches (1.65 mm)
Open Area:
Formula: Open Area % = (Opening² ÷ (Opening + Wire)²) × 100
Calculation: (0.065² ÷ (0.065 + 0.035)²) × 100 = 42.25%
Specifications:
Weave type: plain weave.
Material: stainless steel wire.
Surface treatment: powder coated.
Color: black, gray and white. Other colors are also available at your requests.
| Product Name: | Stainless Steel Security Screen |
| Material: | SS304 |
| Mesh Counts: | 12mesh/Inch |
| Wire Diameter: | 0.035" |
| Woven Type: | Crimped Type Weave |
| Surface Treatment: | Powder Coated |
| Width: | 60" |
| Length: | 120" |
| Features: | Excellent resistance against acid, alkali, heat and corrosion. |
| Usage: | Installed on the Doors and Windows |
Customization Options - Available in different mesh counts and wire diameters.
Surface Treatment:
Naturel surface of stainless steel or PVC coating or spray painting, the color is normally in black.
Weave Type: Plain Weave
Features:
Shear resistance. It can't be cut off or stabbed by a knife or machete even if you use all your power.
High tensile strength. It can't be damaged by intruders kicking. Thus your family and assets can be protected.
Rust and corrosion resistance. Because the safe mesh is made of 304 grade stainless steel and has a layer of black powder coating. Thus it can be used in very harsh condition.
Energy and cost saving. The mesh can absorb the strong sunlight and adjust the temperature of your house. Thus you don not need to always open the air conditioner and this will help you save energy and costs.
High durability coating. Our black powder coating adopts advanced technology and strongly adhere to our safe mesh. And at the same time, it can prevent the dusts from accumulating.
Good ventilation and cool appearance. The mesh is designed to let the breeze in and the black surface make it seems very cool.
Protect your privacy. From outside, the mesh can't be seen through. Thus you and your family can have a sounder sleep.
Quality meet Australia standard and passed through many tests. Such as knife shear test, salt spray test and impact test.
High tensile strength. It can't be damaged by intruders kicking. Thus your family and assets can be protected.
Rust and corrosion resistance. Because the safe mesh is made of 304 grade stainless steel and has a layer of black powder coating. Thus it can be used in very harsh condition.
Energy and cost saving. The mesh can absorb the strong sunlight and adjust the temperature of your house. Thus you don not need to always open the air conditioner and this will help you save energy and costs.
High durability coating. Our black powder coating adopts advanced technology and strongly adhere to our safe mesh. And at the same time, it can prevent the dusts from accumulating.
Good ventilation and cool appearance. The mesh is designed to let the breeze in and the black surface make it seems very cool.
Protect your privacy. From outside, the mesh can't be seen through. Thus you and your family can have a sounder sleep.
Quality meet Australia standard and passed through many tests. Such as knife shear test, salt spray test and impact test.
Application:
The mesh is really a firm and sturdy barrier. And it is widely used in security door screen, security window screen, swimming pool fence, patio enclosure, storm protection screen to prevent the intruders, burglars, storm or insects.
Security Window and Door Screen Mesh Product List:
Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh
Packing:
We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
