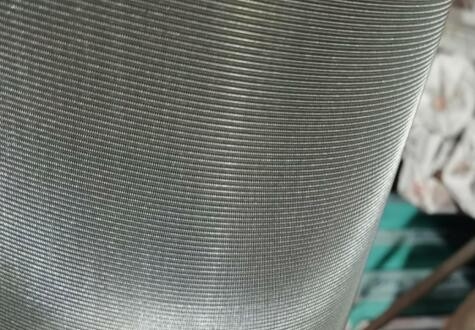

Stainless Steel Dutch Wire Mesh Resistant To Heat Acid Corrosion And Wear

Place of Origin	Hengshui,China
Brand Name	QIANPU
Minimum Order Quantity	1 roll
Price	Negotiable according to quantity of order
Packaging Details	1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Supply Ability	3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Resistant To Heat, Acid, Corrosion And Wear	Product Name	Stainless Steel Dutch Wire Mesh
Material	Stainless Steel 304	Width	1.2m,1.5m Or Customized
Length	30m Or Customized	Technique	Woven
Color	Silver	Application	Normally Used In The Applications Of Water Well Treatment And Sand Control System
Highlight	Wear Resistant Dutch Wire Mesh , Heat Resistant Dutch Wire Mesh , Acid Resistant Dutch Wire Mesh

Leave a Message

Product Description

Stainless Steel Dutch Wire Mesh Resistant To Heat, Acid, Corrosion And Wear

The plain Dutch weave is a type of weave with larger warp wires than the weft wires.

The weave is made up of a limited number of warp wires interwoven with the maximum number of weft wires, thereby producing a stable and strong cloth. The plain Dutch weave has a high filtering level and high pressure load resistance.

Dutch weave filter mesh provides superior filtration capabilities for a wide range of applications, including pressure, fuel and liquid filters for the aerospace, petrochemical, pharmaceutical, mining and waste water treatment industries.

Stainless steel is resistant to heat, acid, corrosion and wear. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine, etc., mainly used for gas, liquid filtration and other media separation.

Specifications:

Material: 304, 304L, 306, 306L

Type:Woven wire mesh

MOQ:1 roll

Technique:Plain, twill, plain dutch, twill dutch, crimped weave

Usage:Used for acid, alkali conditions screening and filtering, which is characterized by high strength, tensile, toughness and wear resistance, durability, etc

Packaging Details:Packed with plastic film then on the pallets and then in wooden box

Delivery Detail:10-15 days after received your deposit

Our Products	Stainless steel wire mesh
Wire Diameter	0.15 mm - 4.0 mm
Mesh from	1 - 635 mesh
Length of the roll	30m we also could manufacture as your demand
Width of the roll	0.5 m - 6 m
Characteristics	(1)It is easy to work,bright color, easy to maintain. (2)Difficult to corrosion, long life expectancy. (3)uniform mesh,flat surface,high quality.
Packing	1.LCL: packed with plastic film then on the pallets 2.FCL: Nude packing 3.Other special package according to customers' requirements.
Payment Terms	T/T(30% deposit, 70% balance against BL copy),or L/C, Paypal,Western Union,MoneyGram,Credit Card ,OA

Mesh/Inch (warpXweft)	Wire Dia.warpXweft(mm)	Normal size (um)	Effective area%	Cloth thicknes(mm)	Weight (kg/sq.m)
7×14	0.71×0.63	320	14.2	1.97	5.24
8×60	0.63×0.45	300	20.4	1.53	4.04
8×85	0.35×0.32	270	27.3	0.93	2.51
10×90	0.45×0.28	250	29.2	0.98	2.57
10×76	0.50×0.34	245	21.8	1.2	3.16
12×86	0.45×0.31	215	20.6	1.06	2.86
12×64	0.56×0.40	210	16	1.36	3.89
12×76	0.45×0.35	190	15.9	1.16	3.26
14×100	0.40×0.28	185	20.3	0.96	2.56
14×88	0.50×0.30	180	23	1.1	2.85
14×110	0.35×0.25	175	22.2	0.85	2.28
16×100	0.40×0.28	160	17.6	0.96	2.64
16×120	0.28×0.22	145	19.2	0.72	1.97
20×140	0.315×0.20	130	21.5	0.71	1.97
20×150	0.25×0.18	125	27	0.59	1.53
25×140	0.28×0.20	100	15.2	0.68	1.92
24×110	0.36×0.25	90	13	0.85	2.4
30×150	0.25×0.18	80	13.6	0.6	1.68
35×170	0.22×0.16	70	12.8	0.54	1.58
40×200	0.18×0.14	60	15	0.46	1.4
50×250	0.14×0.11	50	16	0.36	0.99
60×300	0.14×0.09	40	14.1	0.32	0.96

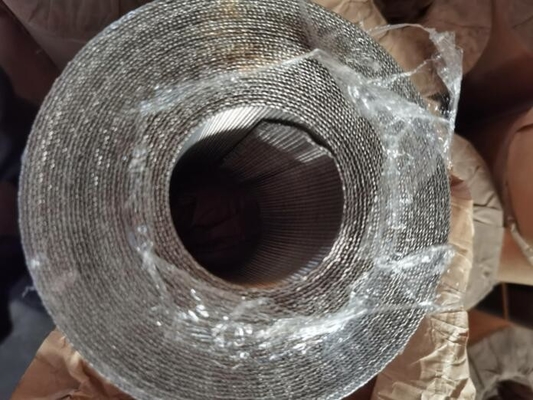

Packing:

stainless steel mesh made in small rolls,outside wooden cases.
Corrosion resistance.Main Features

Anti-acid and alkali.
Anti-high temperature.
Good filter performance.
Long using life

Advantages of Dutch wire mesh:

Superior filtration precision: Dutch wire mesh has a high level of filtration precision due to its unique weave pattern. It consists of tightly woven wires in the weft direction and a coarser mesh in the warp direction. This creates a dense filter structure that effectively captures and retains fine particles, making it ideal for applications requiring precise filtration.

Excellent strength and stability: Dutch wire mesh is known for its high tensile strength and stability. The wires are tightly woven and interlocked, providing durability and resistance to mechanical stress. This makes it suitable for applications where strength and stability are crucial, such as in industrial filtration systems or as support for heavy loads.

Enhanced flow control: The Dutch weave pattern of the mesh allows for controlled and uniform flow of liquids or gases. It offers excellent flow resistance and distribution, making it suitable for applications such as flow control screens, diffusers, and fluidized beds.

Resistance to clogging: The Dutch weave structure, with its larger warp wires and smaller weft wires, reduces the likelihood of clogging or blinding of the mesh. This allows for continuous and efficient filtration, even when dealing with materials that tend to cause blockages in other types of mesh.

Improved durability and longevity: Dutch wire mesh is typically made from high-quality stainless steel or other corrosion-resistant materials. This provides excellent resistance to corrosion, abrasion, and chemical attack, resulting in a longer lifespan and reduced maintenance requirements.

Wide range of mesh options: Dutch wire mesh is available in various mesh sizes and configurations to suit different filtration requirements. It offers flexibility in terms of aperture size, wire diameter, and mesh thickness, allowing for customization to specific applications.

Versatility in applications: Due to its precise filtration capabilities and durability, Dutch wire mesh finds applications in a wide range of industries. It is commonly used in areas such as oil and gas, petrochemical, pharmaceutical, food and beverage, water treatment, and many more.

Applications:

Mining, chemical, food, petroleum, medicine, etc., mainly used in gas, liquid filtration and other media separation
1.Petroleum industry
2.Pharmaceutical industry
3.Food industry
4.Water treatment industry
5.Chemical industry
6.Paper making industry
7.Plastic recycling industry

Delivery Time

We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit

If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.

Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.

In order to make an offer,please provide us below wire mesh specification information.

Material
Wire diameter
Mesh size
Wire mesh length
Wire mesh width
If it is possible,please also provide us weight per roll that you required.
