Coarse Mesh Extruder Screens In Stainless Steel With Resist To Stretch And Rust
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1000Pieces |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Delivery Time | 2 weeks |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Good Durability And Resistance To Corrosion And Rust | Product Name | Stainless Steel Coarse Mesh Extruder Screens |
|---|---|---|---|
| Material | Stainless Steel Wire Mesh | Edges | With Compressed Edges Or Without Borders |
| Technique | Plain Weave, Plain Dutch Weave Or Twilled Weave. | Layer | Single Layer Or Multi Layers. |
| Shape | Circle, Disc, Round, Oval, Rectangular, Cones, Or Other Special Shape, Spot Weld Packs | Useage | Filter Plastic, Chemical Fiber, Coating Materials, Oil, Etc. |
| Highlight | stainless steel coarse mesh extruder screens,stretch resist coarse mesh extruder screens,rust resist coarse mesh extruder screens |
||
Product Description
Coarse Mesh Extruder Screens In Stainless Steel With Resist To Stretch And Rust
Introduction

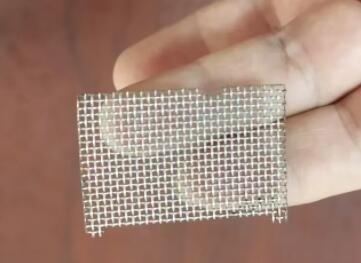

Stainless steel coarse mesh extruder screen is made of coarser wire to form a stable and good tensile strength of structure.
With excellent durability, stainless steel coarse mesh extruder screens are installed on extruder to filter rubber, plastic, hot melt adhesive, medicine, food.
Features:
Good durability and resistance to corrosion and rust.
Accurate size that can well fit the machine.
Can be designed into various shapes.
Applications:
Filter plastic, chemical fiber, coating materials, oil, etc.
Used in pharmaceutical and chemical industries, mining.
Specificationis:
Materials: 304, 302, 304L, 316, 310 stainless steel wire.
Mesh count: 10–50 mesh, or can be customized.
Thickness: 1–5 mm.
Shapes: round, ring, oval, tube, bowl, etc.
Processing methods: plain weave, twill weave, plain dutch weave, twill dutch weave.
Packing: wrapped with moisture-proof paper or plastic film and then put into cartons or pallets.
| Mesh/Inch | Wire Diameter (mm) | Aperture (mm) | Open Area (%) | Weight (kg/m2) |
| 200 × 200 | 0.05 | 0.077 | 60.6 | 0.24 |
| 200 × 200 | 0.06 | 0.067 | 52.7 | 0.35 |
| 250 × 250 | 0.03 | 0.072 | 49.8 | 0.11 |
| 250 × 250 | 0.04 | 0.062 | 36.9 | 0.2 |
| 270 × 270 | 0.035 | 0.059 | 60 | 0.16 |
| 270 × 270 | 0.04 | 0.054 | 57.4 | 0.21 |
| 300 × 300 | 0.03 | 0.055 | 57 | 0.13 |
| 325 × 325 | 0.035 | 0.0432 | 55.3 | 0.2 |
| 400 × 400 | 0.03 | 0.0335 | 52.7 | 0.18 |
| 500 × 500 | 0.025 | 0.0258 | 50.7 | 0.15 |
| 635 × 635 | 0.02 | 0.02 | 55 | 0.1 |

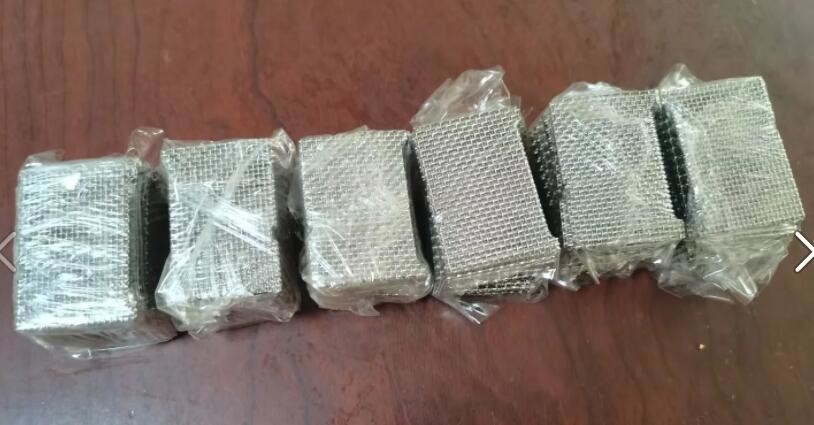

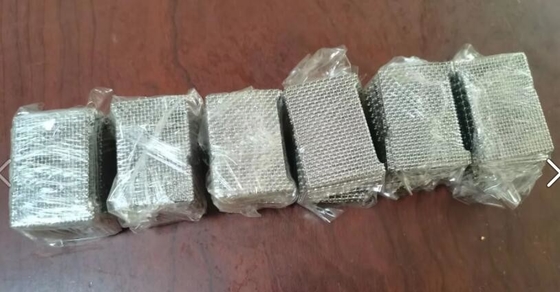

Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
