High Filtration Accuracy Stainless Steel Fine Mesh Extruder Screen
| Place of Origin | Anping of China |
|---|---|
| Brand Name | QIANPU |
| Certification | ISO |
| Minimum Order Quantity | 1000Pieces |
| Price | Negotiable according to quantity of order |
| Packaging Details | 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements. |
| Delivery Time | 2 weeks |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 3000 rolls per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | High Filtration Precision And Precise Size. | Product Name | Stainless Steel Fine Mesh Extruder Screen |
|---|---|---|---|
| Material | Stainless Steel Wire Mesh | Edges | With Compressed Edges Or Without Borders |
| Technique | Plain Weave, Plain Dutch Weave Or Twilled Weave. | Layer | Single Layer Or Multi Layers. |
| Shape | Circle, Disc, Round, Oval, Rectangular, Cones, Or Other Special Shape, Spot Weld Packs | Useage | Melt Such As Plastic, Rubber, Chemical Fiber, Hot Melt Adhesive, Coating Materials. |
| Highlight | high filtration accuracy mesh extruder screen,stainless steel mesh extruder screen,fine mesh extruder screen |
||
Product Description

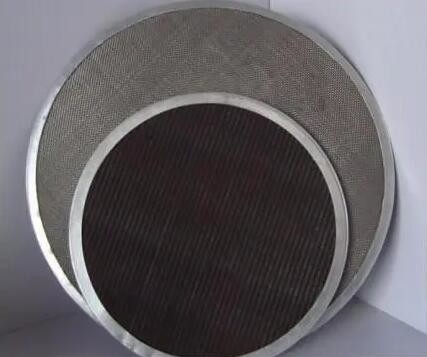

High Filtration Accuracy Stainless Steel Fine Mesh Extruder Screen
Introduction
Stainless steel fine mesh extruder screens are made from fine wire cloth that has high filtration precision. And it can be round, ring, oval or other shapes with or without frame edges.
As the key component of extruder, fine stainless steel extruder screen can keep impurities out from rubber, viscous or other liquid materials. And it also can be used in chemical and pharmaceutical industries.
Features:
High filtration precision and precise size.
Excellent resistance to rust, acid, alkali and abrasion.
Various shapes can be applied to different machines.
Applications:
Melt such as plastic, rubber, chemical fiber, hot melt adhesive, coating materials.
In chemical, medicine, food industries.
Specificationis:
Materials: 304, 302, 304L, 316 stainless steel wire.
Mesh count: 50–650 mesh, or finer mesh can be customized.
Thickness: 0.08–5 mm.
Shapes: round, ring, oval, tube, etc.
Processing methods: plain weave, twill weave, plain dutch weave, twill dutch weave.
Packing: wrapped with moisture-proof paper or plastic film and then put into cartons or pallets.
| Mesh/Inch | Wire Diameter (mm) | Aperture (mm) | Open Area (%) | Weight (kg/m2) |
| 200 × 200 | 0.05 | 0.077 | 60.6 | 0.24 |
| 200 × 200 | 0.06 | 0.067 | 52.7 | 0.35 |
| 250 × 250 | 0.03 | 0.072 | 49.8 | 0.11 |
| 250 × 250 | 0.04 | 0.062 | 36.9 | 0.2 |
| 270 × 270 | 0.035 | 0.059 | 60 | 0.16 |
| 270 × 270 | 0.04 | 0.054 | 57.4 | 0.21 |
| 300 × 300 | 0.03 | 0.055 | 57 | 0.13 |
| 325 × 325 | 0.035 | 0.0432 | 55.3 | 0.2 |
| 400 × 400 | 0.03 | 0.0335 | 52.7 | 0.18 |
| 500 × 500 | 0.025 | 0.0258 | 50.7 | 0.15 |
| 635 × 635 | 0.02 | 0.02 | 55 | 0.1 |
Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
