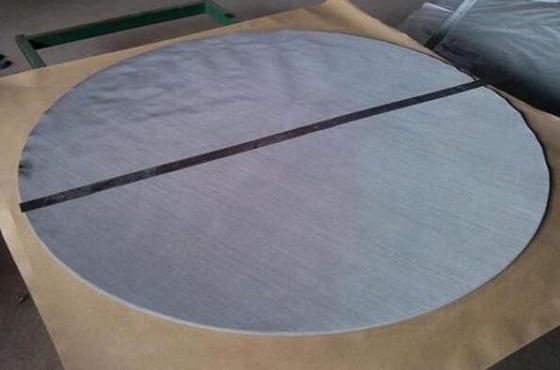

Stainless Steel 304 Extruder Screen Disc High Temperature Resistance Corrosion Resistance

  • Stainless Steel 304 Extruder Screen Disc High Temperature Resistance Corrosion Resistance
  • Stainless Steel 304 Extruder Screen Disc High Temperature Resistance Corrosion Resistance
  • Stainless Steel 304 Extruder Screen Disc High Temperature Resistance Corrosion Resistance
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1000Pieces
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Temperature Resistance And Corrosion Resistance Product Name Extruder Screen Discs Filter
Material Stainless Steel, Other Materials Can Also Be Supplied. Disc Diameter 20mm - 600mm.
Technique Plain Weave, Plain Dutch Weave Or Twilled Weave. Layer Single Layer Or Multi Layers.
Shape Round, Oval, Rectangular Or Other Special Designed Shapes. Useage Extruder Screen Is Widely Used In The Field Of Petroleum, Chemical Industry, Chemical Fiber, Rubber, Metallurgy, Medicine And Food Industries.
Highlight

High Temperature Resistance Extruder Screen Disc

,

Corrosion Resistance Extruder Screen Disc

,

Stainless Steel 304 Extruder Screen Disc
Leave a Message
Product Description

Stainless Steel 304 Extruder Screen Disc High Temperature Resistance And Corrosion Resistance



Introduction

Extruder screen disc can be made of various materials like stainless steel wire cloth, brass wire cloth, nickel cloth and black wire cloth. The screen discs are mainly used for extremely thin and fine extrusion process in industrial production. It can be made of various types and sizes. Single layer discs and spot weld multi layer packs are available.

Features:



Various forms and sizes.
High temperature resistance and corrosion resistance.
Withstand harsh work conditions.
Accurate filtration rating.
Long lasting life.



Applications:

Extruder screen disc is mainly used as the filter in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to separate impurity or liquid foam. Besides, it also can be used for the production of rubber and plastic extrusion.



Specificationis:

Material: stainless steel ansi304, ansi316, mild steel, stainless steel, brass, galvanized, aluminum alloy.
Weave types: plain weave, twilled weave, dutch weave.
Layer: single layer or multi-layer.
Shape: round, square, oval, kidney shape, and other special shapes.
Disc Diameter: 20mm - 600mm.
Multilayer discs by either spot welded or bound.



Mesh Wire Dia. mm Aperture Size Open Area %
10 × 10 0.711 1.829 mm 51.8
14 × 14 0.457 1.357 mm 55.9
16 × 16 0.457 1.131 mm 50.7
20 × 20 0.559 0.711 mm 31.4
20 × 20 0.457 0.813 mm 41
24 × 24 0.376 0.682 mm 41.4
30 × 30 0.376 0.531 mm 34.2
30 × 30 0.31 0.536 mm 40
40 × 40 0.274 0.361 mm 32.3
50 × 50 0.193 0.335 mm 43.6
60 × 60 0.193 0.230 mm 29.8
80 × 80 0.122 0.196 mm 37.9
100 × 100 0.102 0.152 mm 36
120 × 120 0.091 0.120 mm 31.8
150 × 150 0.071 0.088 mm 29.6
200 × 200 0.05 0.077 mm 36.76
250 × 250 0.04 0.062 mm 36.76
300 × 300 0.04 0.045mm 27.83
325 × 325 0.035 0.043mm 30.49
400 × 400 0.028 0.036mm 31.25
500 × 500 0.025 0.026mm 25.79



Hot specifications:

10-12 micron screen
Dutch weave screen of mesh size: 20 × 60 × 100 size.
Screen mesh, 120 × 120 mesh


extruder screens:
Plain steel, diam. 220mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 30 mesh (wire 0.30mm).
Plain steel, diam. 170mm, 40 mesh (wire 0.25mm).

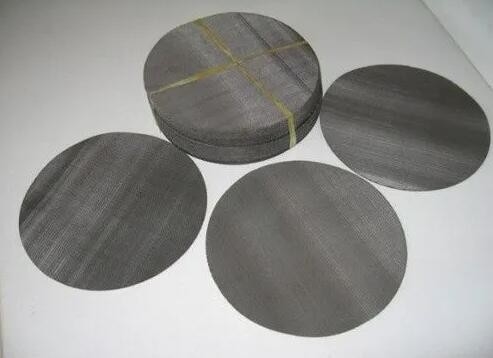

Many single layer extruder screen discs spread in the paper carton.



Packing:



35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
