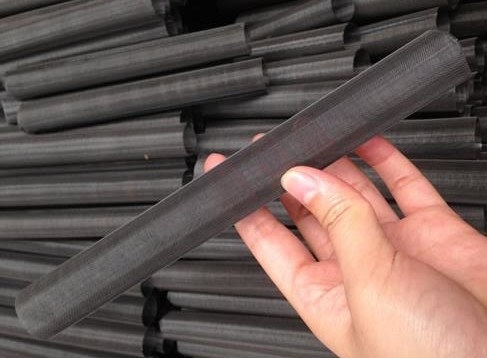

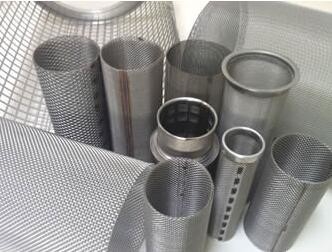

Cylindrical Extruder Screen Spot Welded Edges And Aluminum Framed Edges Single Layer Or Multilayer

  • Cylindrical Extruder Screen Spot Welded Edges And Aluminum Framed Edges Single Layer Or Multilayer
  • Cylindrical Extruder Screen Spot Welded Edges And Aluminum Framed Edges Single Layer Or Multilayer
  • Cylindrical Extruder Screen Spot Welded Edges And Aluminum Framed Edges Single Layer Or Multilayer
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1000Pieces
Price Negotiable according to quantity of order
Packaging Details 1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wooden bags+wooden case/carton pipes/wooden pallets. 3. also we can as per your requirements.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C
Supply Ability 3000 rolls per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Flexible, Used In Extrusion Process Or Filtration Process. Product Name Cylindrical Extruder Screen
Material Stainless Steel, Brass, Aluminum. Packs Diameter 20 Mm - 900 Mm
Technique Plain Weave, Plain Dutch Weave Or Twilled Weave. Layer Single Layer Or Multilayer Cylindrical
Shape Cylindrical Extruder Screen Useage Petrochemical, Pharmaceutical Rubber And Plastic Industries In Film Coating, Lamination And Filtration Process
Highlight

Spot Welded Edges Extruder Screen

,

Multilayer Extruder Screen

,

Aluminum Framed Extruder Screen
Leave a Message
Product Description

Cylindrical Extruder Screen Spot Welded Edges And Aluminum Framed Edges Single Layer Or Multilayer



Introduction

Cylindrical extruder screen is usually made in single layer or multilayer cylindrical screen pack, which is usually made in spot welded edge or aluminum alloy border edge. Due to its durability and great strength, the screen is more effective than others. It is widely used in various industries for different applications, mainly used for extrusion process including polyester, polyamide, polymer, plastic blown, varnishes, paints. Besides, cylindrical extruder screen also can be used to filter out sand as well as other fine particles. We can offer you various sizes exquisite cylindrical extruder screen and customized sizes according to your requirements.



Spot Welded Extruder Screen Packs:
This extruder screen packs are excellent used in all the extrusion and filtration process and assembled in reasonable sequence to assure the best application. The number and location of spot welds can be designed according to your special process.



Framed Extruder Screen Packs:
This kind of screen pack is firstly spot welded and then have an aluminum or stainless steel edge which can give the extruder screen pack extra rigidity and strength. So it can bear more weight than spot welded packs.

Features:



Very durable and strong.
Corrosion resistance.
Flexible, used in extrusion process or filtration process.
High flow rates at very low pressure drops.
Capacity of high dirt holding.
Wear-resisting, heat-resisting and alkali-resisting.
Packaged to customer specifications.



Applications:

Cylindrical extruder screen is mainly applied in petrochemical, pharmaceutical rubber and plastic industries in film coating, lamination and filtration process. Cylindrical extruder screen with multilayers also can be made into a pleated filter.



Specificationis:

Materials: stainless steel.
Long, short, single layer or multilayer cylindrical extruder screen supplied.
Spot welded edge or aluminum alloy border edge.



Mesh Wire Dia. mm Aperture Size Open Area %
10 × 10 0.711 1.829 mm 51.8
14 × 14 0.457 1.357 mm 55.9
16 × 16 0.457 1.131 mm 50.7
20 × 20 0.559 0.711 mm 31.4
20 × 20 0.457 0.813 mm 41
24 × 24 0.376 0.682 mm 41.4
30 × 30 0.376 0.531 mm 34.2
30 × 30 0.31 0.536 mm 40
40 × 40 0.274 0.361 mm 32.3
50 × 50 0.193 0.335 mm 43.6
60 × 60 0.193 0.230 mm 29.8
80 × 80 0.122 0.196 mm 37.9
100 × 100 0.102 0.152 mm 36
120 × 120 0.091 0.120 mm 31.8
150 × 150 0.071 0.088 mm 29.6
200 × 200 0.05 0.077 mm 36.76
250 × 250 0.04 0.062 mm 36.76
300 × 300 0.04 0.045mm 27.83
325 × 325 0.035 0.043mm 30.49
400 × 400 0.028 0.036mm 31.25
500 × 500 0.025 0.026mm 25.79





Hot specifications:
Cylindrical Wire Mesh 5 Layer, 40/60/80/100/40, ID 65mm, Length 118mm.
Stainless steel SUS304 wire mesh filter, Cylindrical shape (2 layers).
ID 40mm × 115mm(L): Mesh 40 & 60.
ID 43mm × 115mm (L): Mesh 60 & 80.
Stainless steel SUS304 wire mesh filter, Cylindrical shape (3 layers).
ID 58mm × 150mm (L): Mesh 20, 40 & 60.
ID 68mm × 150mm (L): Mesh 20, 40 & 60.











Packing:



35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
